VigilLink VLIP-SDCPSC-TRX SDVoE 10G Copper Transceiver with Video Wall and Multiview

The VLIP-SDCPSC-TRX combines an SDVoE encoder and decoder in one 10G copper unit, transmitting and receiving simultaneously with video wall and multiview processing. One part number covers both ends of a link and both roles in a matrix.

Video is HDMI 2.0 at 4K@60Hz 4:4:4 with HDCP 2.2 and HDR to 4:2:0 12-bit, distributed losslessly with a local HDMI loop-out. Point-to-point reach is 328 feet (100 meters) over Cat6a/7 at zero-frame latency with seamless switching. USB HID extension for keyboard and mouse switches between LEX and REX roles, alongside independent analog audio, bidirectional IR, and RS-232.

Output Video Resolutions	Ethernet output: Same as Input Video Resolutions table above
End-to-End Latency	Zero-frame latency

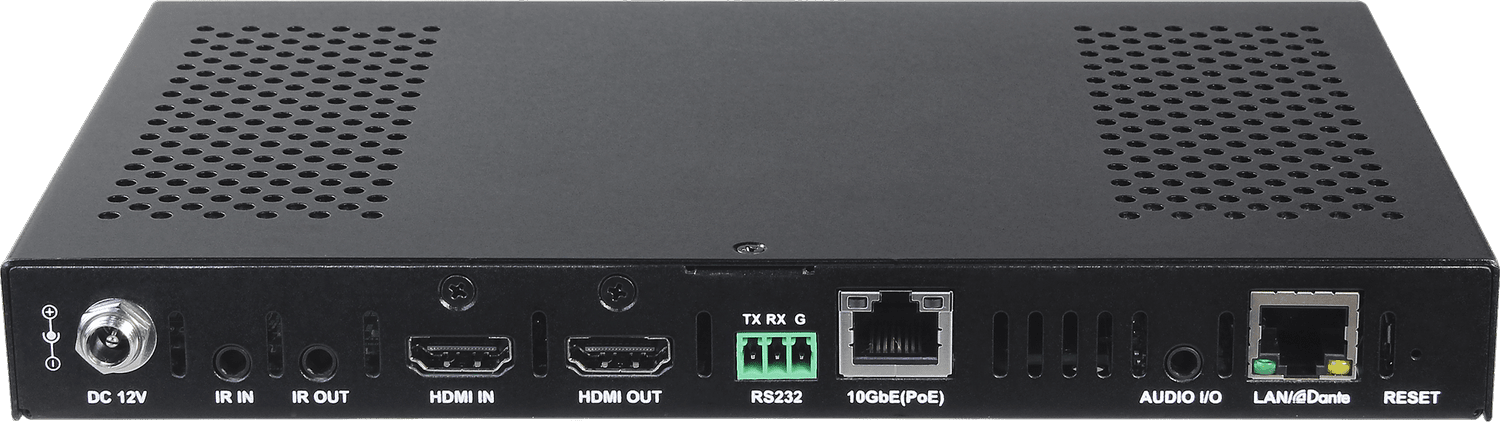

Input Video Port	1 x HDMI, 1 x RJ45 (10GBase-T)
Input Audio Port	1 x HDMI, 1 x RJ45 (10GBase-T), 1 x 3.5mm jack
Output Video Port	1 x HDMI, 1 x RJ45 (10GBase-T)
Output Audio Port	1 x 10G BASE-T port; 1 x 3.5 mm jack
Input Audio Format	HDMI/10GBase-T/10GBase-SR: LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz, Dolby True HD, DTS-HD Master, Dolby Digital AC-3, DTS version 1; 3.5 mm jack: Unbalanced stereo audio
Output Audio Format	HDMI/10GBase-T/10GBase-SR: LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz, Dolby True HD, DTS-HD Master, Dolby Digital AC-3, DTS version 1; 3.5 mm jack: Unbalanced stereo audio
