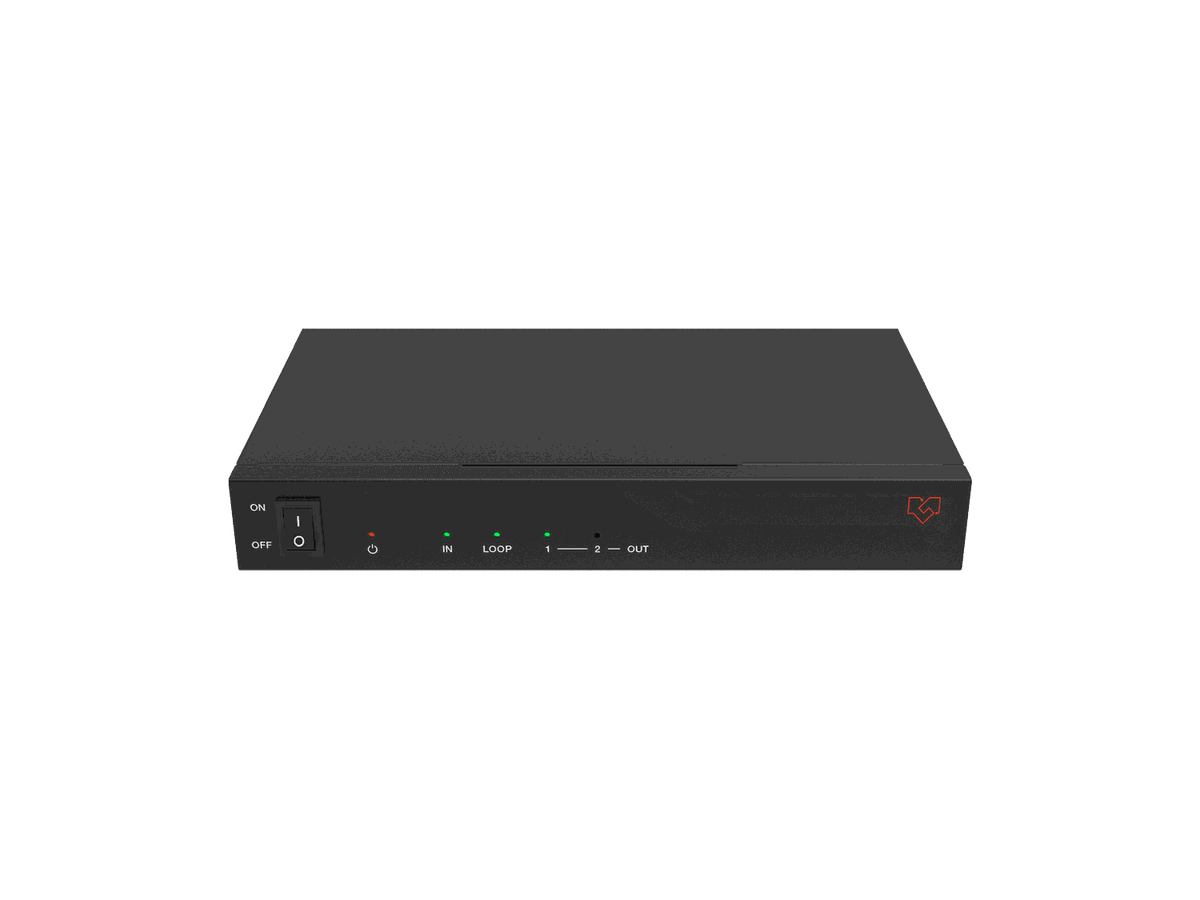

VigilLink VLSP-12CTH20 1x2 HDMI 2.0 Splitter over CAT with Loop Out

The VLSP-12CTH20 sends one HDMI source to two remote displays over Cat6, Cat6a, or Cat7 cabling at full 18Gbps and up to 4K@60Hz 4:4:4, with a local HDMI loop output for monitoring at the source end.

It carries one HDMI input, one HDMI loop output, and two CAT outputs. HDR, HDR10+, HLG, and Dolby Vision all pass through, and the unit is HDMI 2.0b, HDCP 2.2, and HDCP 1.x compliant.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2/1.x
Video Bandwidth	594MHz/18Gbps
Video Resolution	Input: 480i ~1080P50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz Loop Out: 480i ~1080P50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
Input	1xHDMI Type A (19-pin female)
Output	1 x HDMI LOOP OUT [Type A, 19-pin female] 2 x CAT OUTPUT [RJ45, 8-pin female] 1 x COAX AUDIO OUT [RCA] 1 x L/R AUDIO OUT [3.5mm Stereo Mini-jack]
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Analog Audio Formats	PCM 2.0CH
