VigilLink VLSP-14CTH20 1x4 HDMI 2.0 Splitter over CAT

The VLSP-14CTH20 sends a single HDMI source to four remote displays at up to 4K@60Hz 4:4:4 and 18Gbps, with one HDMI loop output and four CAT outputs.

Each leg extends up to 35 meters at 4K@60Hz, 50 meters at 4K@30Hz, or 60 meters at 1080p@60Hz over one Cat6, Cat6a, or Cat7 cable. One-way IR control pass-through, audio de-embedding, and HDR, HDR10+, HLG, and Dolby Vision support are all included under HDMI 2.0b with HDCP 2.2 and 1.x.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2/1.x
Video Bandwidth	594MHz/18Gbps
Video Resolution	Up to 4k2k@60Hz 4:4:4
Input	1x HDMI Type A [19-pin female]

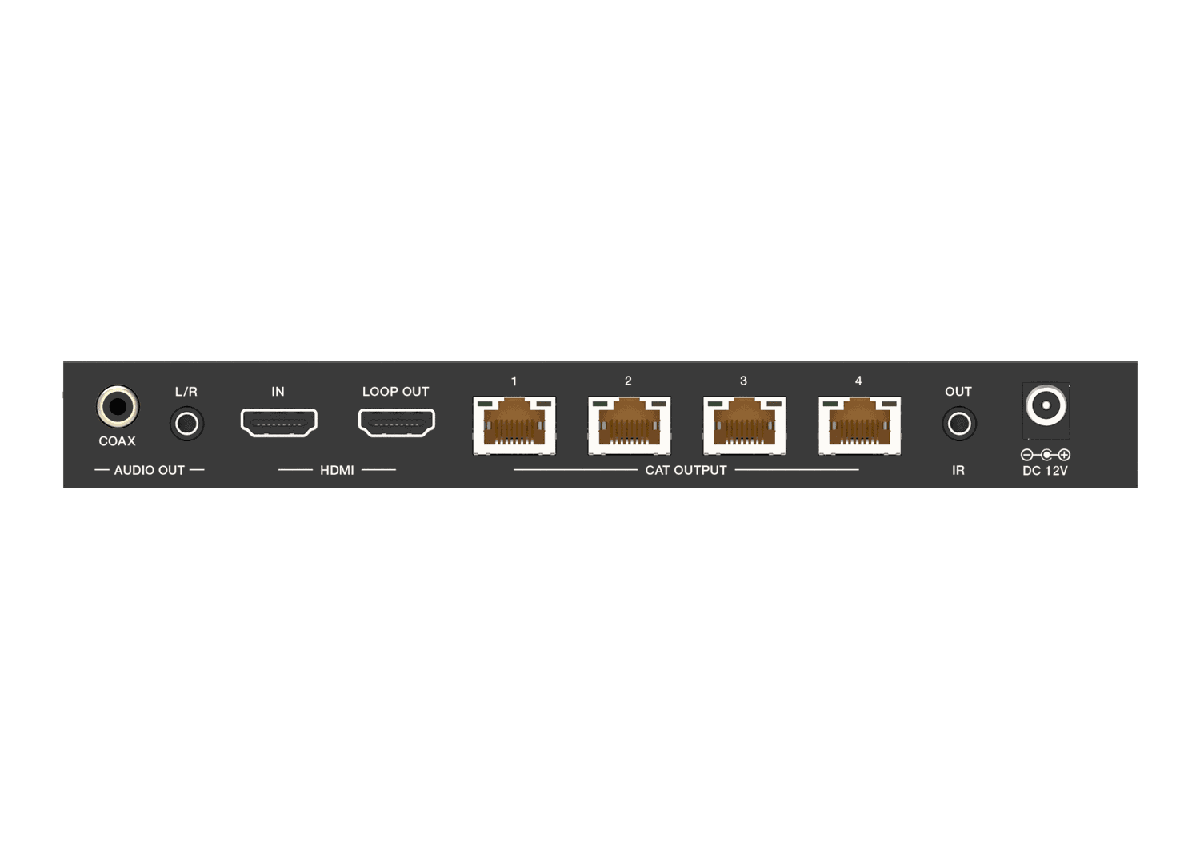

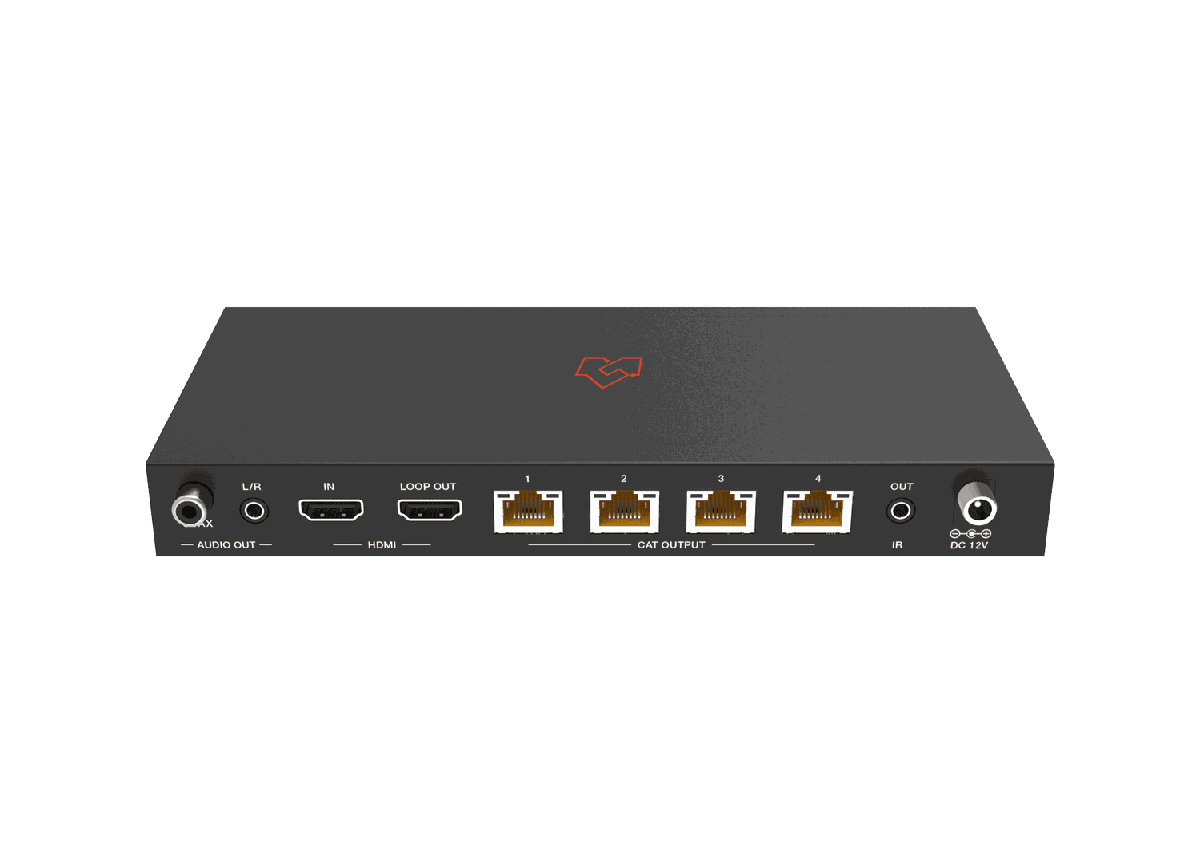

Output	1x HDMI Type A (19-pin female) 4x CAT OUT [RJ45, 8-pin female] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [3.5mm Stereo Mini jack]
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Analog Audio Formats	PCM 2.0CH
