VigilLink VLSP-14CTH14 1x4 HDMI Splitter over CAT with Loop Out

The VLSP-14CTH14 distributes one HDMI source to four remote displays over Cat6 cable, with a local HDMI loop output for a monitor at the source. Video runs to 4K@30Hz 4:4:4 8-bit under HDMI 1.4 and HDCP 1.4.

The unit provides one HDMI input, one HDMI loop output, and four CAT outputs, each reaching 131 feet (40 meters) at 4K@30Hz. Audio formats include LPCM 7.1, Dolby TrueHD, and DTS.

HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.4
Video Bandwidth	297MHz/10.2Gbps
Video Resolution	480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4)

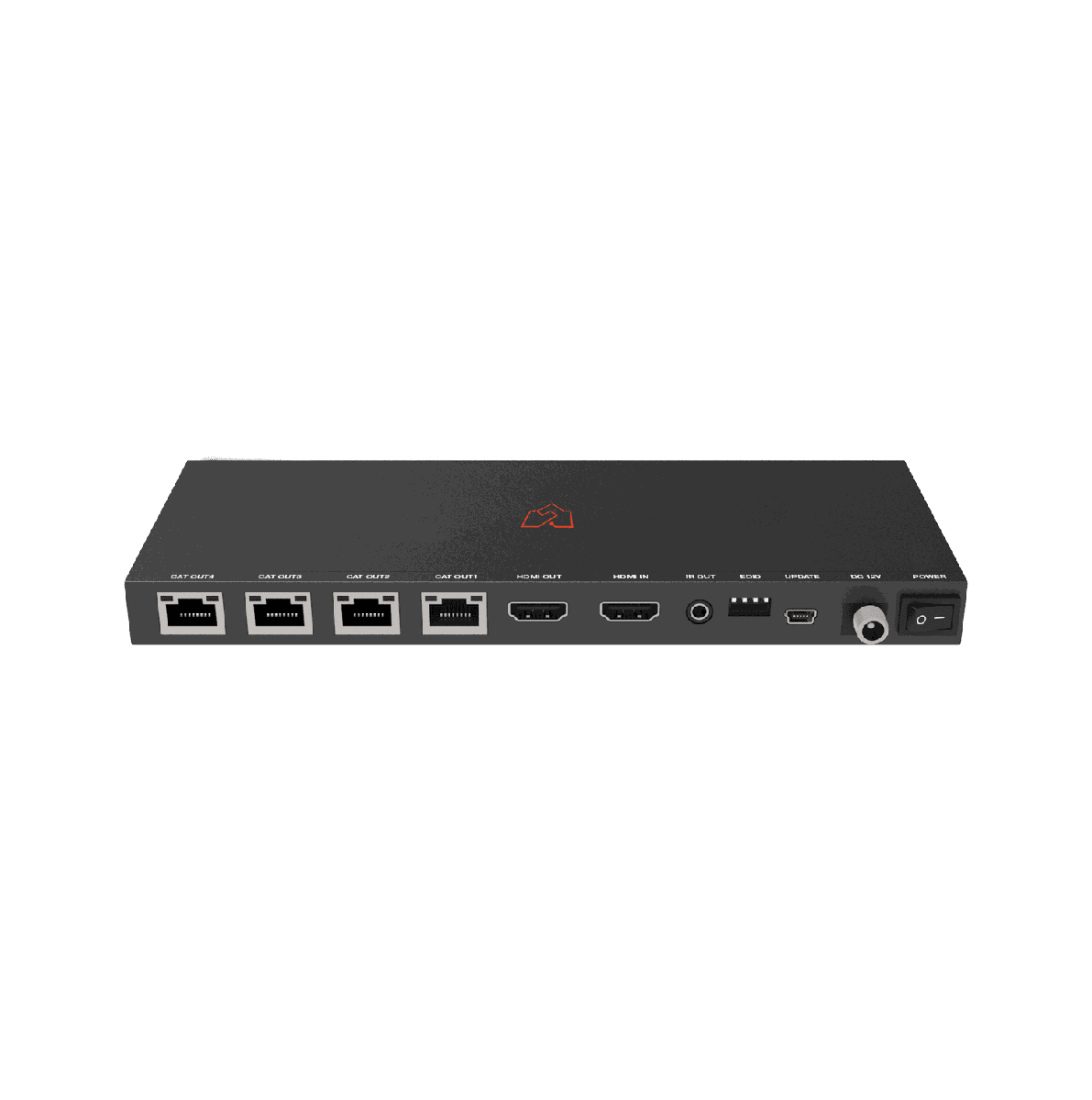

Transmitter	Inputs: 1xHDMI IN [Type A, 19-pin female] Outputs: 1xHDMI OUT [Type A, 19-pin female] 4x CAT OUT [RJ45] Controls: 1x IR OUT [3.5mm Stereo Mini-jack] 1x EDID DIP switch [4-pin] 1x Update [Micro USB]
Receiver	Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] Output: 1 x HDMI OUT [Type A, 19-pin female]
Audio Formats	LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
Color Space	RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0
