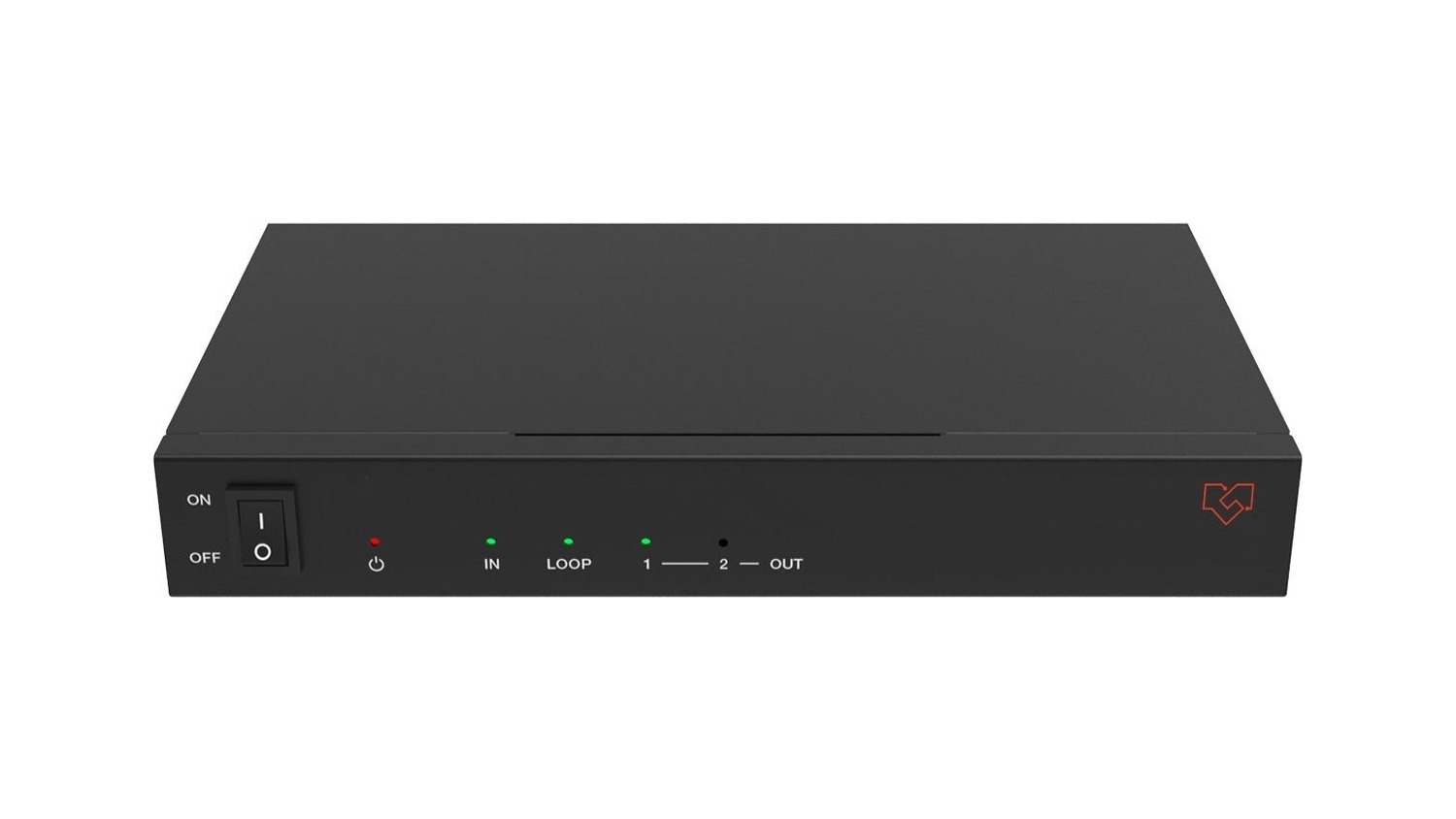

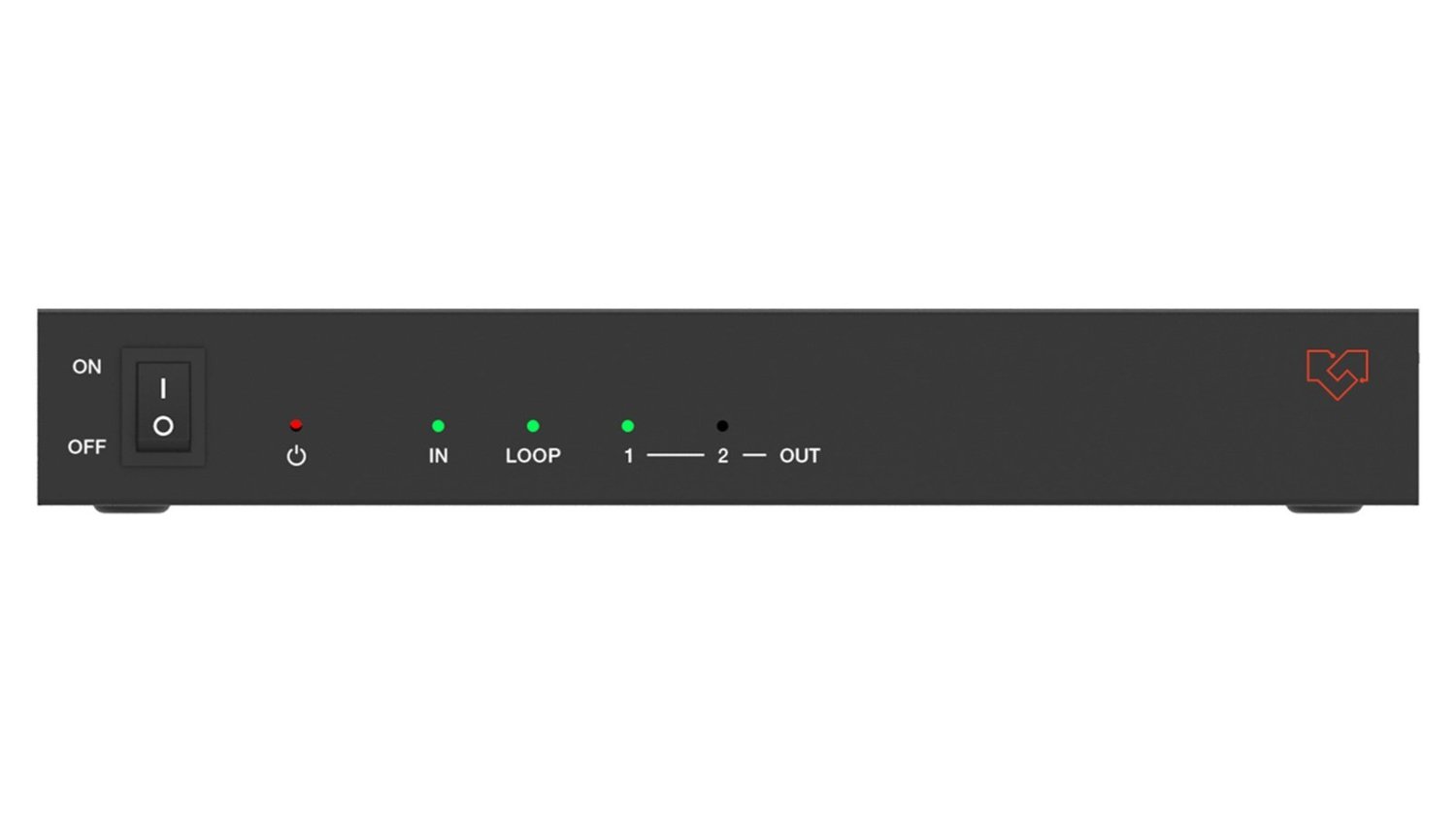

VigilLink VLSP-12HT150 1x2 HDMI Splitter over HDBaseT

The VLSP-12HT150 distributes a single HDMI source to two remote displays over HDBaseT, at up to 4K@60Hz 4:4:4 and 18Gbps. One HDMI loop output and two CAT outputs give flexibility in how the local and remote ends are wired.

Over a single Cat6/6a/7 cable, each leg reaches 35 meters at 4K@60Hz, 50 meters at 4K@30Hz, or 60 meters at 1080p@60Hz. One-way IR control passes with the signal, and HDR, HDR10+, HLG, and Dolby Vision are supported under HDMI 2.0b with HDCP 2.2 and 1.x.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2/1.x
Video Bandwidth	594MHz/18Gbps
Video Resolution	Up to 4k2k@60Hz 4:4:4
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Analog Audio Formats	PCM 2.0CH
Coaxial Audio Formats	LPCM 2.0, LPCM 5.1, Dolby Digital 2/5.1CH
Color Space	RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
