VigilLink VLSP-12CTH14 1x2 HDMI Splitter over CAT with Loop Out

The VLSP-12CTH14 distributes a single HDMI source to two remote displays over Cat6 cable, while a local HDMI loop output feeds a confidence monitor at the rack. Resolutions run to 4K@30Hz 4:4:4 8-bit under HDMI 1.4 and HDCP 1.4.

The unit provides one HDMI input, one HDMI loop output, and two CAT outputs, extending each leg up to 131 feet (40 meters) at 4K@30Hz with a single Cat6 cable per output. Audio support covers LPCM 7.1, Dolby TrueHD, and DTS.

HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.4
Video Bandwidth	297MHz/10.2Gbps
Video Resolution	480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4)

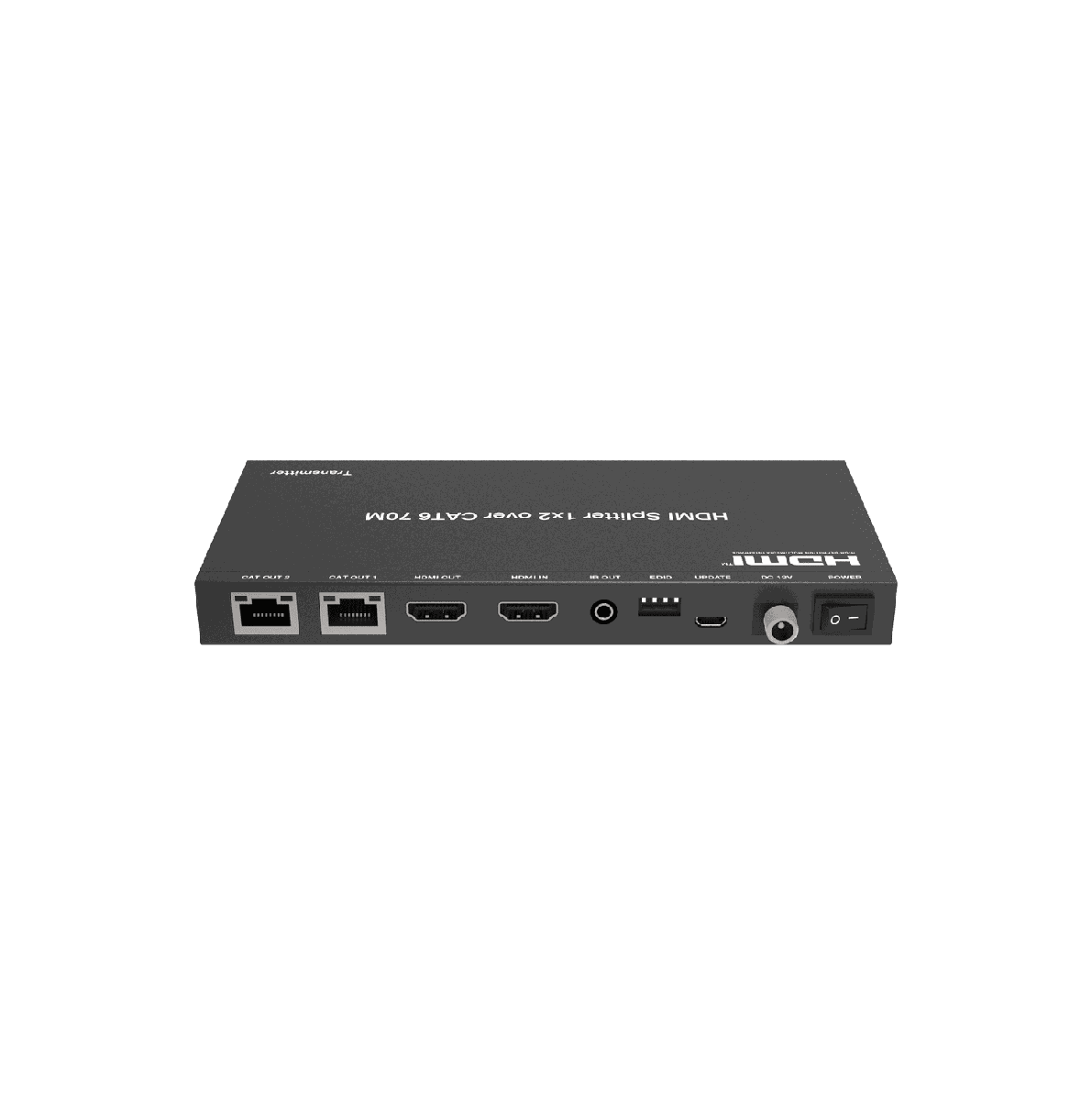

Transmitter	Inputs: 1x HDMI IN [Type A, 19-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 2x CAT OUT [RJ45] Controls: 1x IR OUT [3.5mm Stereo Mini-jack] 1x EDID DIP switch [4-pin] 1x UPDATE [Micro USB]
Receiver	Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] Output: 1x HDMI OUT [Type A, 19-pin female]
Audio Formats	LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
Color Space	RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0
