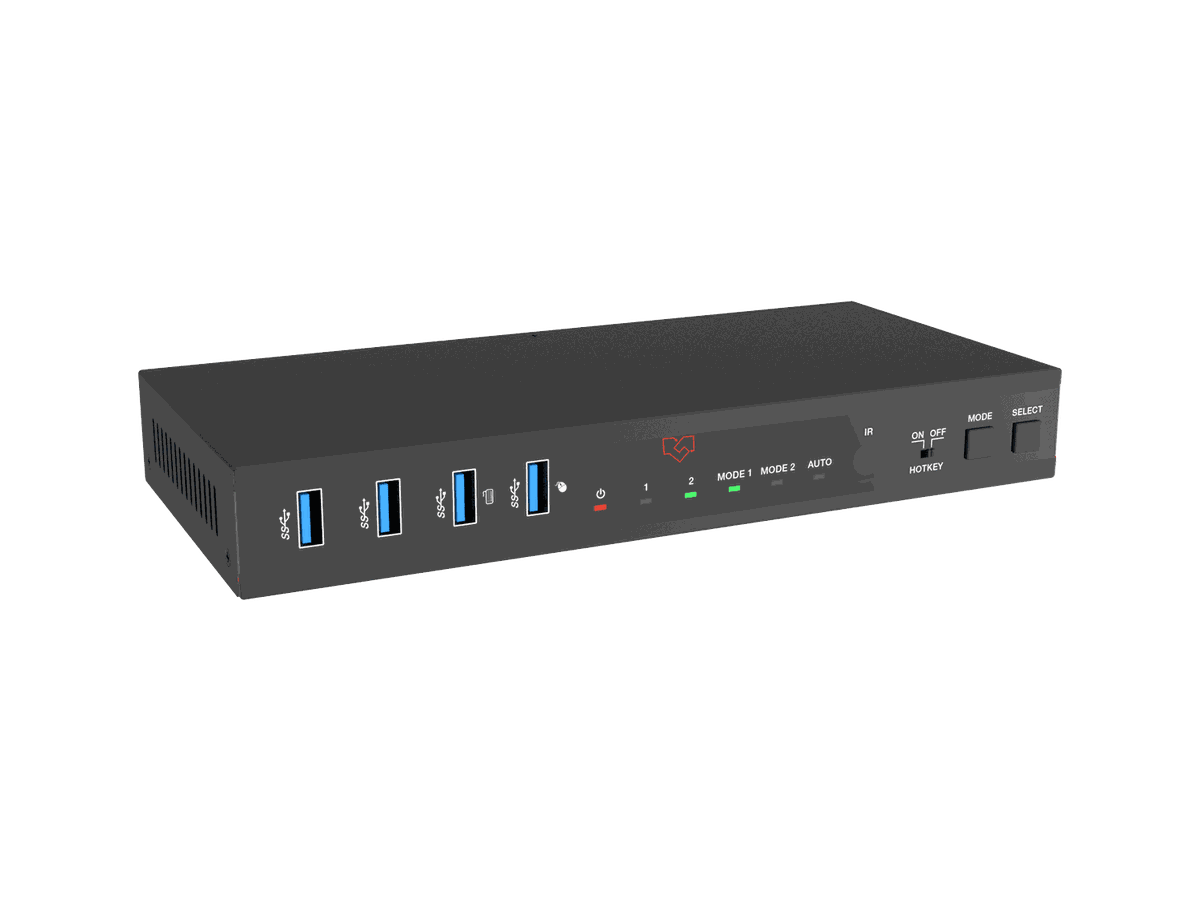

VigilLink VLKV-H20P2D 2-Port Dual-Monitor 4K60 HDMI and DisplayPort KVM Switcher
The VLKV-H20P2D handles two computers on a two-monitor desk with dual-channel switching, accepting both HDMI and DisplayPort sources. USB devices and both displays are shared between the systems, and the unit supports two modes of operation.
Video reaches 4K@60Hz 4:4:4 8-bit and USB 3.0 transfers run to 5Gbps. A virtual interaction function wakes connected PCs from standby to reduce switching time, and sources change from front panel buttons, an IR remote, or keyboard and mouse hotkeys.
| HDMI Compliance | HDMI 2.0 |
|---|---|
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K@60Hz, 2K@60Hz/144Hz |
| Video Latency | No Latency |

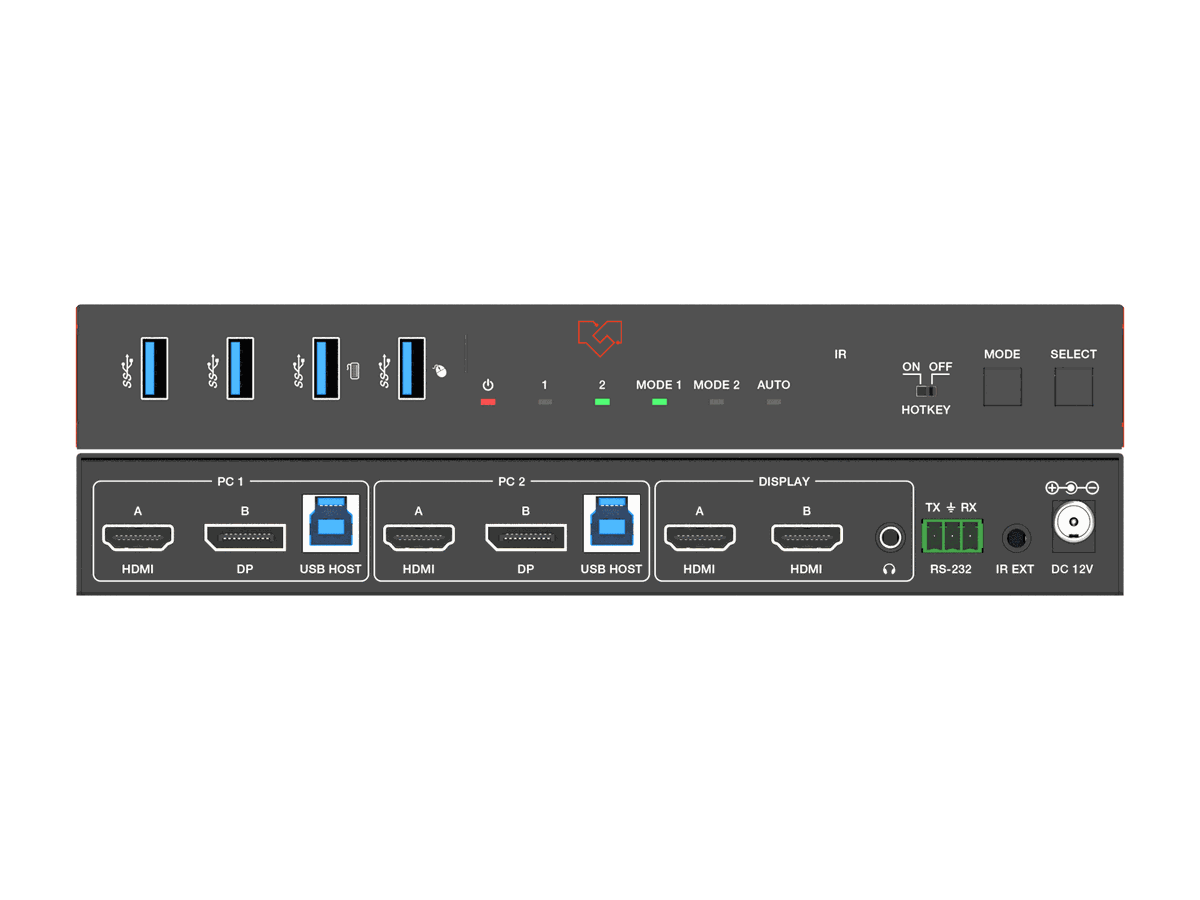

| Input ports | 2 x HDMI input [Type A, 19-pin female] 2 x DP input [20-pin female] |
| Audio Latency | No Latency |
| Audio | DTS:X, DSD 3 / 11 |
