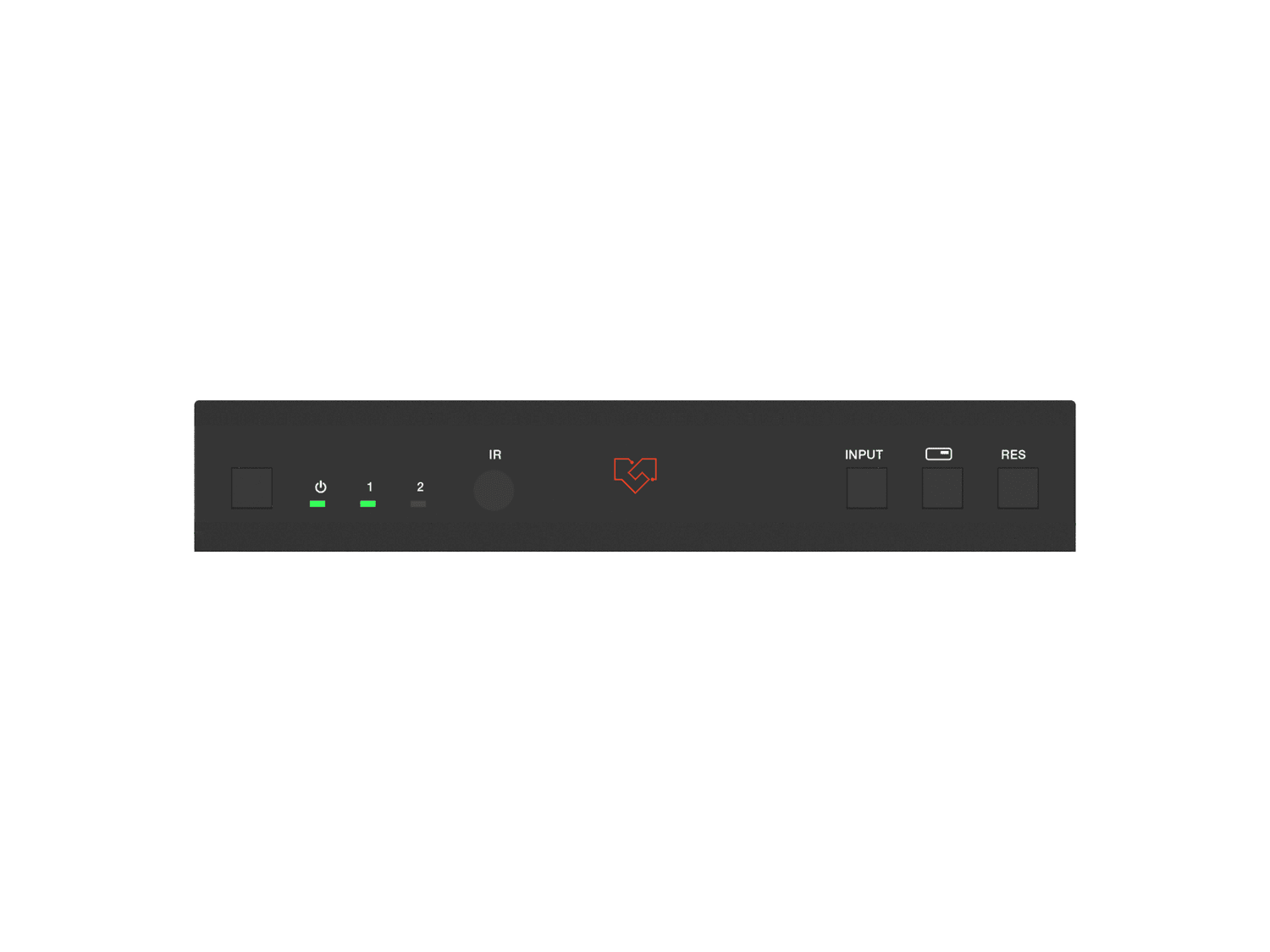

VigilLink VLML-2X1H20 2x1 HDMI Switcher with Multi-Viewer, 4K60

The VLML-2X1H20 is a seamless 2x1 UHD multiview switcher that puts two HDMI sources on a single display, either one at a time or side by side. Input and output resolutions run to 4K@60Hz across 18Gbps of uncompressed bandwidth.

Switching between channels is seamless, with no loss of sync at the display, and the window layout is set from the supplied control software. Audio support covers LPCM, AC3, Dolby Digital Plus, DTS, and DTS-HD up to 7.1 channels. It is HDMI 2.0b, HDCP 2.2, and HDCP 1.x compliant.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 / 1.x
Video Bandwidth	18Gbps
Video Resolution	Up to 4K2K@60 4:4:4
Input Ports	2 x HDMI IN [Type A, 19-pin female]
Output ports	1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUTPUT [RCA] 1 x OPTICAL OUTPUT [S/PDIF]
Audio Formats	PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res Analog audio [3.5mm L/R]: PCM2.0 SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0 Note: It does not support HBR audio
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
