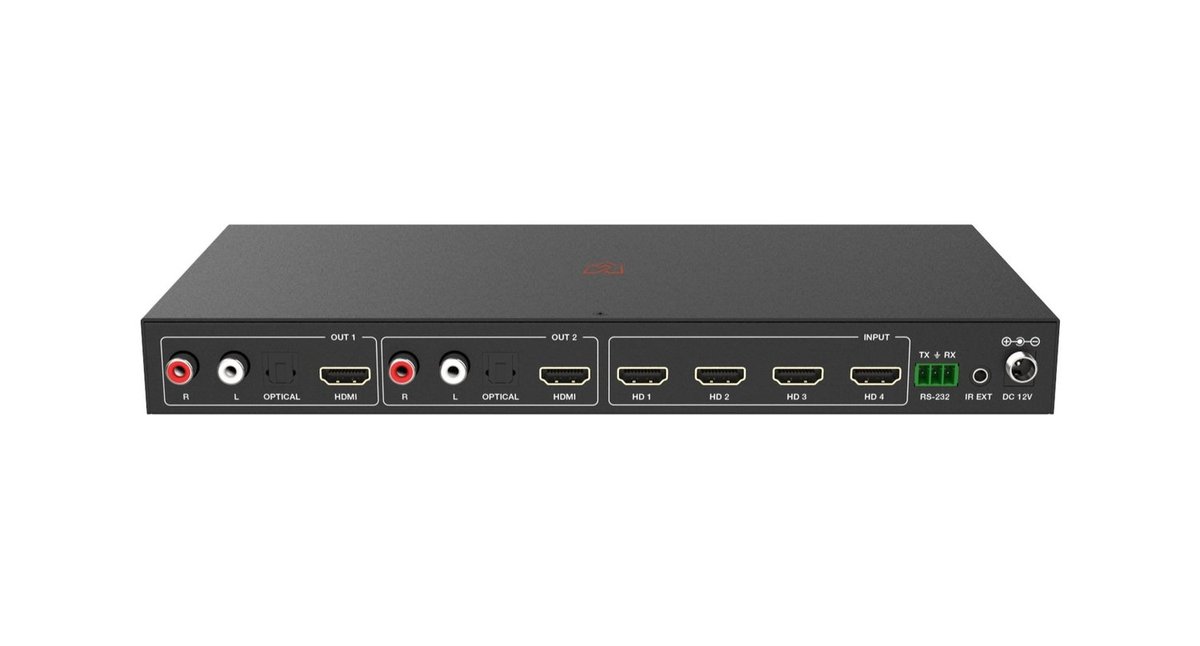

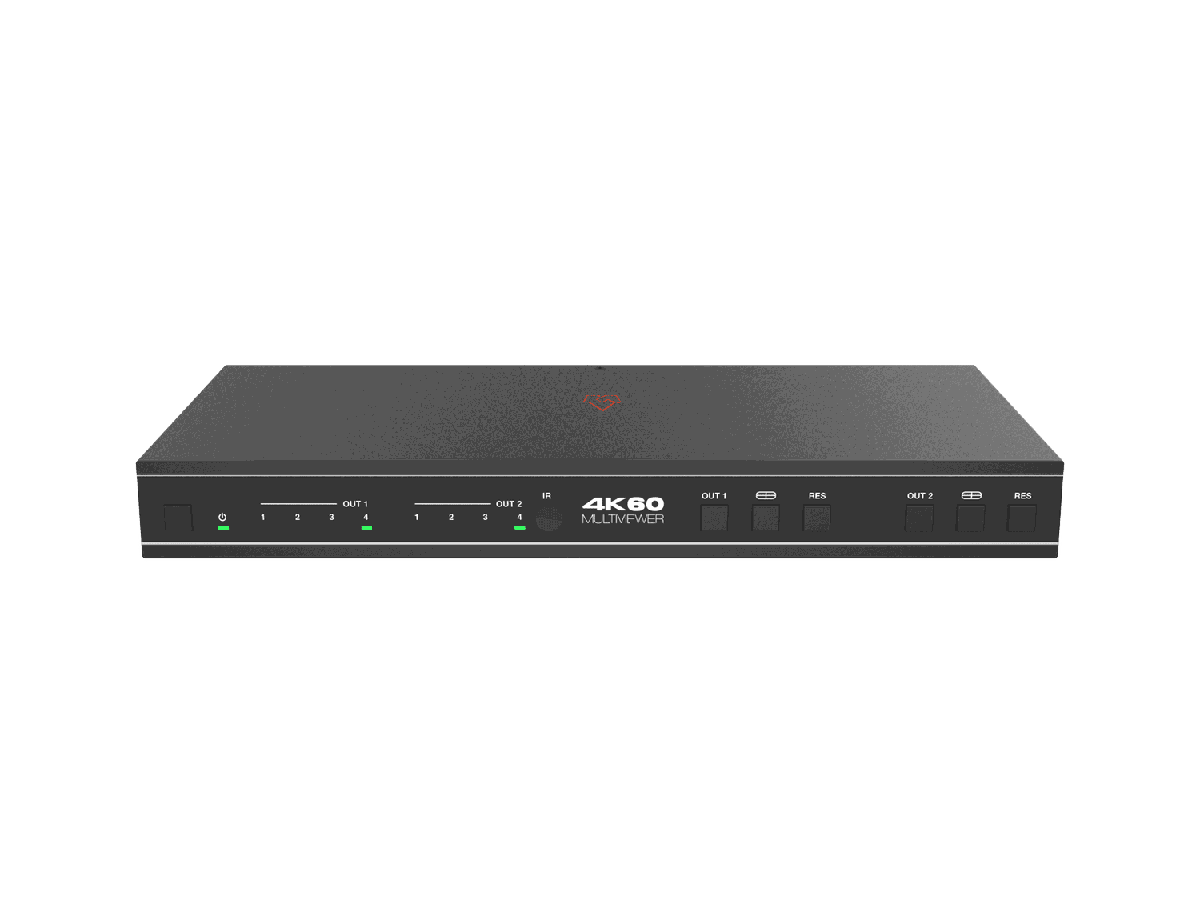

VigilLink VLML-4X2H20M 4x2 HDMI Multiviewer Matrix Switcher, 18Gbps

The VLML-4X2H20M is a seamless 4x2 UHD multiviewer matrix switcher: four HDMI sources in, two independent HDMI outputs, each with its own window layout. Input resolutions reach 4K@60Hz with reduced blanking.

Control rooms, command centres, and broadcast suites are the natural home for it, because signals can be positioned and combined differently on each of the two screens. Bandwidth is 18Gbps uncompressed at up to 4K@60Hz, with LPCM, Dolby Digital Plus, DTS, Dolby TrueHD, and DTS-HD Master pass-through, HDMI 2.0b and HDCP 2.2/1.x compliant.

HDMI Compliance	HDMI 2.0b
Video Bandwidth	18Gbps
Video Resolution	Up to 4K2K@60 4:4:4
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
Housing	Metal Enclosure
Dimensions	270mm [W] x 130mm [D] x 30mm [H]
Weight	906g
