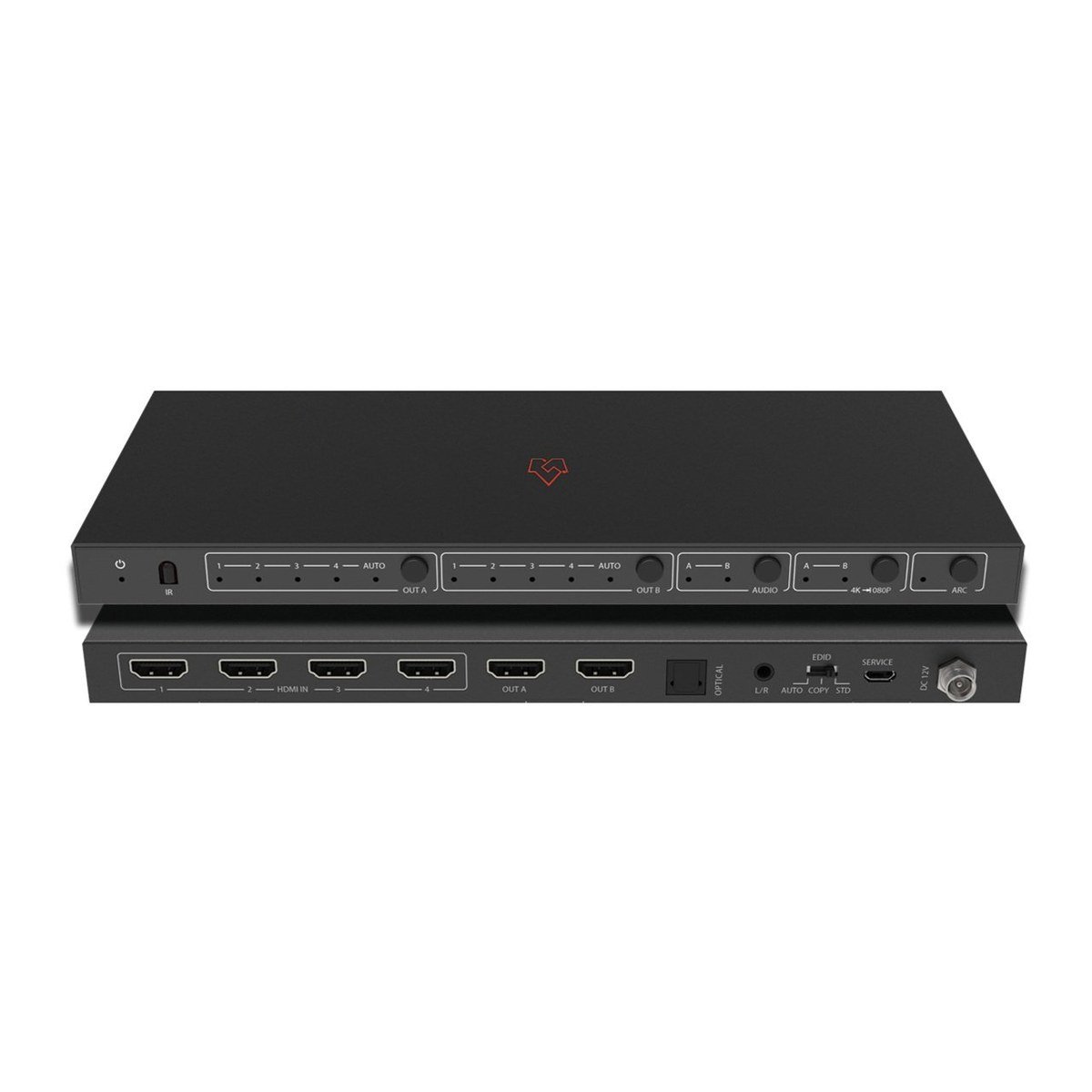

VigilLink VLMX-0402 4x2 HDMI 2.0 Matrix Switcher with Downscaling

The VLMX-0402 routes any of four HDMI sources to two displays at up to 4K2K@60Hz YCbCr 4:4:4, at 18Gbps and HDCP 2.2. A 4K-to-1080p downscale function keeps a legacy 1080p display usable on the same matrix as a UHD one.

Audio can be extracted from HDMI sources to both optical and analog L/R outputs. ARC support and EDID management with AUTO, COPY, and STD modes round out the feature set. The switcher is HDMI 2.0, HDCP 2.2/1.4, and DVI 1.0 compliant.

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18 Gbps
Video Resolution	Up to 4K2K@50/60Hz(YCbCr 4:4:4),4K2K@30Hz.All HDMI 3D TV format, etc
Inputs	4xHDMI Type A [19-pin female]
Outputs	2xHDMI Type A [19-pin female] 1xL/R audio out [3.5mm Stereo Mini-jack] 1xOPTICAL audio out [S/PDIF]
HDMI Audio Formats	PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Optical Audio Formats	PCM2.0, Dolby Digital / Plus, DTS
