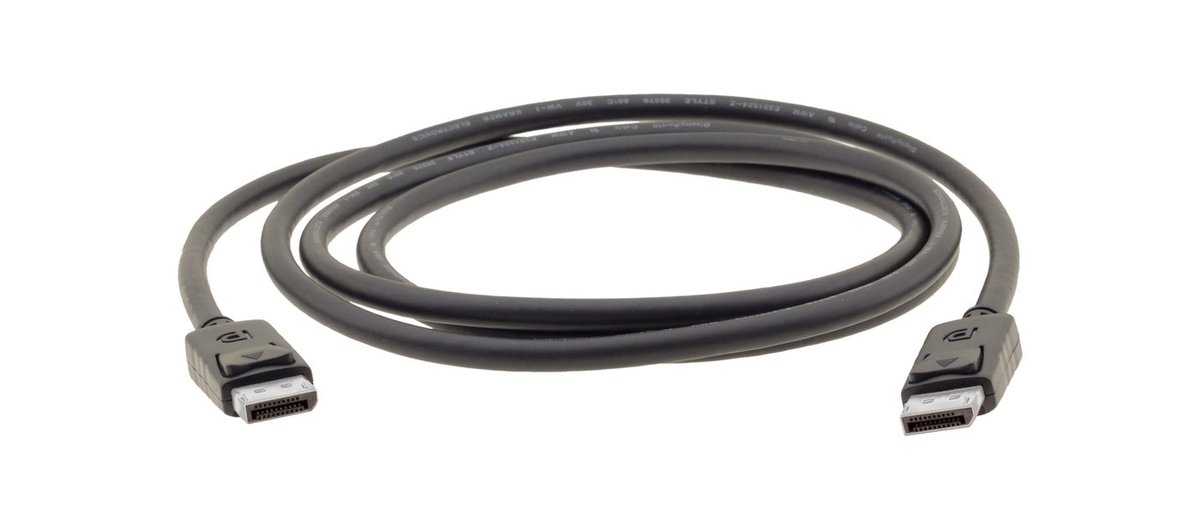

Kramer C-DP 4K DisplayPort Cable
C-DP is a high-resolution DisplayPort cable for video signals up to 4K@60Hz (4:4:4) resolution supporting DisplayPort 1.2 standard. C-DP supports an HBR2 (High Bit Rate 2) bandwidth of up to 21.6 Gbps. The cable is triple shielded for superior noise immunity. High-Performance Professional Cable - supports resolutions up to 4K@60Hz (4:4:4) and an HBR2 (High Bit Rate 2) bandwidth of up to 21.6 Gbps. Content Protection Support - DPCP (DisplayPort Content Protection) and HDCP 2.2. Daisy Chain Multiple Monitors - With MST (Multi-Stream) support. Secure Connections - Includes molded DisplayPort connectors with latches. Quality Construction - Triple shielded for superior noise immunity. Backward Compatibility - Compatible with DisplayPort 1.1. Varied Selection of Lengths - Available in versions of 0.9 to 15.0m (3 to 50ft). Note: - The cable's color can vary in some cases.
| Resolutions | Supports all VESA resolutions up to 4K@60Hz (4:4:4) |
|---|---|
| Max. Data Rate | 21.6Gbps (5.4 Gbps per lane) |
| Male DisplayPort Connectors | Gold plated pins-15u, Nickel Plated Shell |
| Type | Triple Shielding (eliminates RF and EM interference) |
| 3-15ft Lengths | 28AWG |
| 25-50ft Lengths | 26AWG |
| Material | PVC |
| Diameter 3-15ft Lengths | 7.2 +/- 0.19mm |
| Diameter 25-50ft Lengths | 8.2 +/- 0.19mm |
| Average Thickness 3-15ft Lengths | 0.96mm |
| Average Thickness 25-50ft Lengths | 0.57mm |
| Color | Black |
| Voltage Rating | 30V |
| Temperature Rating | 80C |
| Dielectric Strength | AC - 750V/1sec MIN |
| Insulation Resistance | FOAM-SKIN-PE,PE:DC-500V 100 Mohm/KM MIN. at 20 |
| Conductor Resistance 28AWG | 237ohm/KMMAX. at 20 |
| Conductor Resistance 26AWG | 148ohm/KM MAX. at 20 |
| Differential Impedance | 100+/-5ohm |
| Intra Pair Skew | 50ps/2m |
| Inter Pair Skew | 4ns/2m |
| Rating | VW-1 |
| RoHS | 2011/65/EU |
