VigilLink VLML-4X1H20 4x1 HDMI Switcher with Multi-Viewer, 4K60

The VLML-4X1H20 is a seamless 4x1 UHD multiview switcher that combines up to four HDMI sources onto a single UHD or HD monitor. Input resolutions reach 4K@60Hz with reduced blanking, and each window can be sized and positioned independently through the supplied control software.

Switching between input channels is seamless, so the display never drops sync between sources. Bandwidth is 18Gbps uncompressed with input and output up to 4K@60Hz, and audio support covers LPCM, AC3, Dolby Digital Plus, DTS, and DTS-HD to 7.1 channels. It is HDMI 2.0b, HDCP 2.2, and HDCP 1.x compliant.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 / 1.x
Video Bandwidth	18Gbps
Video Resolution	Up to 4K@60Hz

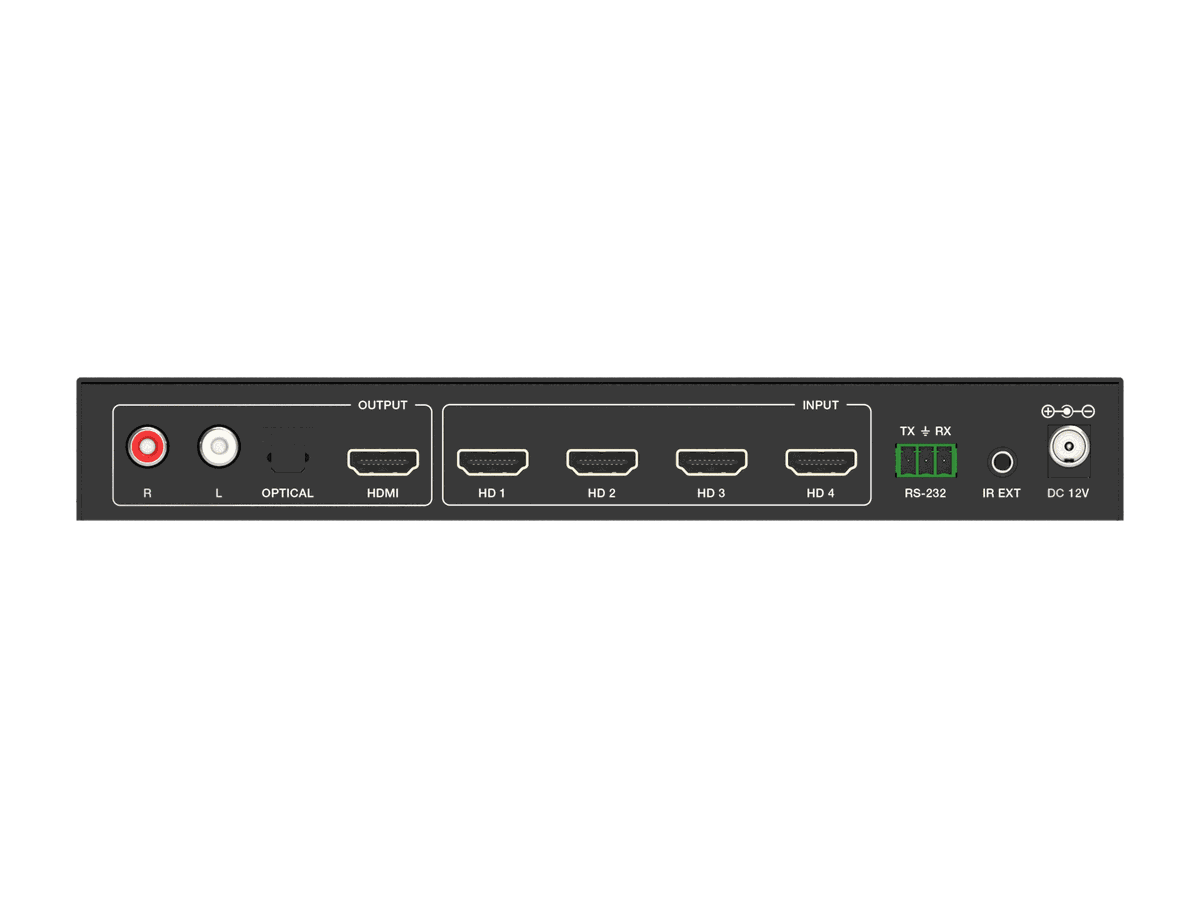

Input Ports	4 x HDMI IN [Type A, 19-pin female]
Output ports	1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUTPUT [RCA] 1 x OPTICAL OUTPUT [S/PDIF]
Audio Formats	HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res Analog audio [3.5mm L/R]: PCM2.0; SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0. Note: It does not support HBR audio
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
