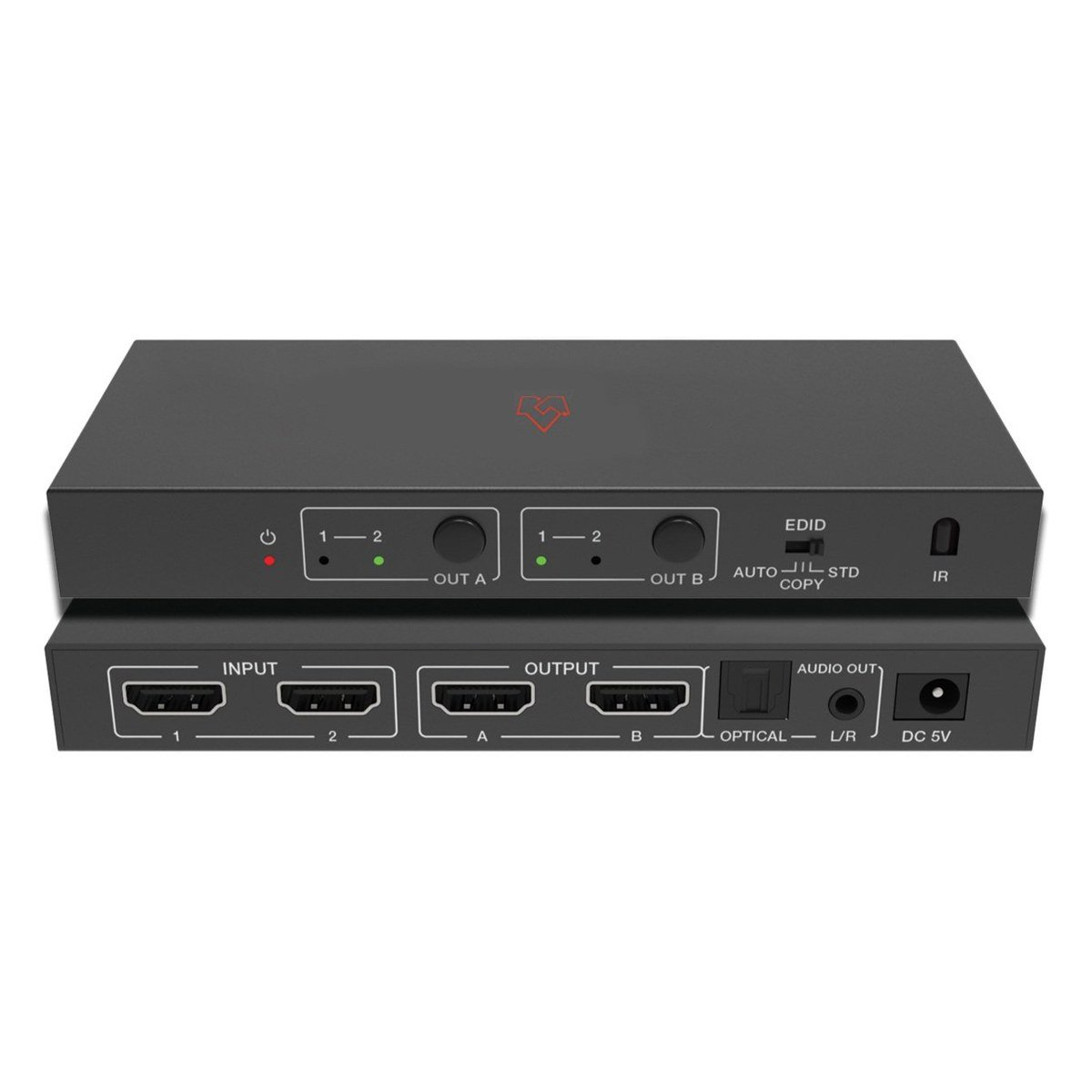

VigilLink VLMX-0202E 2x2 HDMI 2.0 Matrix Switcher with Audio Extraction

The VLMX-0202E routes two HDMI sources to two displays at up to 4K2K@60Hz YCbCr 4:4:4 across 18Gbps of bandwidth. It is the small matrix for a huddle room or a bar where two sources and two screens is the whole system.

Audio extraction from Output A provides both optical and analog outputs for an external sound system. Three selectable EDID modes (AUTO, COPY, and STD) keep mixed sources and displays negotiating correctly. It is HDCP 2.2, HDCP 1.x, and DVI 1.0 compliant.

HDCP Compliance	HDCP 2.2 and HDCP 1.x
Video Bandwidth	594MHz / 18Gbps
Input ports	2xHDMI Type A [19-pin female] 1xIR Receiver Window
Output ports	2xHDMI Type A [19-pin female] 1xL/R [3.5mm Stereo Mini-jack] 1xOPTICAL OUT [Optical jack]
HDMI Audio Formats	PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD
Optical Audio Formats	LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
L/R Audio Formats	Analog stereo PCM 2.0
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
