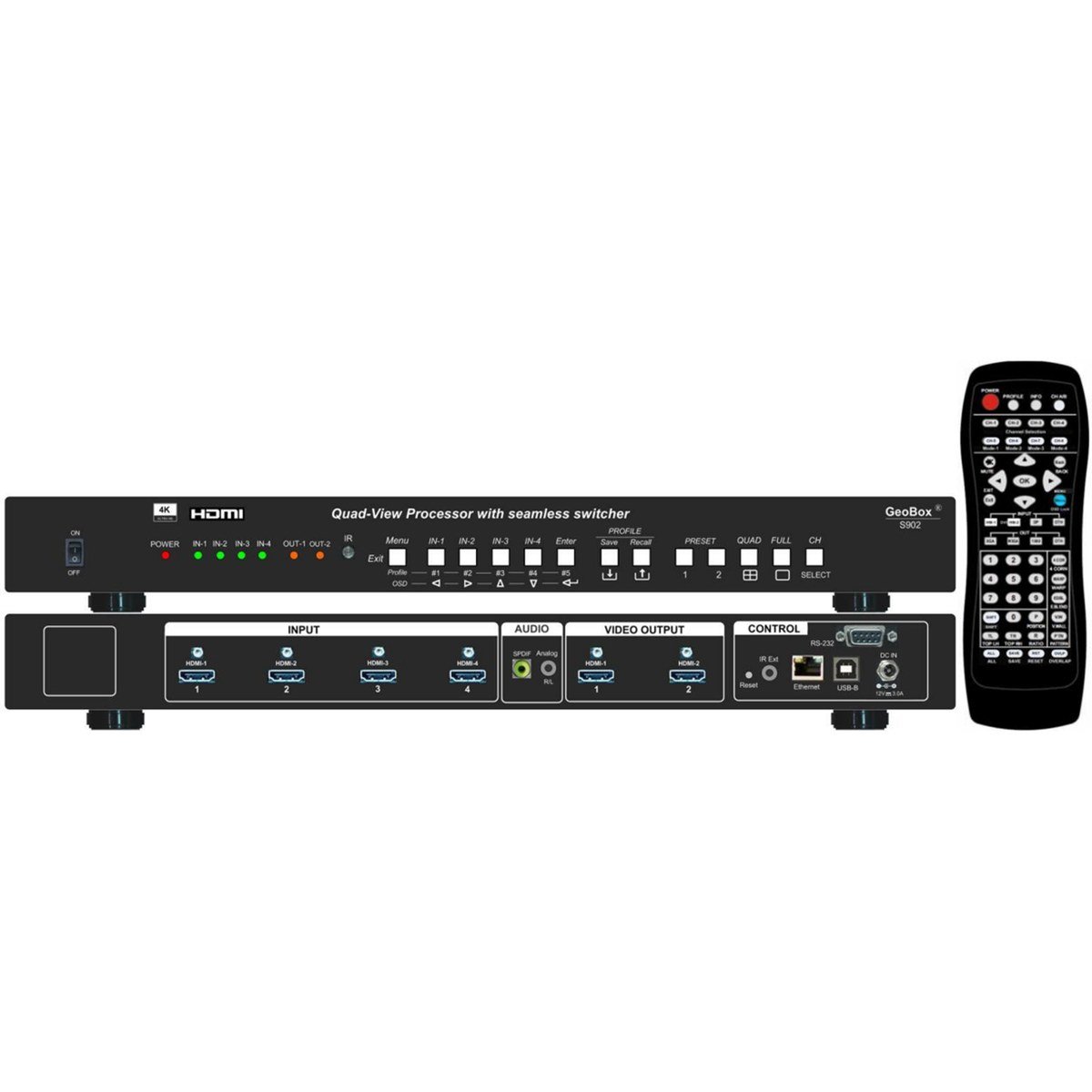

VigilLink S902 4-input, 2-output UHD Quad-view Processor

The S902 takes four HDMI 2.0 inputs and feeds two independent HDMI 2.0 outputs, each capable of showing any single source, a quad-view split, or a transition between sources using one of 16 built-in modes - cuts, fades, dissolves, and wipes - rather than a hard switch. Running two outputs off one box means it can feed a program output and a preview/confidence monitor simultaneously from the same input set.

Both inputs and outputs handle up to 4096x2160 at 60Hz or 7680x2160 at 30Hz at 10-bit color with 4:4:4 chroma sampling, and audio routes over HDMI embedded, RCA S/PDIF, or 3.5mm stereo depending on what the downstream gear expects. Control runs from the front panel, IR remote, USB, a web UI, or Ethernet, and the box draws a modest 7.2W from its 12V/2A supply.
