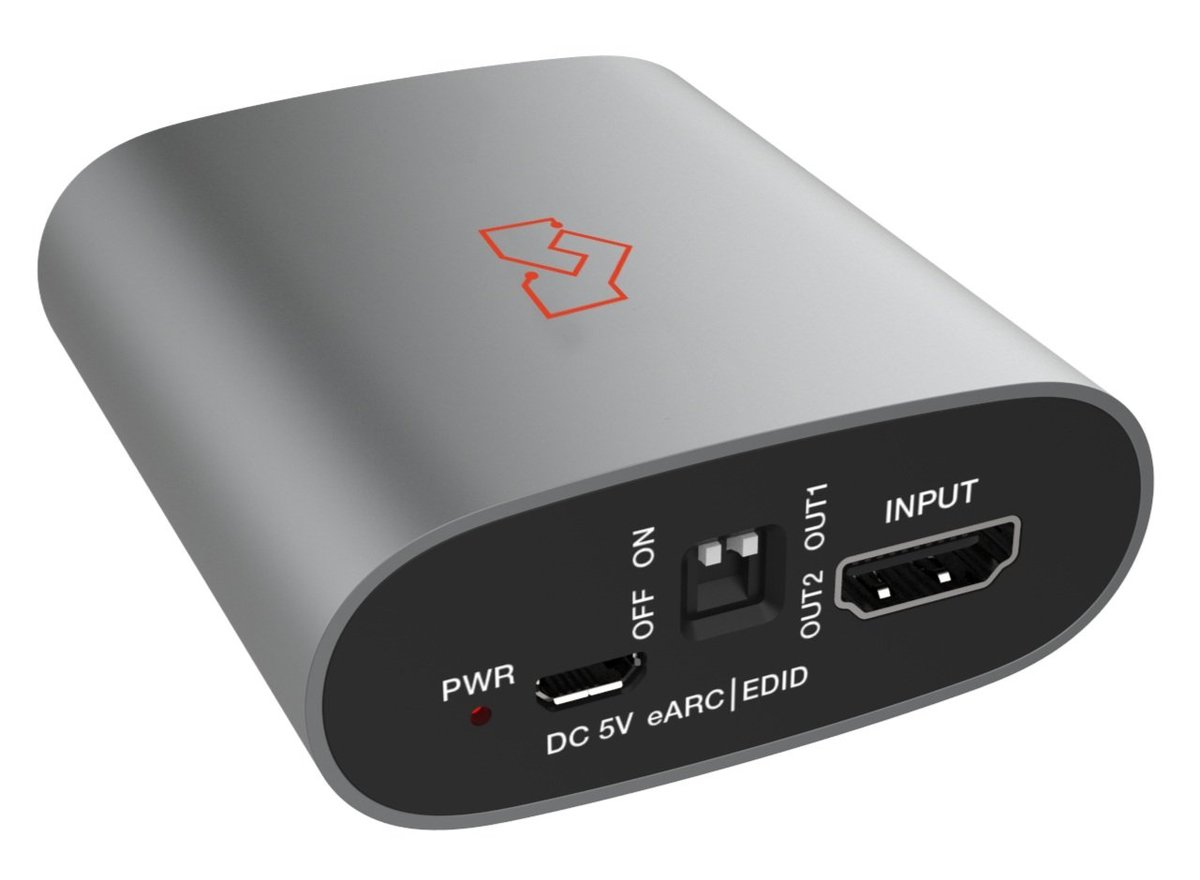

VigilLink VLHA-EREX 4K HDMI eARC Audio Extractor to HDMI

The VLHA-EREX extracts eARC audio from a television and outputs it over HDMI to an audio amplifier. When a new TV arrives with eARC and the amplifier in the rack does not speak it, this is the box that avoids replacing the amplifier.

It is HDMI 2.0b and HDCP 2.3/1.x compliant, handles 18Gbps of video bandwidth, and passes video up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4. VESA formats are supported to QSXGA@60Hz.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.3 / 1.x
Video Bandwidth	18Gbps
Video Resolution	Up to 4k2k@60Hz 4:4:4
Input	1x HDMI Type A [19-pin female]
Output	2x HDMI Type A [19-pin female]
Color Space	RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth	8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
