VigilLink VLHA-DWM 4K HDMI Audio Extractor with Downmix

The VLHA-DWM extracts audio from an HDMI source to a digital optical output and an analog stereo pair, passing 4K2K@50/60Hz (YUV 4:4:4) video through untouched. What sets it apart from the plain extractor is downmix: multichannel bitstream audio is folded to two channels for the analog output rather than going silent.

Optical and HDMI outputs keep their original pass-through audio at the same time, including LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio at up to 192kHz. The unit is HDMI 2.0b and HDCP 2.2 compliant at 18Gbps with 10-bit HDR pass-through and CEC bypass.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18Gbps
Video Resolution	Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz

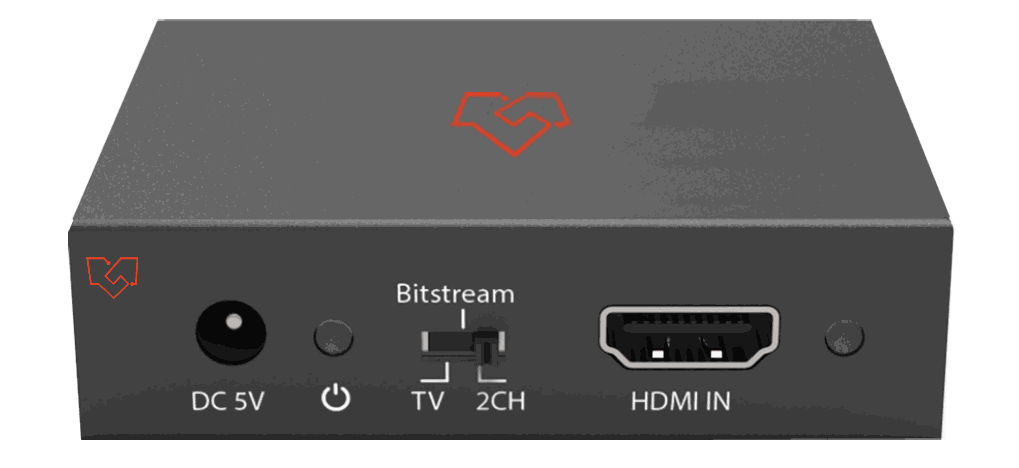

Inputs	1x HDMI Type A [19-pin female]

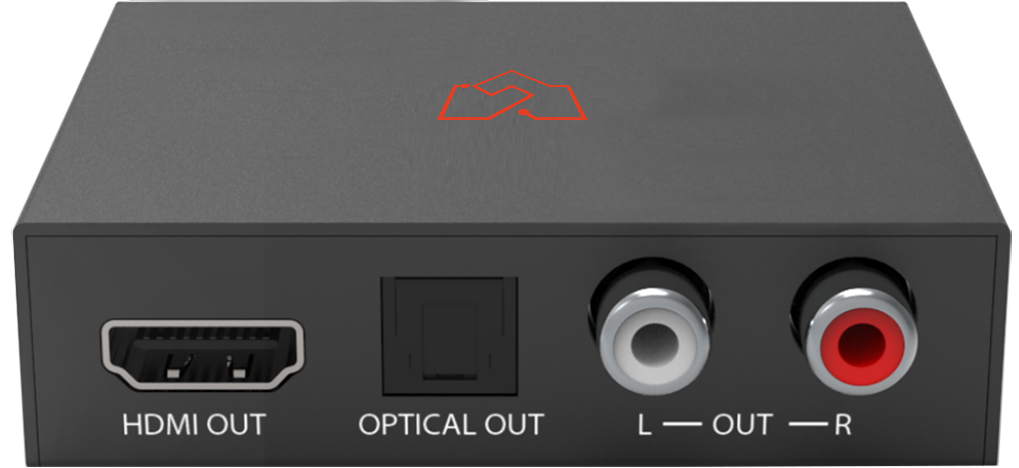

Outputs	1x HDMI Type A [19-pin female] 1x L/R Audio Out [RCA] 1x Optical Out [S/PDIF]
HDMI Audio Formats (Pass-through)	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats	LPCM 2CH, Dolby Digital 2/5.1 CH, DTS 2/5.1CH
