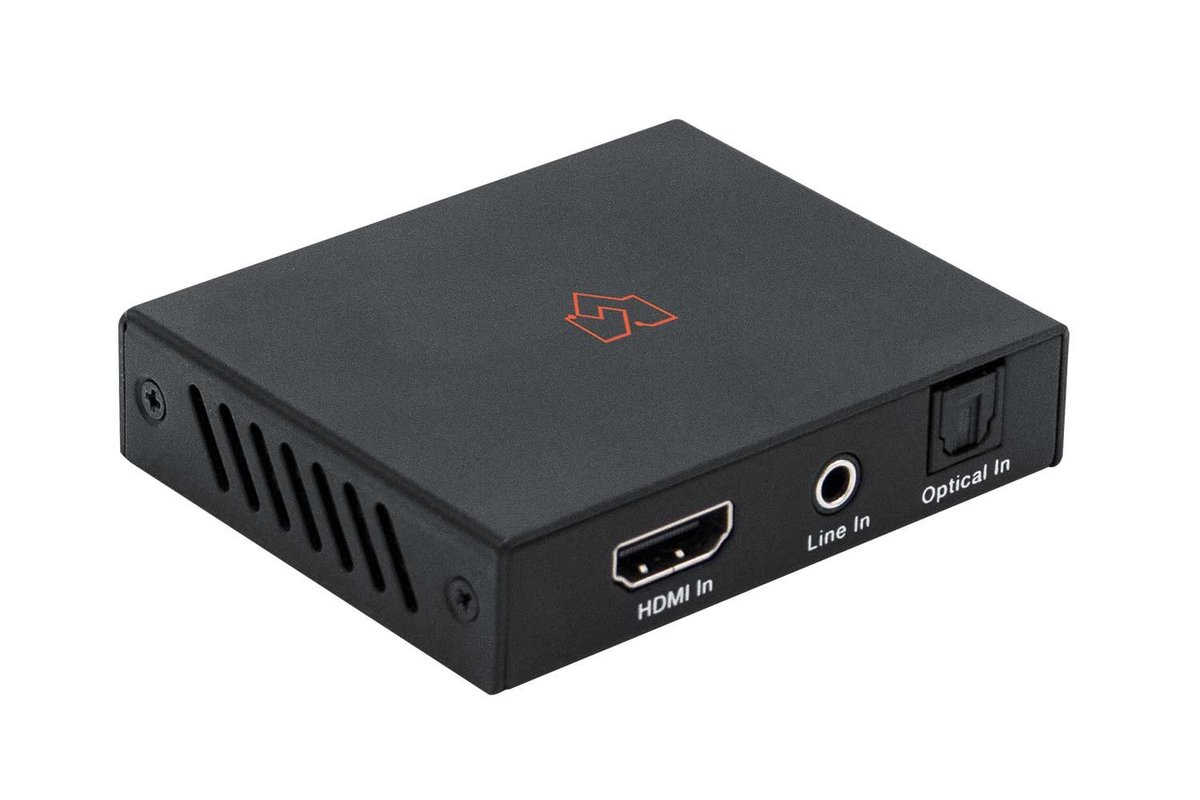

VigilLink VLHA-EMR 4K HDMI Audio Embedder, Optical or Analog to HDMI Inserts

The VLHA-EMR does the opposite job to an extractor: it takes audio from a digital optical or analog stereo line source and embeds it into the outgoing HDMI signal. That covers a camera or computer with separate audio, or a room where the sound is mixed elsewhere and has to rejoin the picture.

Video passes at up to 4K2K@50/60Hz (YUV 4:4:4) with 10-bit HDR pass-through. Optical input supports LPCM 2CH, Dolby Digital 2/5.1, and DTS 2/5.1; analog input is PCM 2.0. The unit is HDMI 2.0b, HDCP 2.2, and DVI 1.0 compliant with CEC bypass.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18Gbps
Video Resolution	up to 4K2K@50/60Hz(YUV4:4:4),4K2K@ 30Hz,1080P@120Hz and 1080P3D@60Hz

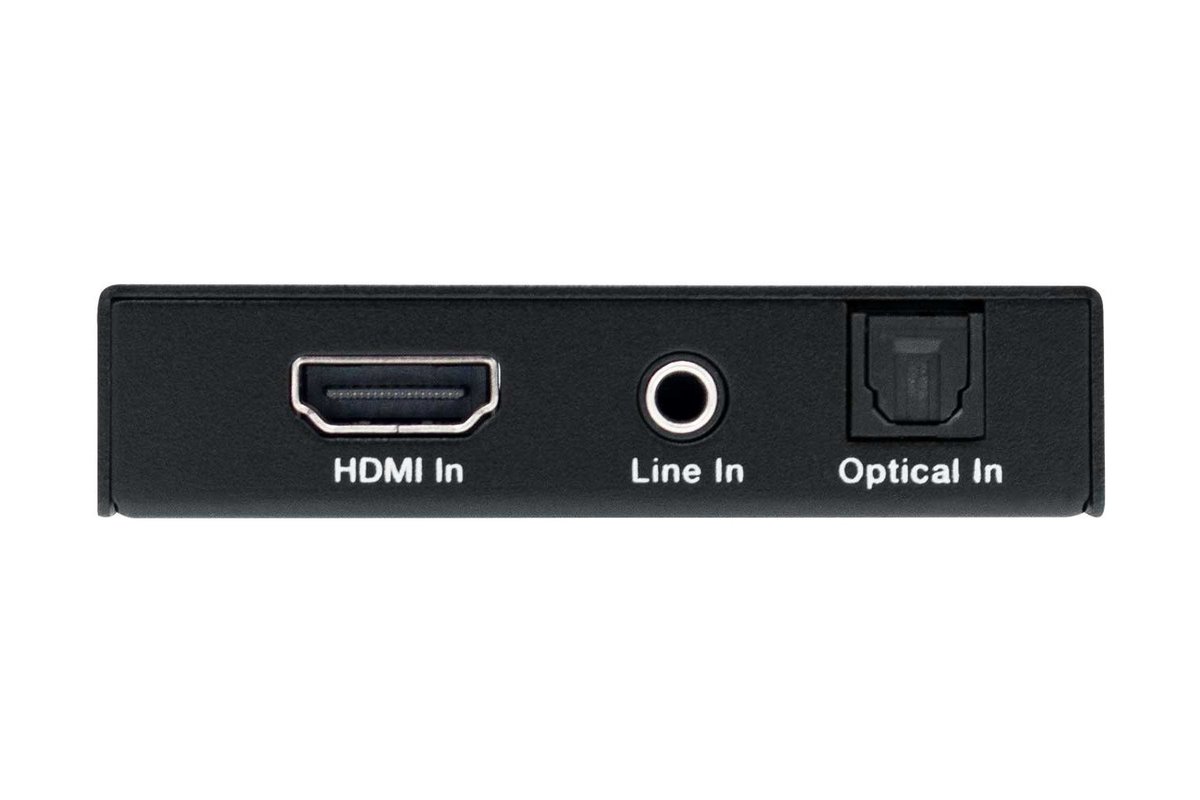

Inputs	1x HDMI Type A [19-pin female] 1x Line In [3.5mm Stereo Mini-jack] 1x Optical In [S/PDIF]

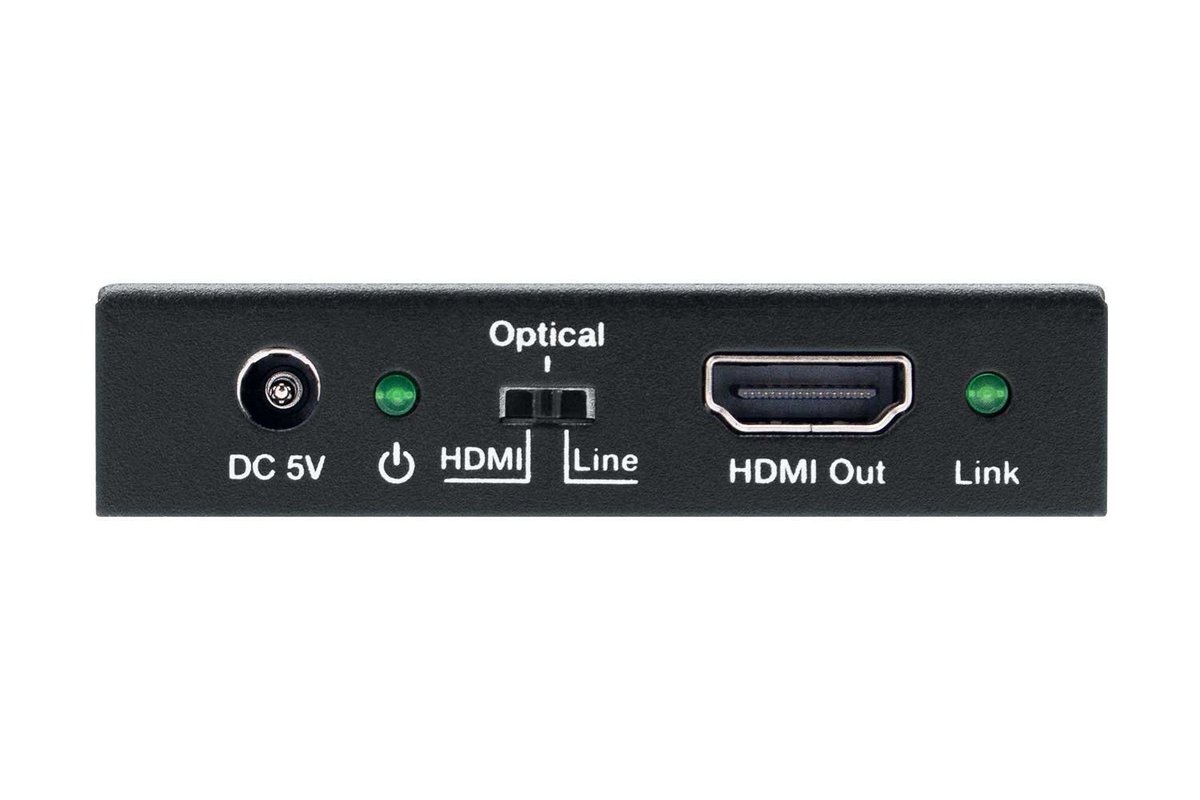

Outputs	1x HDMI Type A [19-pin female]
HDMI Audio Formats (Pass-through)	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats	LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
