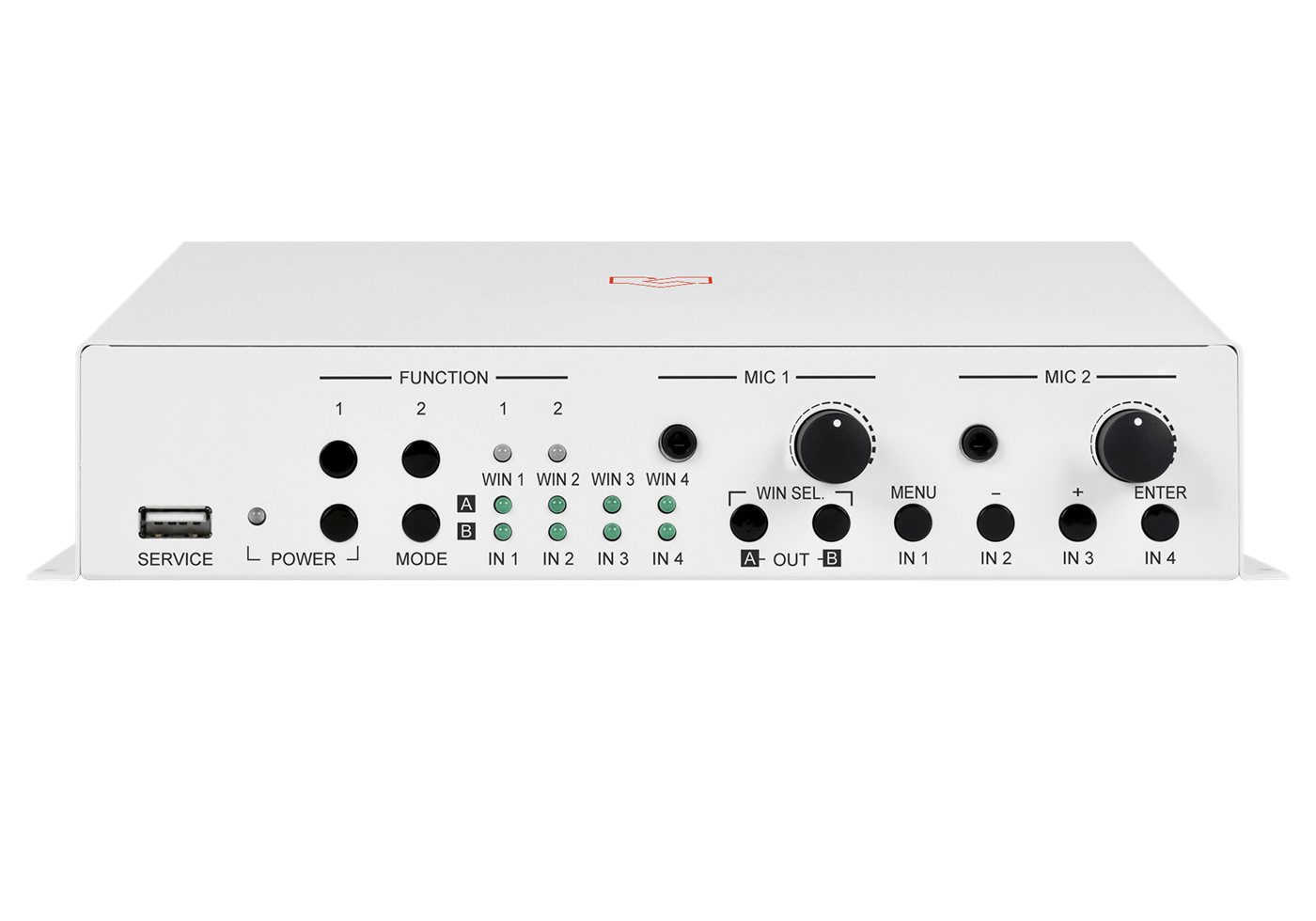

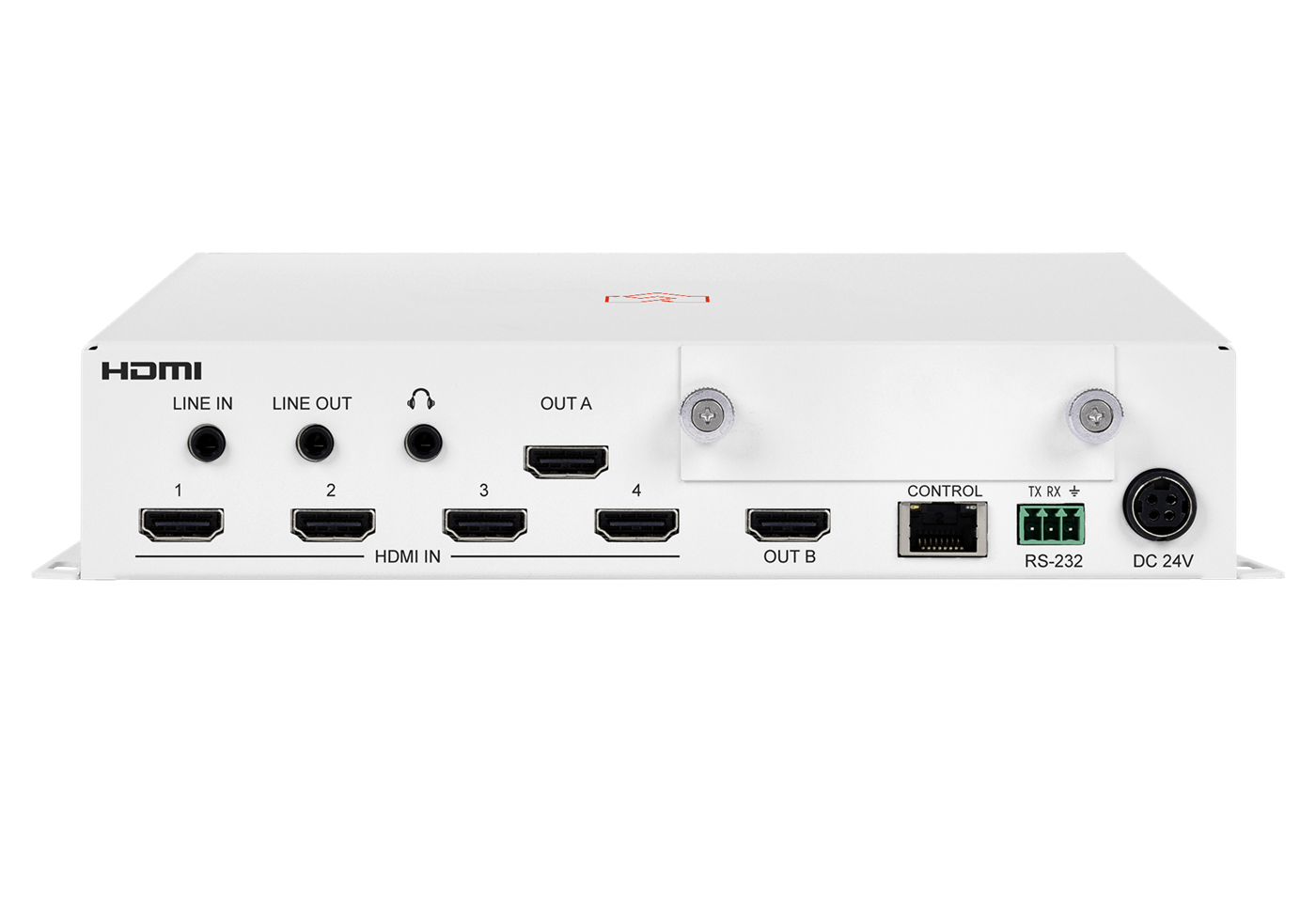

VigilLink VLML-4X2KM4K-SR 4x2 Modular Multiview Processor with Streaming and Recording
The VLML-4X2KM4K-SR combines multiview processing with streaming and recording in one unit. Video content up to 4K UHD+ is accepted and automatically scaled to a resolution suited to efficient streaming, with both HDMI and VGA inputs and an HDMI output for local monitoring.
The display stays in sync when sources change. PiP, PoP, and quad modes are available, and a multi-window arrangement can be stored as a preset. A built-in audio mixer lets an external source be blended with the embedded audio. HDMI ports run 18Gbps (600MHz) with 4K UHD support.
- Input Port4 HDMI (Type-A) 3 Stereo (3.5mm)
- Power Supply24V/2.7A DC (US/EU standards, CE/FCC/UL certified)
- Power Consumption24W
- Weight1257g
- Housing ConstructionMetal (Steel)
| Compliance | 2.0 (DVI 1.0) |
|---|---|
| HDCP Compliance | 2.2 |
| Input Port | 4 HDMI (Type-A) 3 Stereo (3.5mm) |
| Housing Construction | Metal (Steel) |
| Device Dimension (W x H x D) | 213.5mmx43mmx179.3mm [Case Only] 213.5mmx44mmx180.3mm [All Inclusive] |
| Weight | 1257g |
| Power Supply | 24V/2.7A DC (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 24W |
| Dimensions | 213.5mm × 43mm × 158mm [Case Only] 231.5mm × 44mm × 161mm [All Inclusive] |
