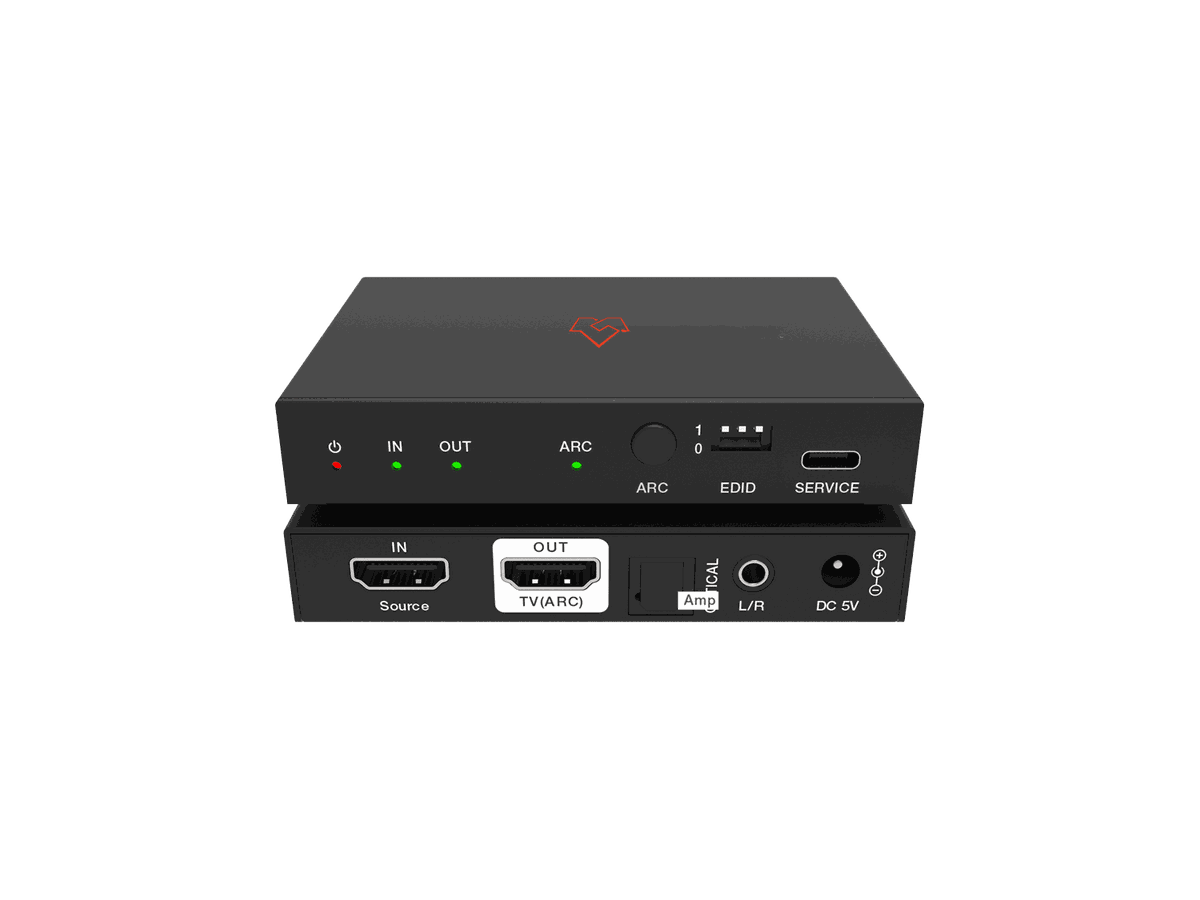

VigilLink VLHA-H21DEM 8K HDMI 2.1 Audio De-Embedder with Analog and S/PDIF HDMI Video Output Carrying On To The Display

The VLHA-H21DEM extracts audio from an HDMI source or an ARC-capable television and presents it as analog stereo and digital S/PDIF, with a buffered HDMI video output carrying on to the display. It is the piece that lets a stereo or surround system join an 8K signal chain without becoming the bottleneck.

Bandwidth reaches 48Gbps FRL and 18Gbps TMDS under HDMI 2.1 and HDCP 2.3, supporting 8K@60Hz 4:2:0 12-bit and 4K@120Hz. The HDMI 2.1 feature set including VRR, ALLM, QMS, QFT, and SBTM passes through, and EDID management with cable equalization keeps the link negotiating cleanly.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit

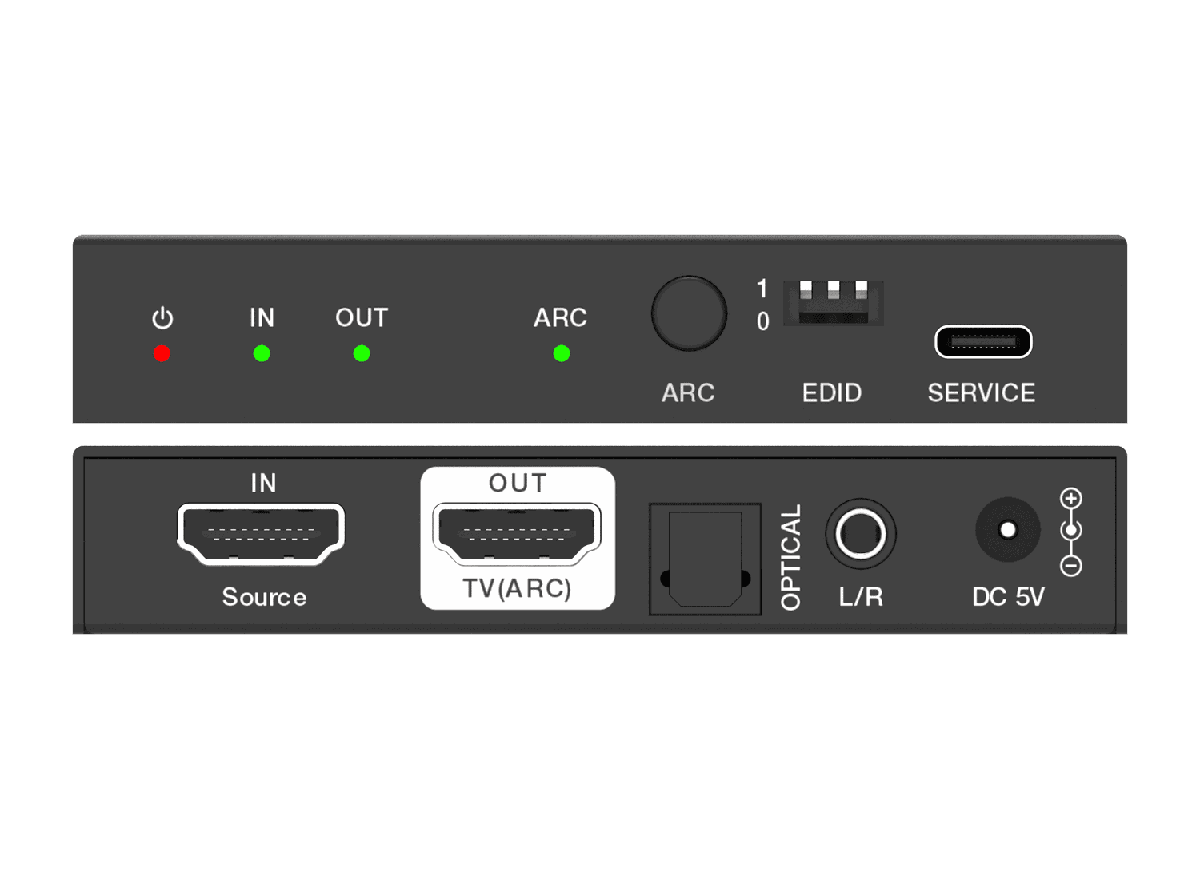

Inputs	1 x Source IN [HDMI Type A, 19-pin female]
Outputs	1 x TV(ARC) OUT [HDMI Type A, 19-pin female] 1 x L/R [3.5mm Stereo mini-jack] 1 x OPTICAL [S/PDIF, female]
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:0
Color Depth	8/10/12bit
