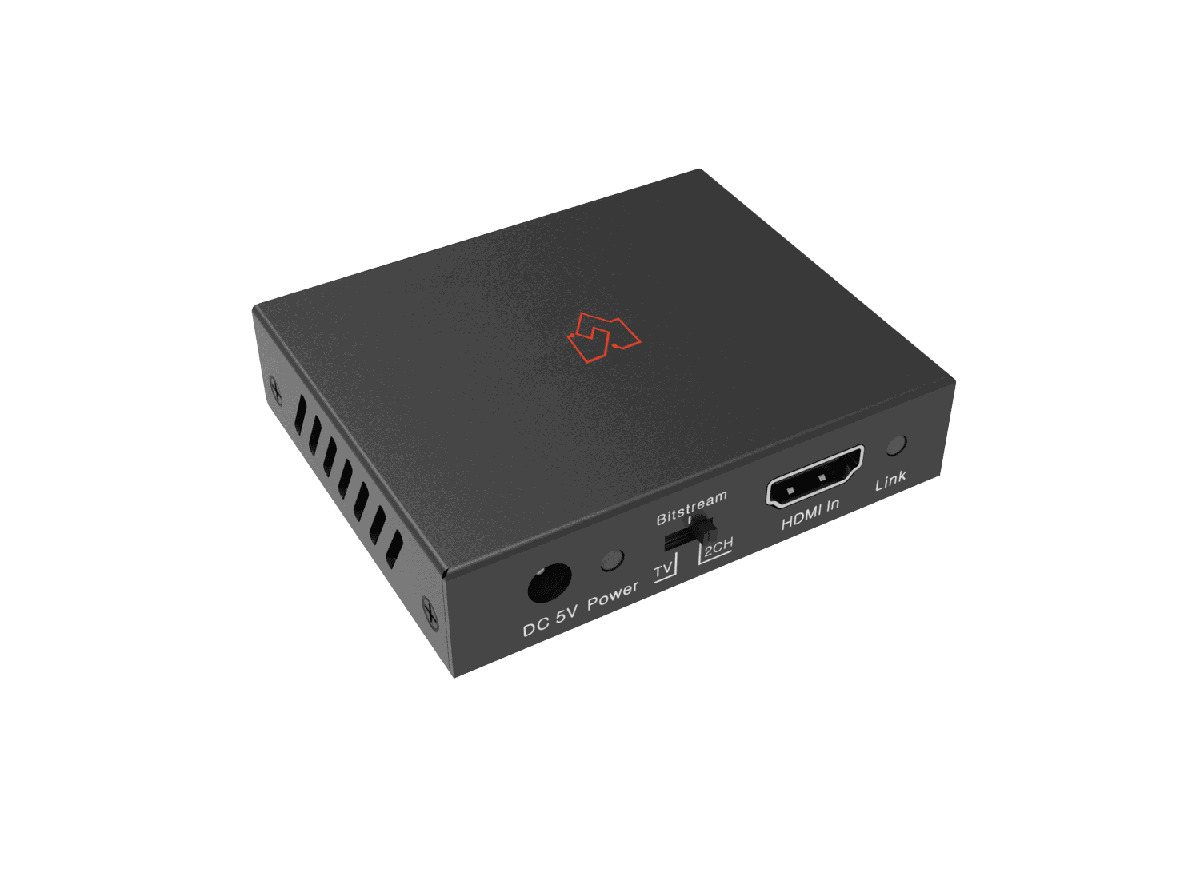

VigilLink VLHA-DEM 4K HDMI Audio Extractor with Optical and Analog Stereo

The VLHA-DEM takes audio off an HDMI source and presents it on a digital optical output and an analog stereo pair, while the video continues out of the HDMI port at up to 4K2K@50/60Hz (YUV 4:4:4). It is the small box that gets sound from a streaming stick or a player into an amplifier that has no HDMI input.

HDMI audio passes through in its original form, including LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio, at sampling rates to 192kHz. The optical output carries LPCM 2CH, Dolby Digital 2/5.1, and DTS 2/5.1. HDR pass-through, HDCP 2.2, and CEC bypass are all supported.

HDCP Compliance	HDCP2.2and HDCP 1.4
Video Bandwidth	18Gbps
Video Resolution	Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and 1080P3D@60Hz
Inputs	1x HDMI TypeA [19-pin female]
Outputs	Ix HDMI Type A[19-pin female] 1x L/R Audio Out [3.5mm Stereo Mini-jack] 1x Optical Out[S/PDIF]
HDMI Audio Formats (Pass-through)	LPCM 2/5.1/7.1 CH, Dolby Digital, DTS5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats	LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH
L/R Audio Formats	Analog Stereo 2CH
