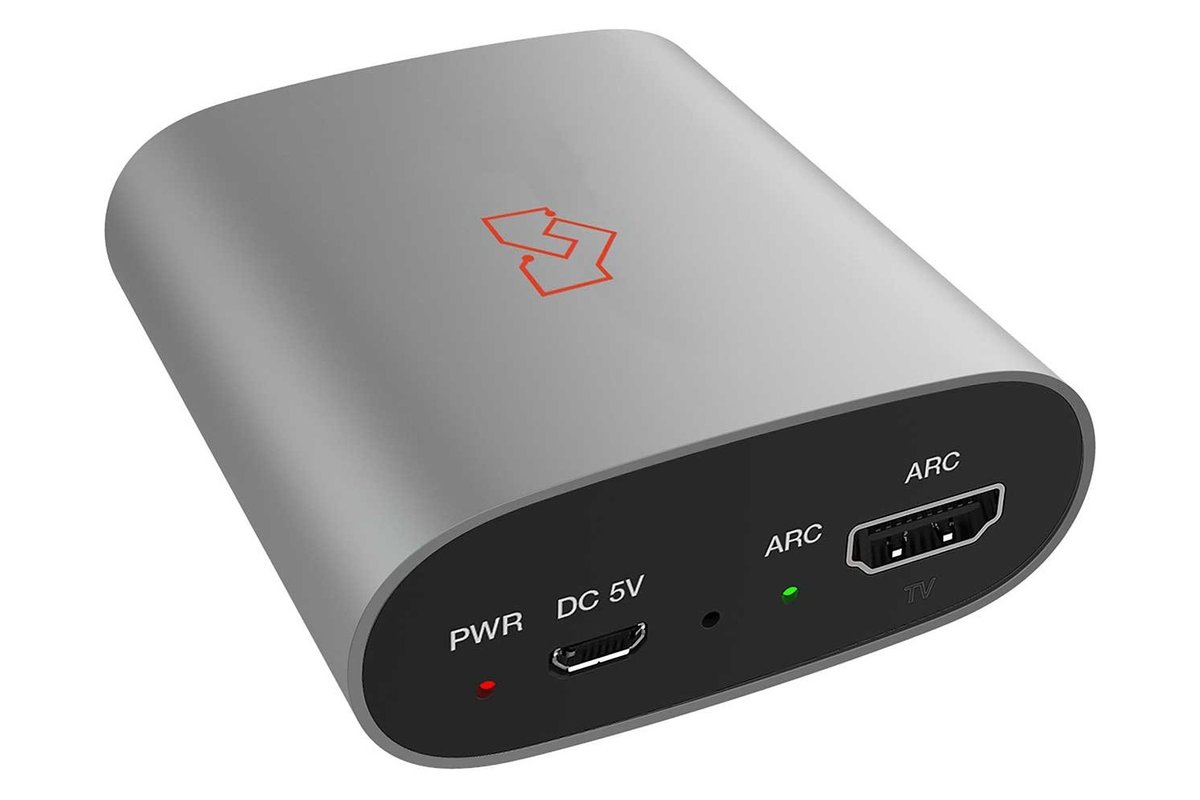

VigilLink VLHA-REXD HDMI ARC Audio Extractor with Downmix

The VLHA-REXD extracts the audio return channel from an ARC-enabled television and delivers two-channel analog stereo on a 3.5mm jack and RCA connectors. Unlike a plain extractor it downmixes PCM 2.0, Dolby 5.1, and DTS 5.1 sources, so multichannel content still reaches a stereo amplifier.

It is HDMI 1.3 compliant with one HDMI input, one 3.5mm L/R output, and two RCA outputs. CEC support means volume stays on the television remote.

HDMI Compliance	HDMI 1.3 or above

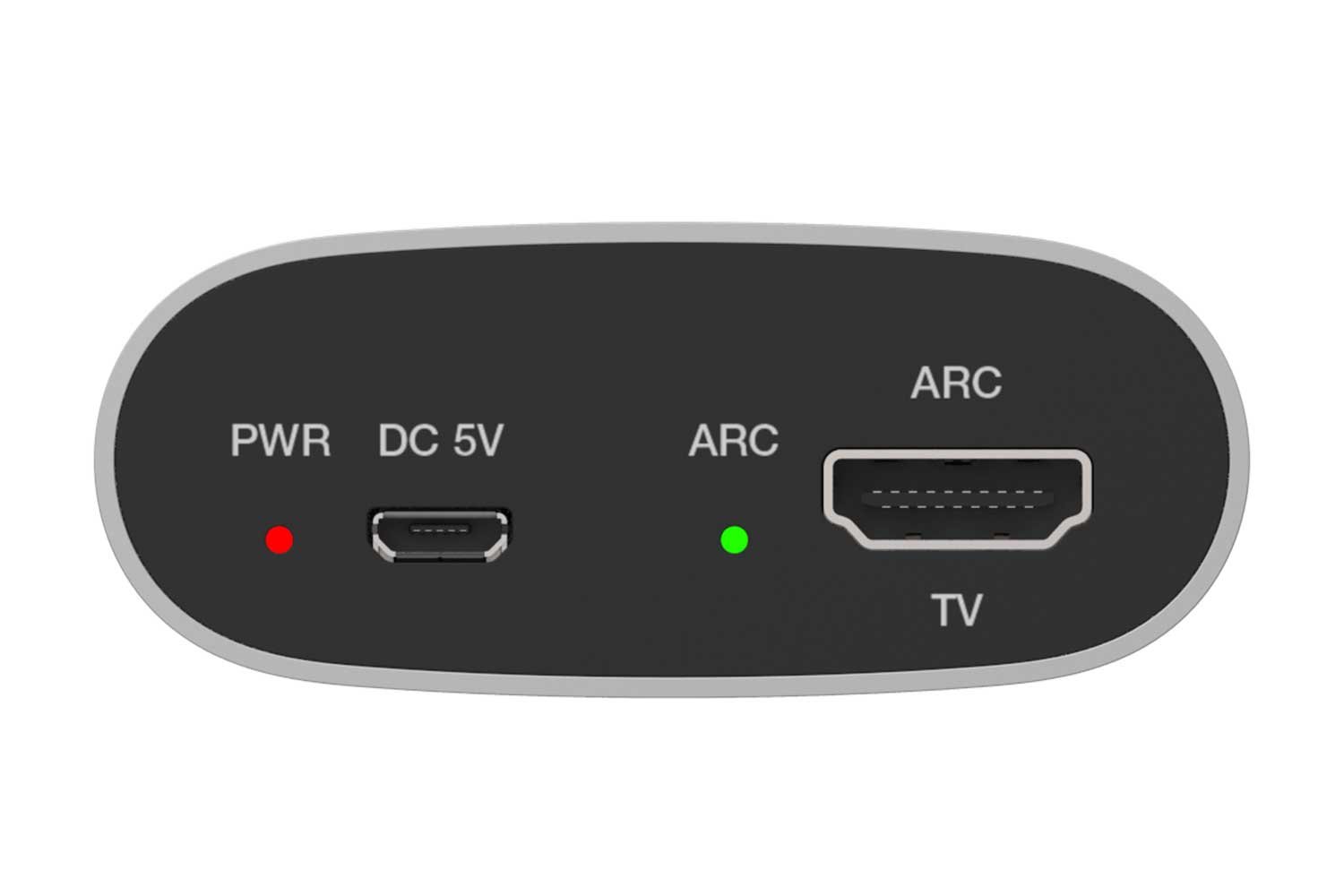

Input	1x HDMI Type A [19-pin female] 1x Micro USB
Output	1x L/R Audio Out [RCA] 1x 3.5mm L/R
L/R Audio Formats	Analog Stereo 2CH
Frequency Response	20Hz~20kHz+/-1dB
Housing	Aluminum Enclosure
Dimensions	70mm[W] x 65mm[D] x 27mm[H]
Weight	80g
