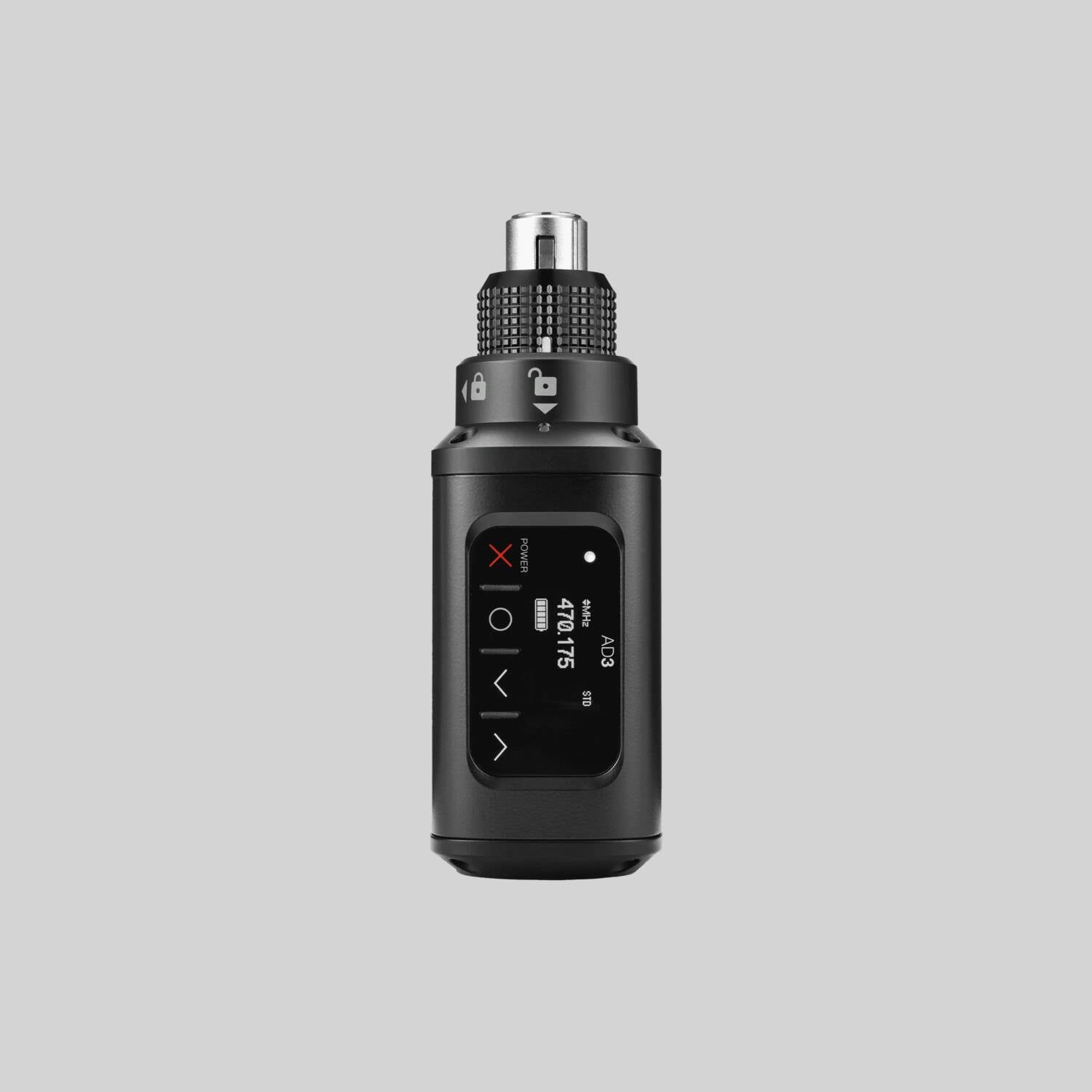

Shure AD3 Axient Digital Plug-On Wireless Transmitter

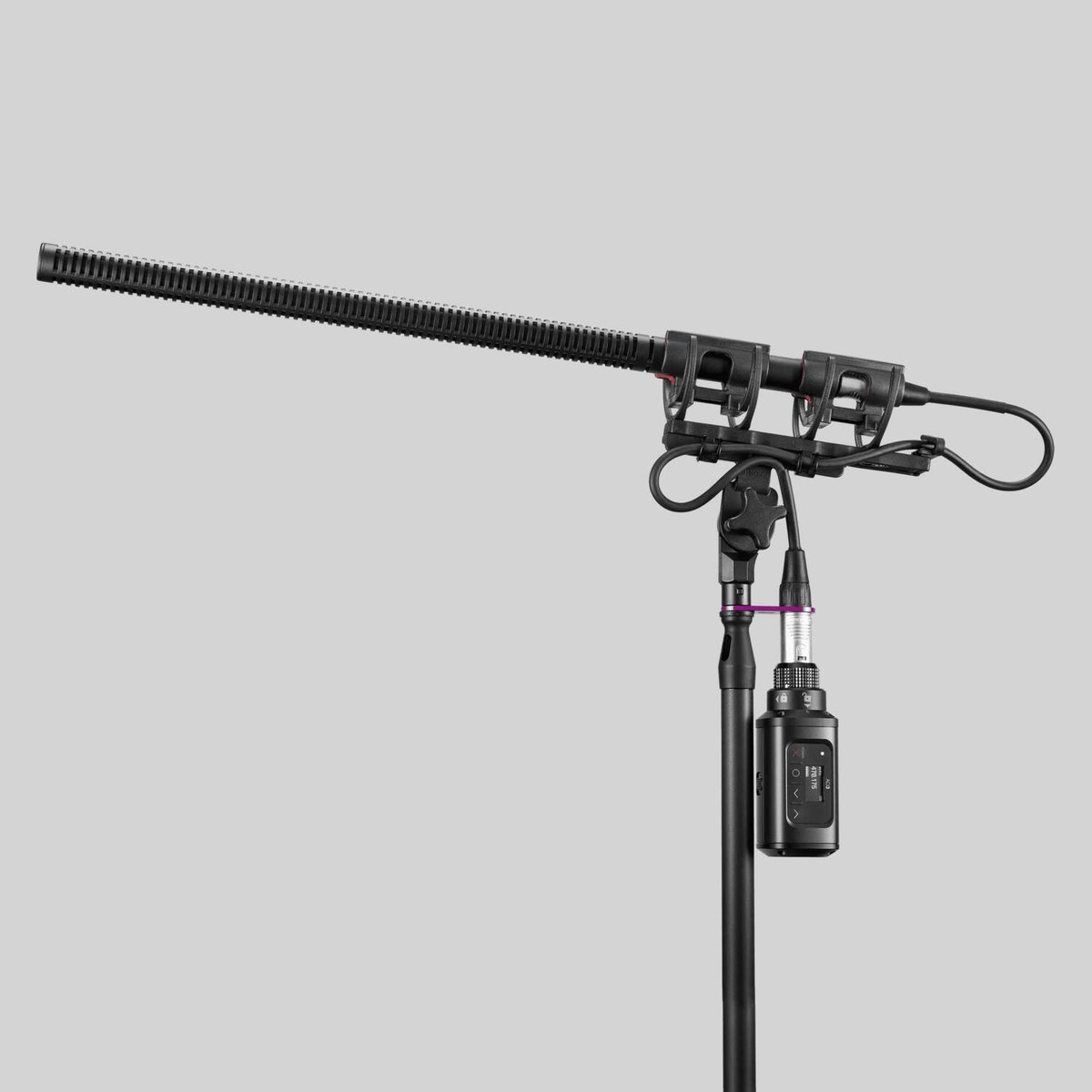

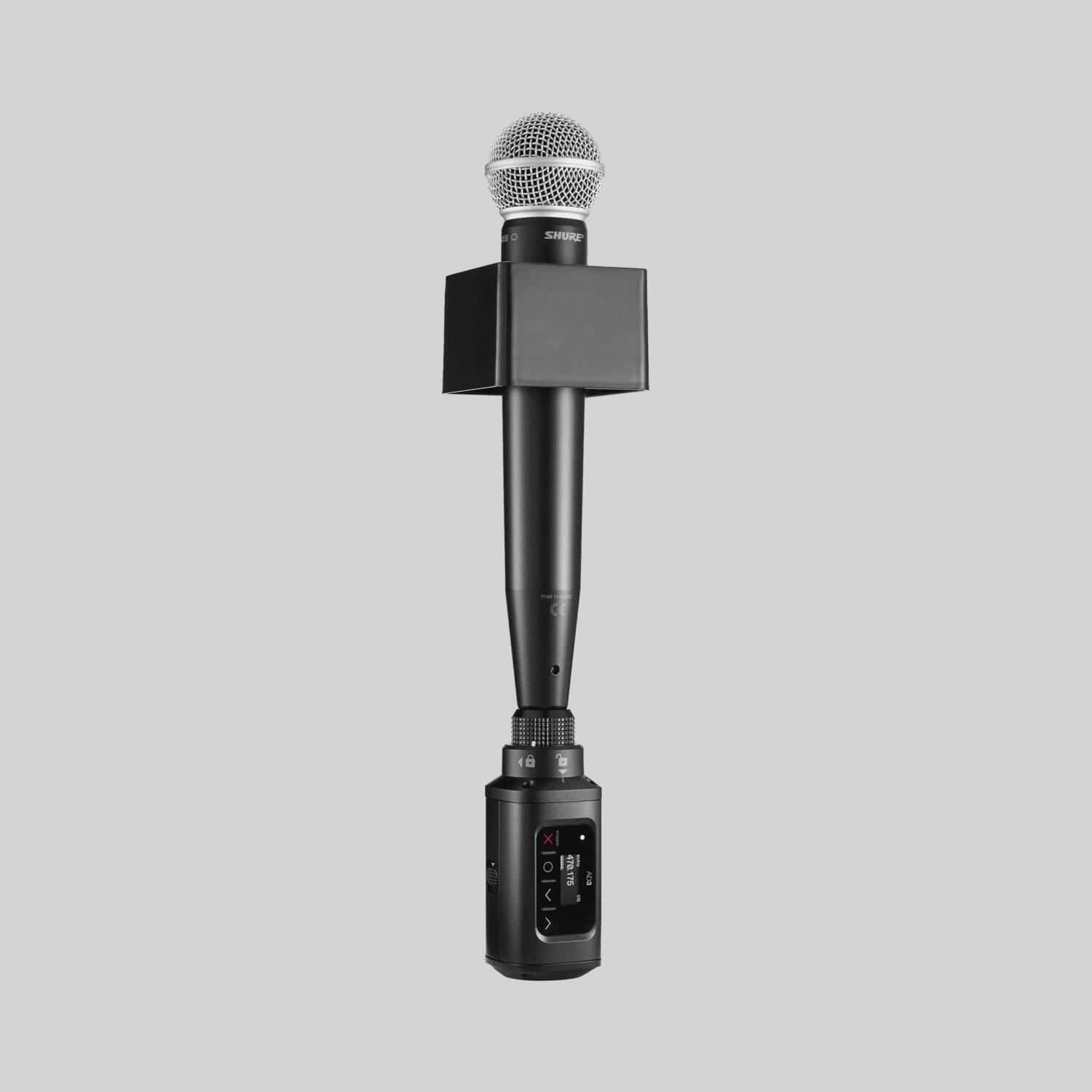

The AD3 is an Axient Digital plug-on transmitter that clamps onto any wired microphone and turns it into a wireless one, with the RF performance and wide tuning of Shure's flagship digital platform. A patent-pending locking XLR connector holds the mic wobble-free, switchable phantom power feeds condensers when needed, and automatic input staging sets the gain so the signal arrives clean. It is built for field reporting, film and television capture, and interviews where the wired mic is already the right tool and only the cable needs to disappear.

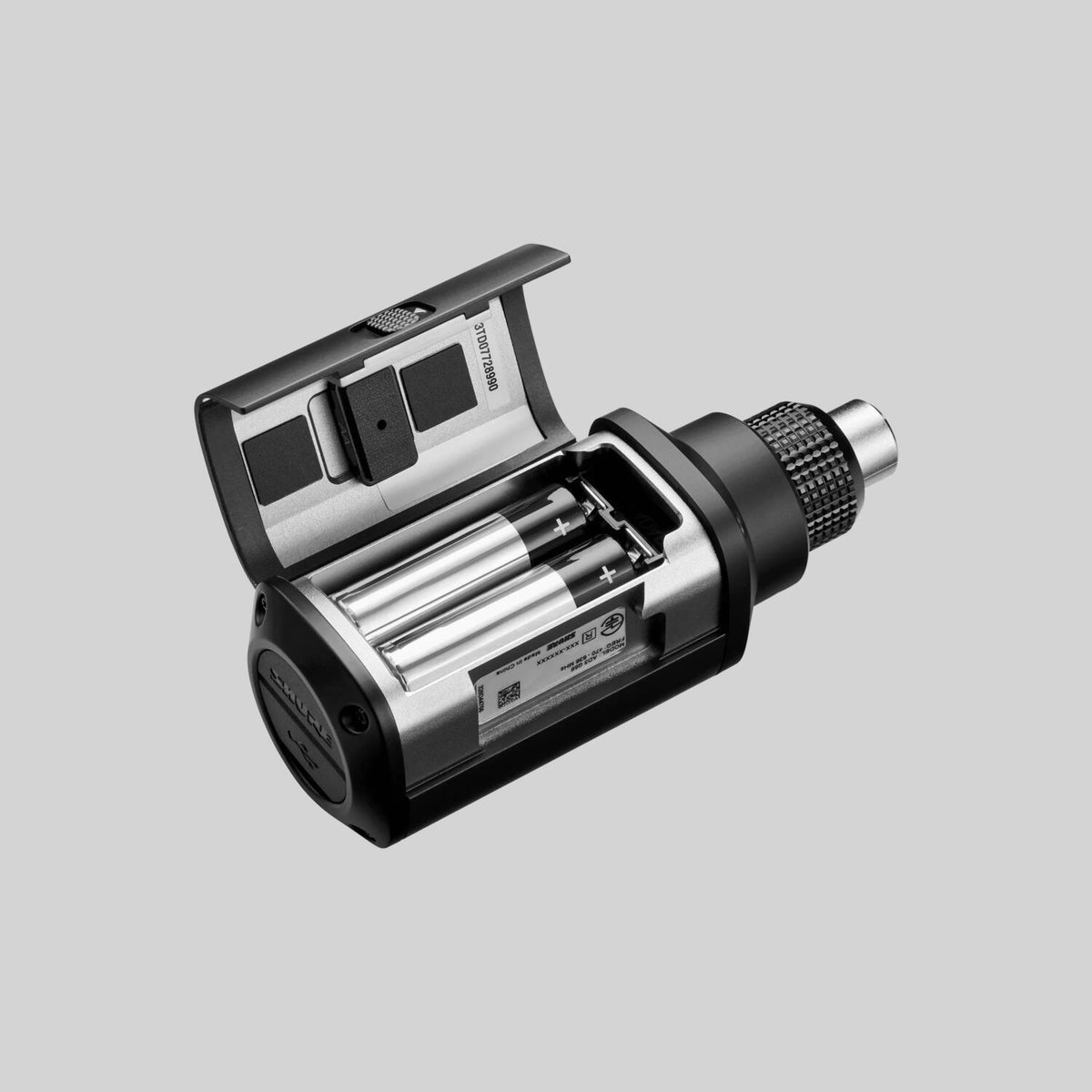

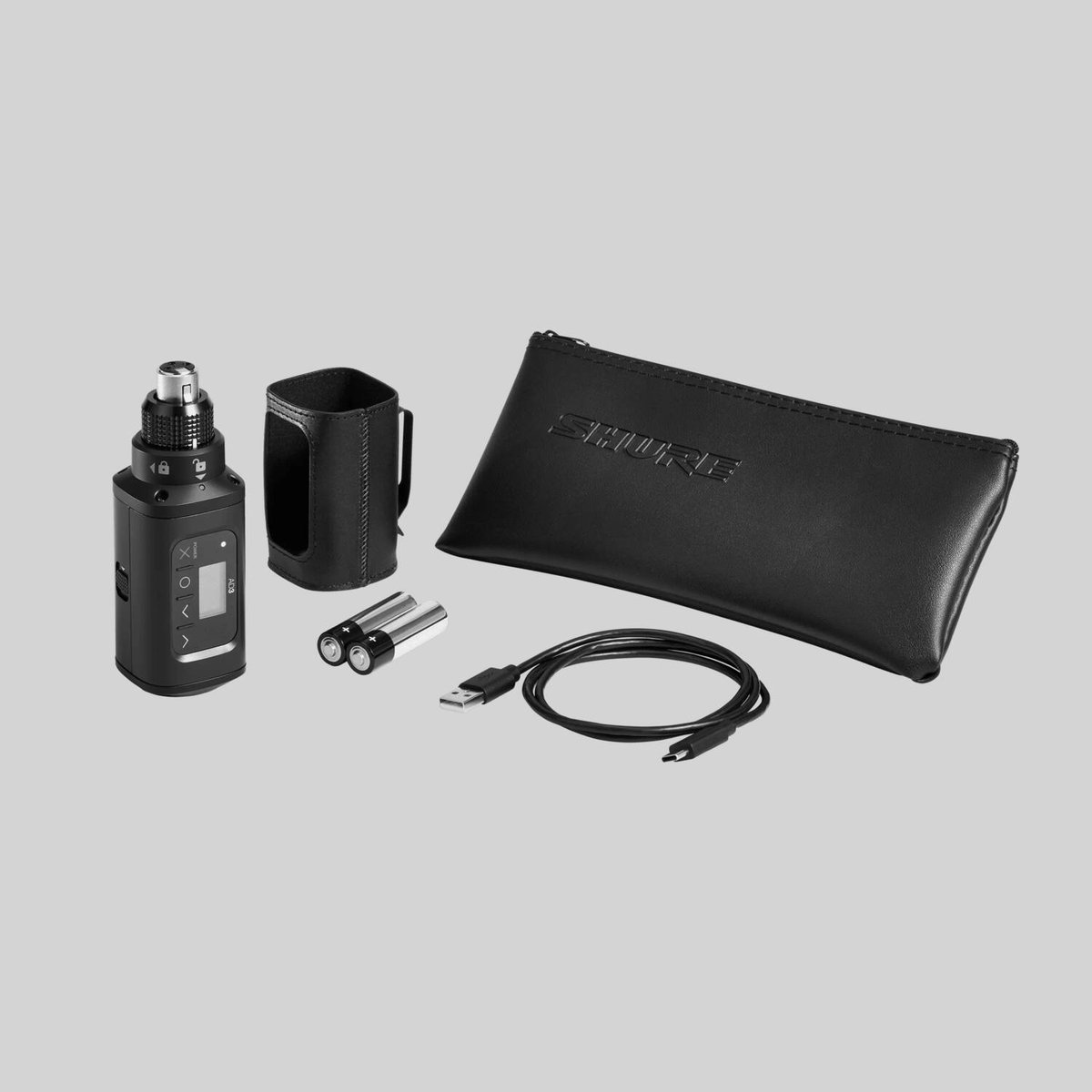

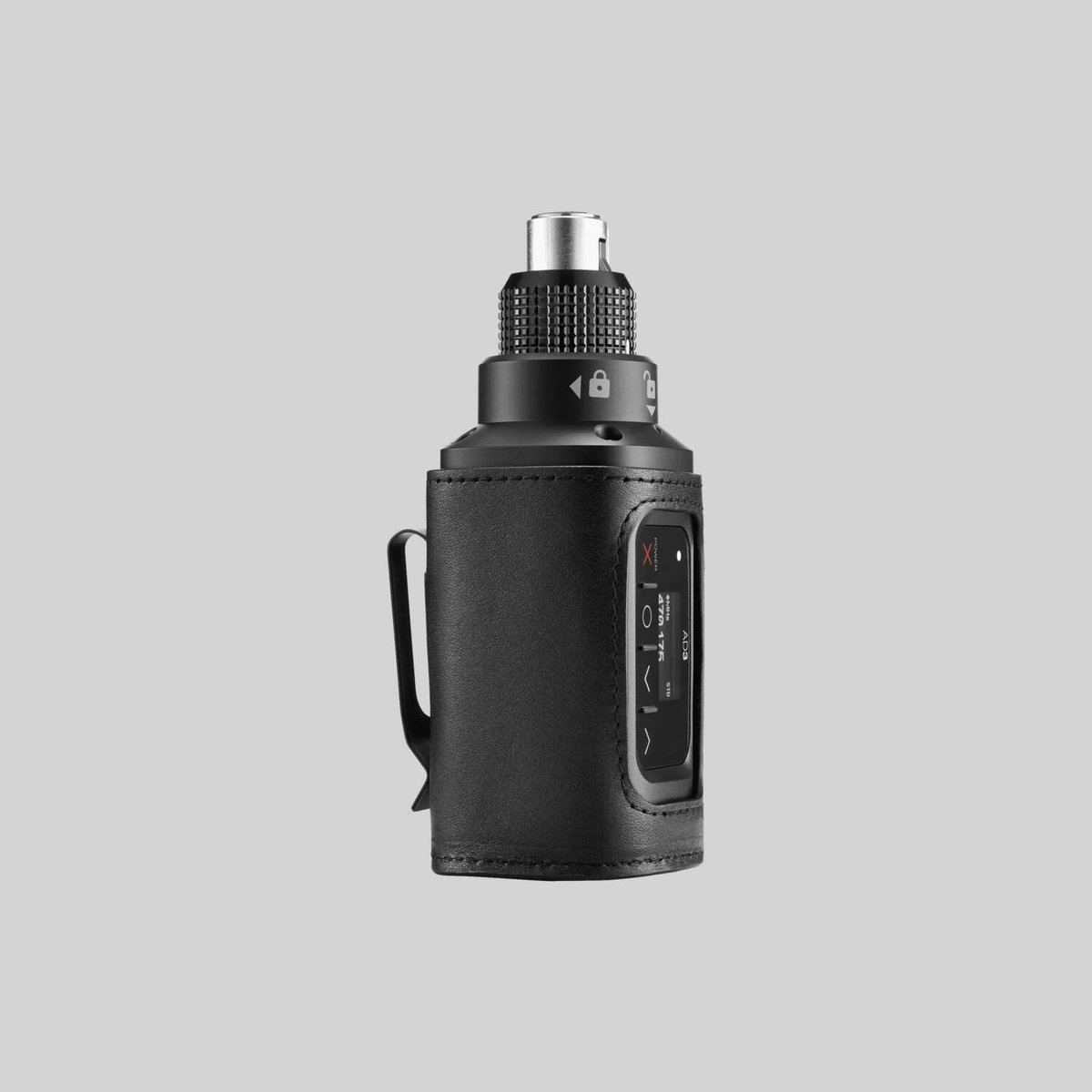

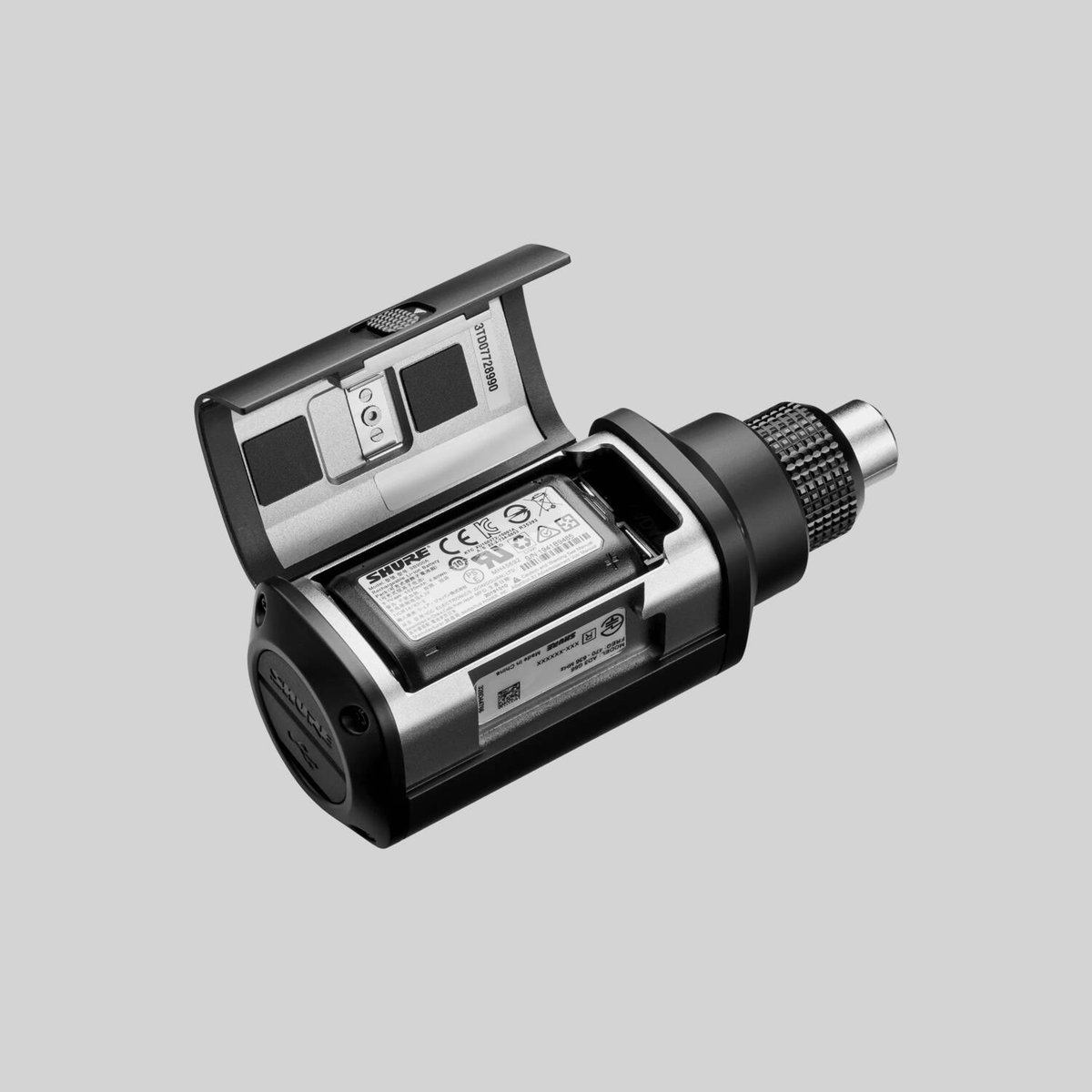

An OLED display and simple menu keep control local, and the rugged metal body resists dust and moisture on location. Transmission runs with AES 256-bit encryption for secure audio over a 300 foot line-of-sight range, and selectable Standard and High Density modes trade low latency for channel count as the RF environment demands. It powers from two AA batteries or an optional Shure SB900B rechargeable pack good for up to 8 hours, and charges over USB-C. The box includes 2 AA batteries, a USB-A to USB-C cable, a belt clip/pouch, and a zippered storage bag.
- Storage Temperature Range-40°C (-40°F) to 74°C (165°F)
- RF Output - Channel-to-Channel SpacingStandard Mode: 350 kHz
- Audio Input - Connector3-pin female XLR
- Audio Input - Configurationbalanced
- Audio Input - ImpedancePad -12 dB: 26.64 kΩ; 0 dB: 6.64 kΩ; Boost 12 dB: 6.64 kΩ
| Mic Offset Range | -12 to 21 dB (in 1 dB steps) |
|---|---|
| Battery Type | Shure SB900 series Rechargeable Li-Ion or LR6 AA batteries 1.5 V |
| Battery Runtime (@ 10 mW) | Shure SB900C: > 10.5 hours; alkaline: > 7 hours |
| Dimensions | 126 mm x 44.5 mm x 44.5 mm (5.0 in. x 1.8 in. x 1.8 in.) H x W x D |
| Weight | Without Battery: 240 g (8.0 oz.); with AA batteries: 263 g; with Shure rechargeable battery: 280 g |
| Housing | Cast Metal |
| Operating Temperature Range | -10°C (-14°F) to 50°C (122°F) |
| Storage Temperature Range | -40°C (-40°F) to 74°C (165°F) |
| Audio Input - Connector | 3-pin female |
| Audio Input - Configuration | balanced |
| Audio Input - Impedance | Pad -12 dB: 26.64 kΩ; 0 dB: 6.64 kΩ; Boost 12 dB: 6.64 kΩ |
| Audio Input - Maximum Input Level (1 kHz at 1% THD) | Pad -12 dB: 21 dBV; 0 dB: 9 dBV; Boost 12 dB: -3 dBV |
| Audio Input - Preamplifier Equivalent Input Noise (EIN) (System Gain Setting ≥ +20) | -115 dBV, A-weighted, typical |
| Audio Input - | +48 V (7 mA maximum), +12 V (15 mA maximum) |
| Audio Input - High Pass Filter | Two-pole (12 dB per octave), cut off frequency selectable from 40 to 240 in 20 Hz increments |
| RF Output - Antenna Type | Dipole |
| RF Output - Impedance | 50 Ω |
| RF Output - Occupied Bandwidth | <200 kHz |
| RF Output - Channel-to-Channel Spacing | Standard Mode: 350 kHz; High Density Mode: 125 kHz (varies by region) |
| RF Output - Modulation Type | Shure Axient Digital Proprietary |
| RF Output - Power | 2 mW, 10 mW, 35 mW (varies by region) |
| RF Output - Specific Absorption Rate (SAR) | < 0.12 W/kg |
