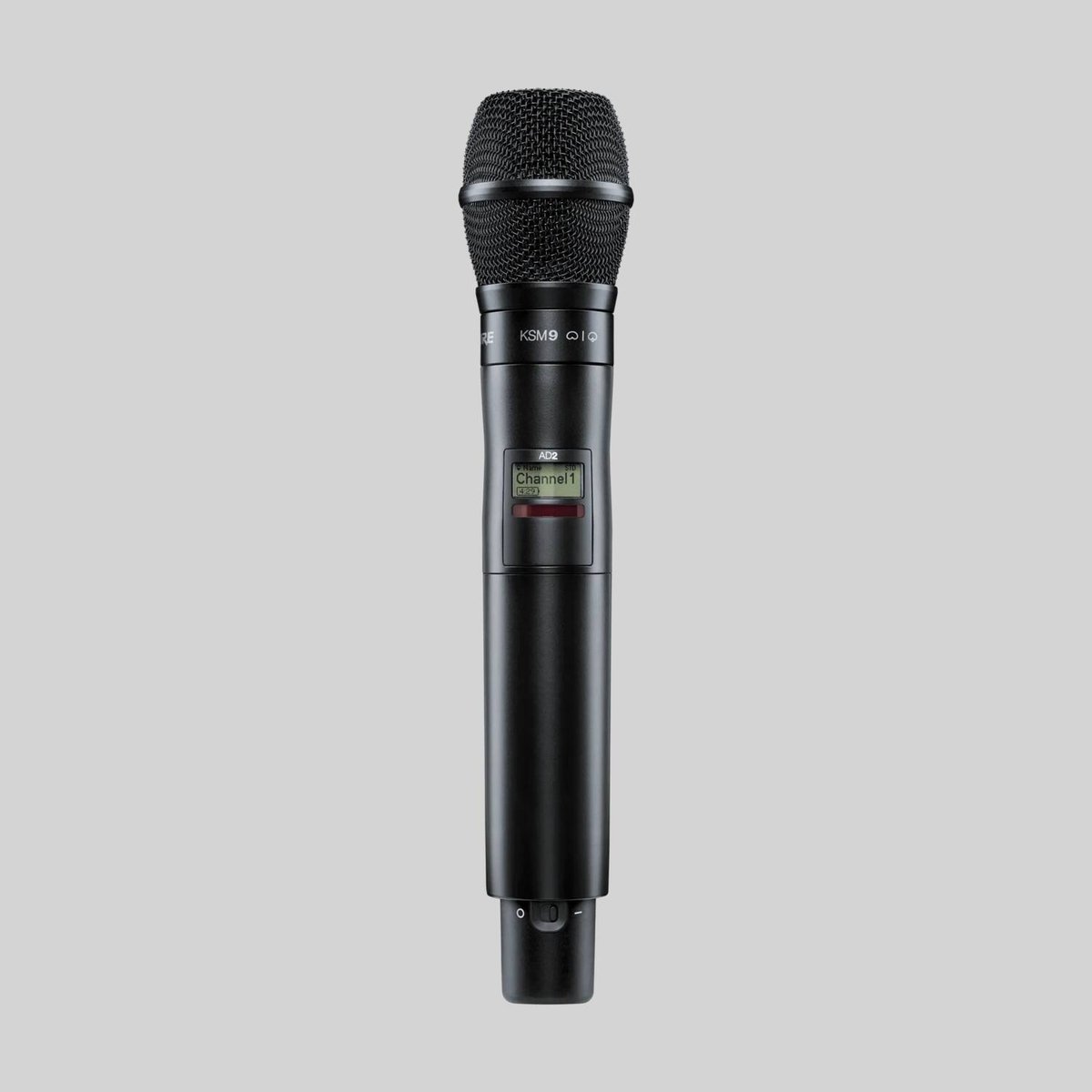

Shure AD2/K9B Handheld Transmitter

The AD2/K9B is the handheld transmitter for Shure's Axient Digital platform, the company's flagship professional wireless. This version carries the KSM9 dual-pattern cartridge, a premium condenser that switches between cardioid and supercardioid so an engineer can match the pattern to the stage, and it wears the low-reflectivity black finish for broadcast and theater. Axient Digital delivers reference-grade audio with the wide tuning and dense channel counts demanded by touring, network television, and large-scale worship.

Selectable RF output of 2, 10, or 35 mW lets you trade range for channel count, and two transmission modes, Standard and High-Density, cover everything from maximum coverage to the highest system counts in crowded RF. Wide tuning of up to 184 MHz, AES-256 encryption for secure transmission, and a low-profile lockable power switch round out the feature set, while external contacts allow docked charging alongside the two included AA batteries. It is offered in the G57, K54, and X55 bands, and ships with a microphone clip, zippered bag, two AA batteries, and a user guide.

  • Dimensions256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia.
  • Storage Temperature Range-29°C (-20°F) to 74°C (165°F)
  • RF Output: Channel-to-Channel SpacingStandard Mode: 350 kHz
  • Audio Input: ConfigurationUnbalanced
  • RF Output: Antenna TypeIntegrated Single Band Helical
Mic Offset Range-12 to 21 dB (In 1 dB steps)
Battery TypeShure SB900C Rechargeable Li-Ion or LR6 AA batteries 1.5 V
Battery Runtime@ 10 mW; Shure SB900C: up to 11 hours; alkaline: up to 8 hours
Dimensions256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia.
Weight340 g (12.0 oz.), Without Battery
HousingCast Aluminum
Operating Temperature Range-18°C (0°F) to 50°C (122°F)
Storage Temperature Range-29°C (-20°F) to 74°C (165°F)
Audio Input: ConfigurationUnbalanced
RF Output: Antenna TypeIntegrated Single Band Helical
RF Output: Occupied Bandwidth<200 kHz
RF Output: Channel-to-Channel SpacingStandard Mode: 350 kHz; High Density Mode: 125 kHz (varies by region)
RF Output: Modulation TypeShure Axient Digital Proprietary
RF Output: Power2 mW, 10 mW, 35 mW (varies by region)

Full specifications on the manufacturer’s site
