Shure AD4Q-US

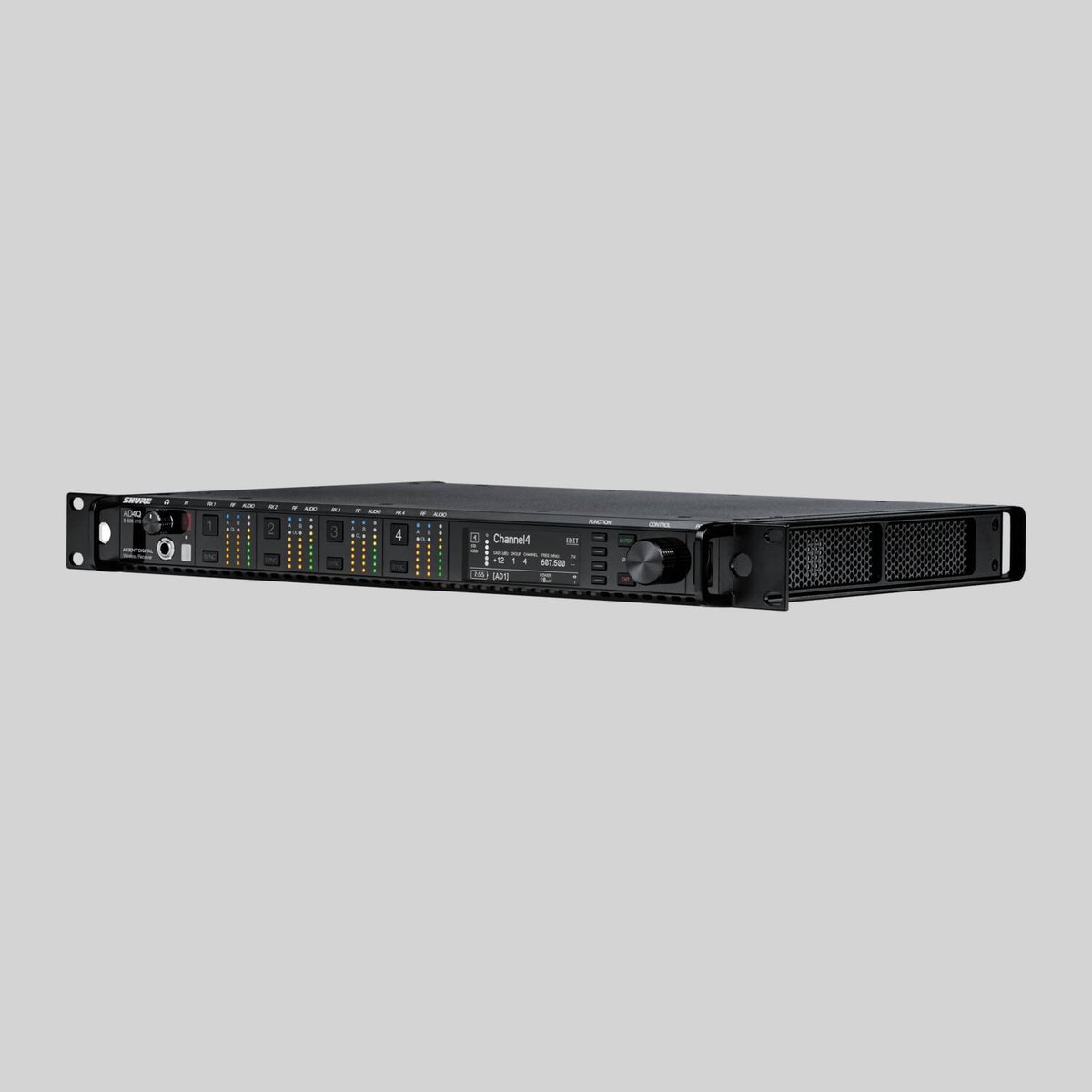

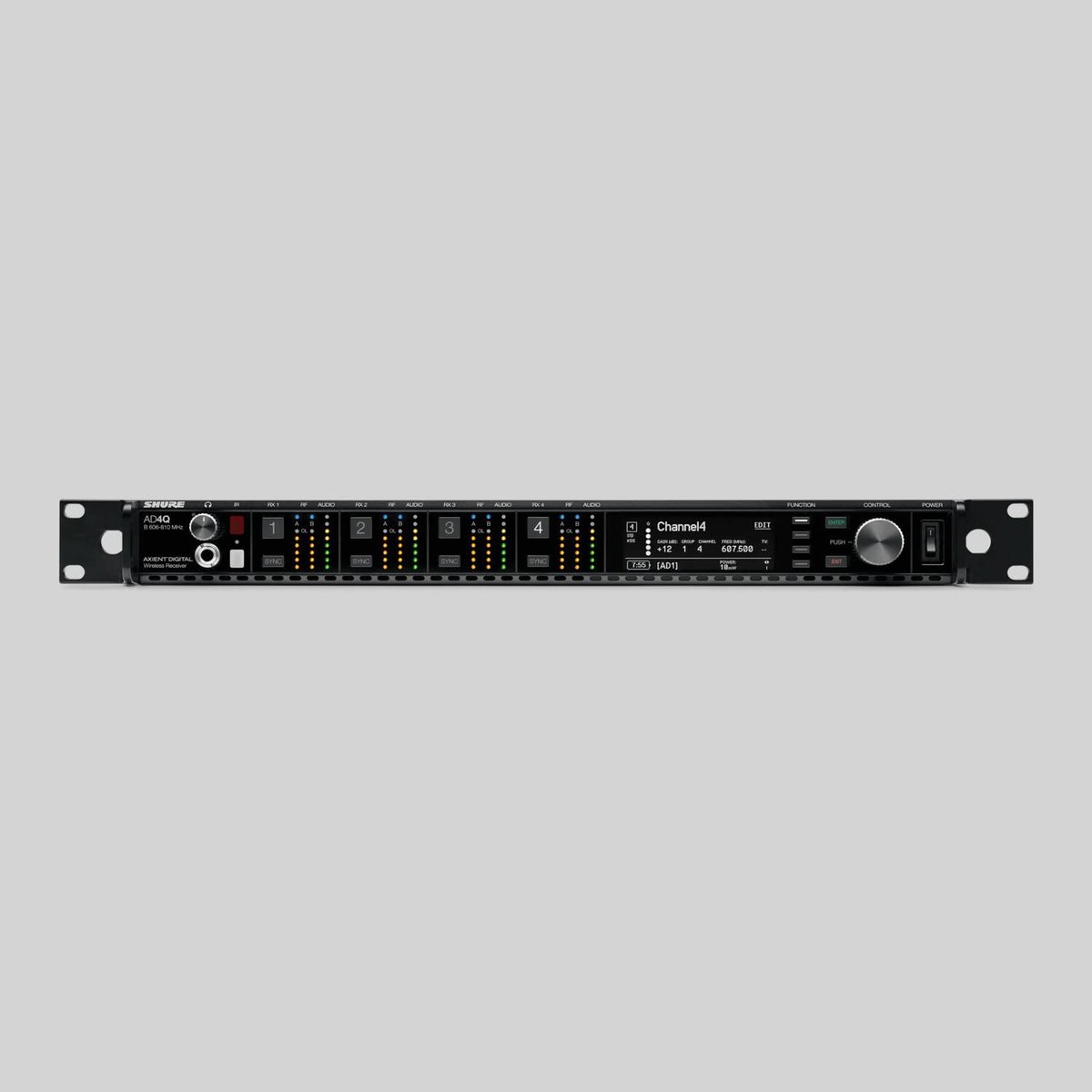

The Shure AD4Q-US is the four-channel receiver at the heart of an Axient Digital wireless rig, engineered for spectral efficiency in the most demanding RF environments. It is compatible with all AD and ADX series transmitters and pulls four channels into a single rack space with true digital diversity per channel for drop-out resistance. Wide tuning, low latency, and High Density mode let large channel counts coexist in tight spectrum.

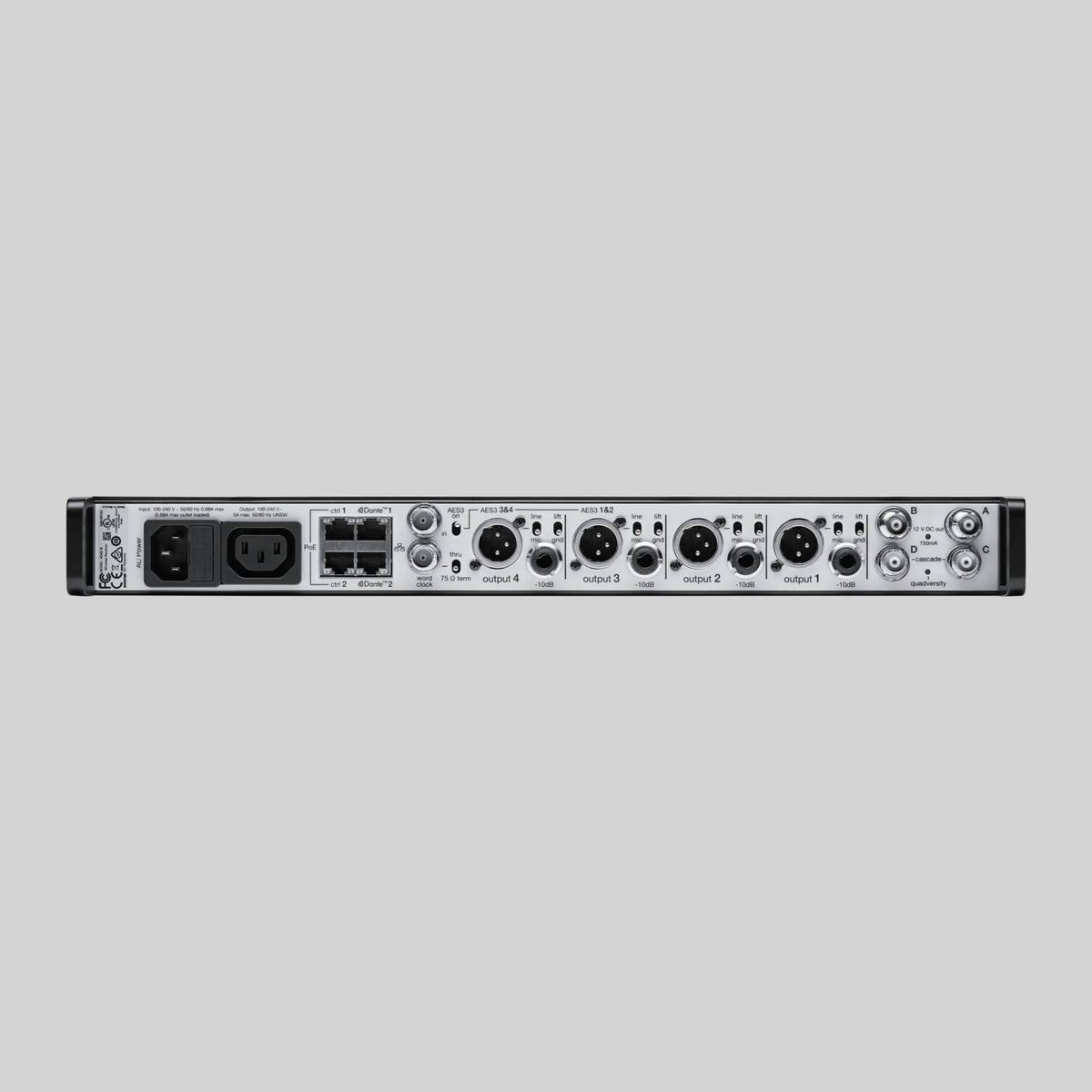

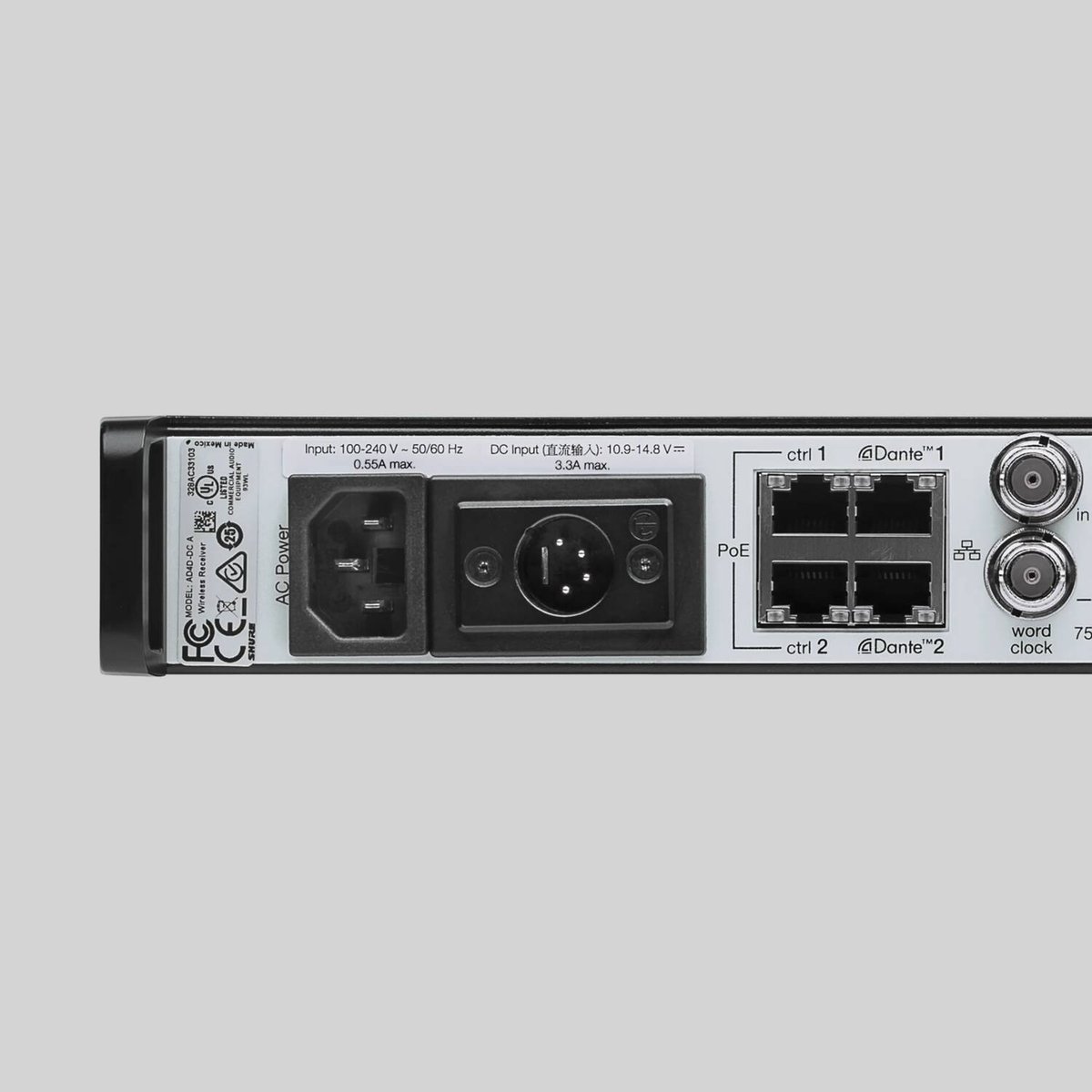

Quadversity mode lets four antennas cover a channel for extended reach and better RF signal-to-noise, while networked control runs through Wireless Workbench software and the ShurePlus Channels iOS app. Outputs cover switchable XLR and AES3 plus networked AES67 and Dante over a configurable Ethernet switch for redundant digital audio, and a front-panel headphone jack enables Dante Cue and Browse monitoring. It ships with locking power and jumper cables, a BNC bulkhead adapter, coaxial antenna and BNC cable assemblies, Ethernet cables, a rackmount kit, and a US power cord.
