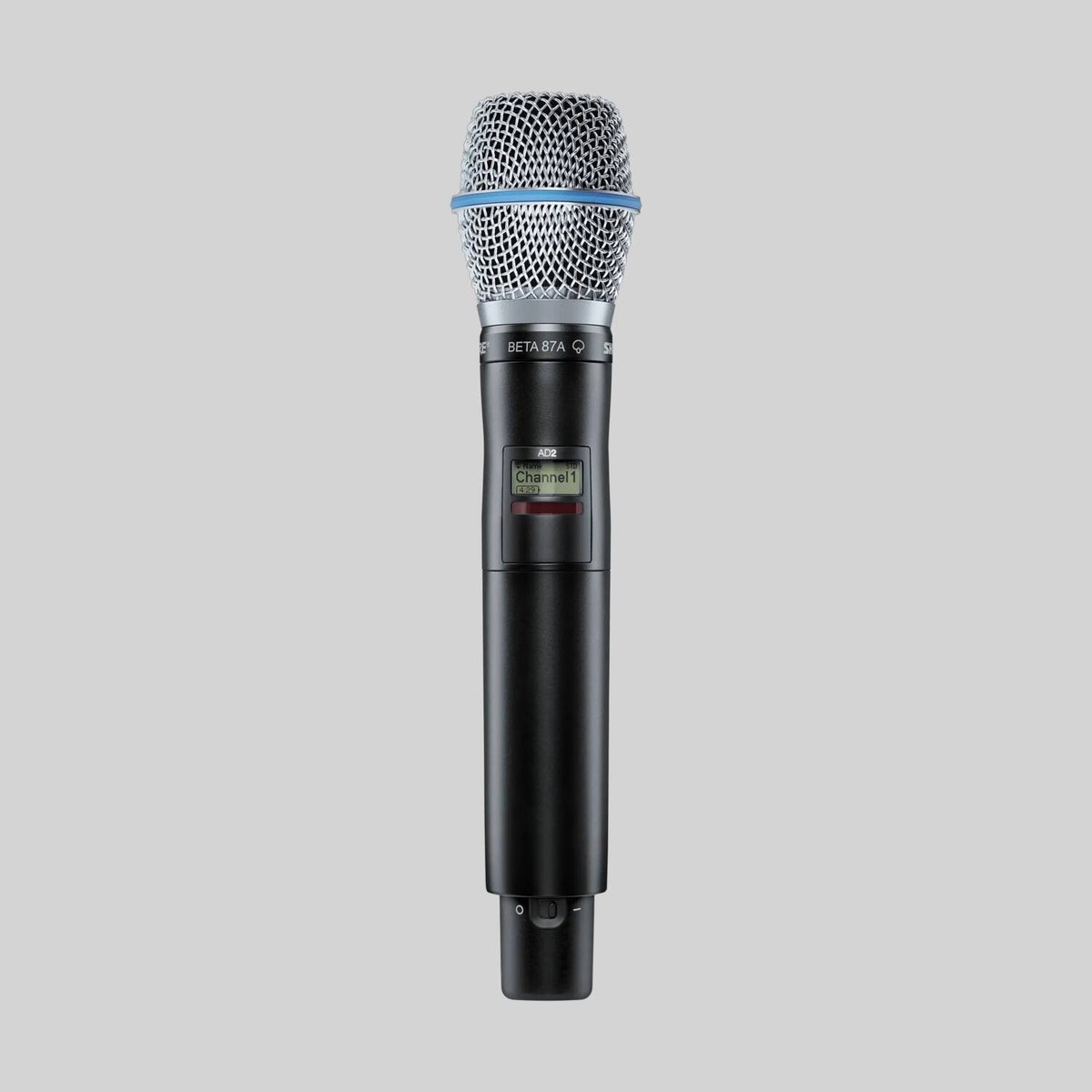

Shure AD2/B87A Handheld Wireless Transmitter
The Shure AD2/B87A is a handheld wireless transmitter for Axient Digital systems, topped with the fixed BETA 87A supercardioid electret condenser capsule. The condenser element gives a vocal the detail and airy top end singers reach for, while the supercardioid pattern rejects monitors and stage wash to hold back feedback. Two transmission modes cover different jobs: Standard mode for the widest coverage, and High Density mode to pack the most channels into a crowded RF environment.
Built to survive a working stage, the AD2/B87A carries a low-profile lockable power switch and 256-bit AES encryption for secure, private transmission. It runs on two AA batteries or the Shure SB900B rechargeable lithium-ion pack, and external contacts allow docked charging without opening the housing. It ships in G57 (470-616 MHz), K54 (606-663 MHz), or X55 (941-960 MHz) tuning bands, and includes a microphone clip, zipper bag, two AA batteries, and a user guide.
- Dimensions256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia.
- Storage Temperature Range-29°C (-20°F) to 74°C (165°F)
- RF Output: Channel-to-Channel SpacingStandard Mode: 350 kHz
- Audio Input: ConfigurationUnbalanced
- RF Output: Antenna TypeIntegrated Single Band Helical
| Mic Offset Range | -12 to 21 dB (In 1 dB steps) |
|---|---|
| Battery Type | Shure SB900C Rechargeable Li-Ion or LR6 AA batteries 1.5 V |
| Battery Runtime | @ 10 mW; Shure SB900C: up to 11 hours; alkaline: up to 8 hours |
| Dimensions | 256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia. |
| Weight | 340 g (12.0 oz.), Without Battery |
| Housing | Cast Aluminum |
| Operating Temperature Range | -18°C (0°F) to 50°C (122°F) |
| Storage Temperature Range | -29°C (-20°F) to 74°C (165°F) |
| Audio Input: Configuration | Unbalanced |
| RF Output: Antenna Type | Integrated Single Band Helical |
| RF Output: Occupied Bandwidth | <200 kHz |
| RF Output: Channel-to-Channel Spacing | Standard Mode: 350 kHz; High Density Mode: 125 kHz (varies by region) |
| RF Output: Modulation Type | Shure Axient Digital Proprietary |
| RF Output: Power | 2 mW, 10 mW, 35 mW (varies by region) |
