MuxLab 100528 HDMI to HDMI with Audio De-embedder, 4K/60

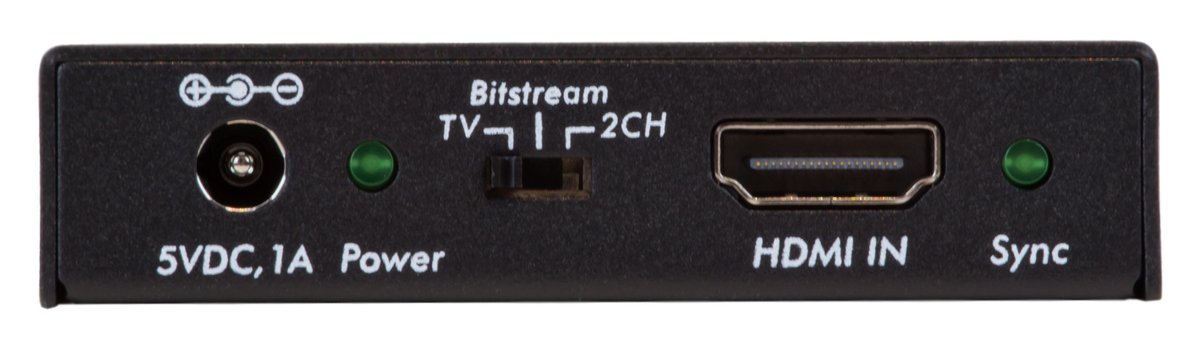

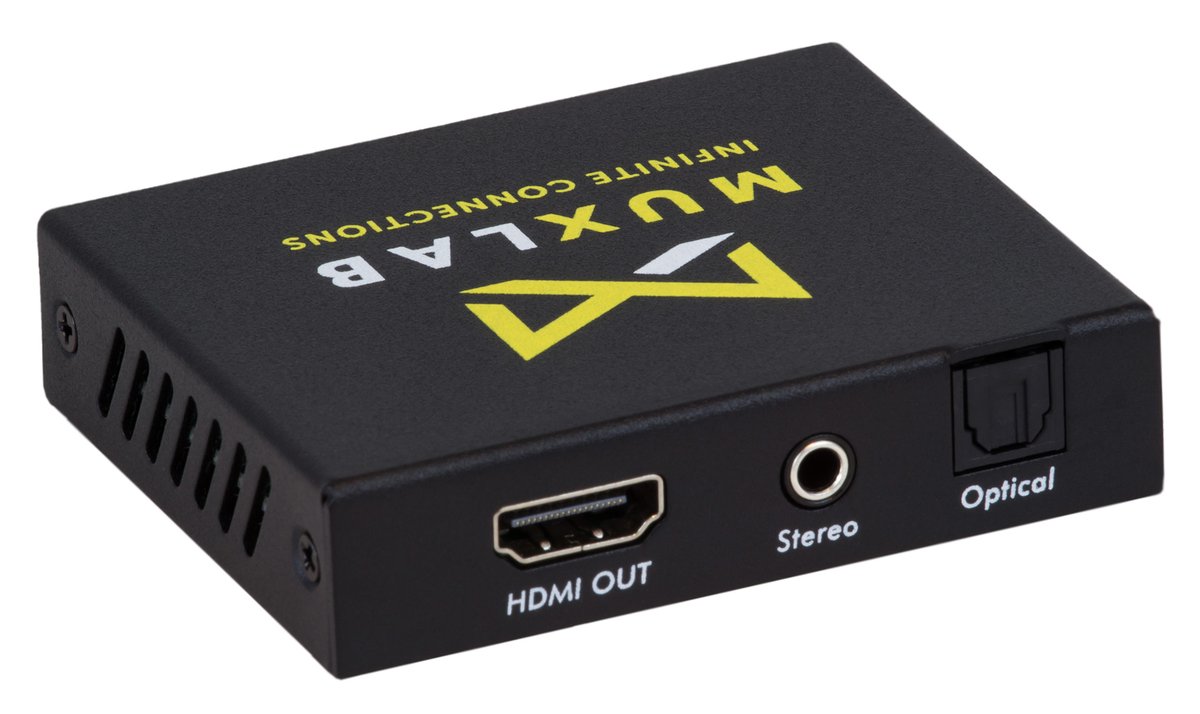

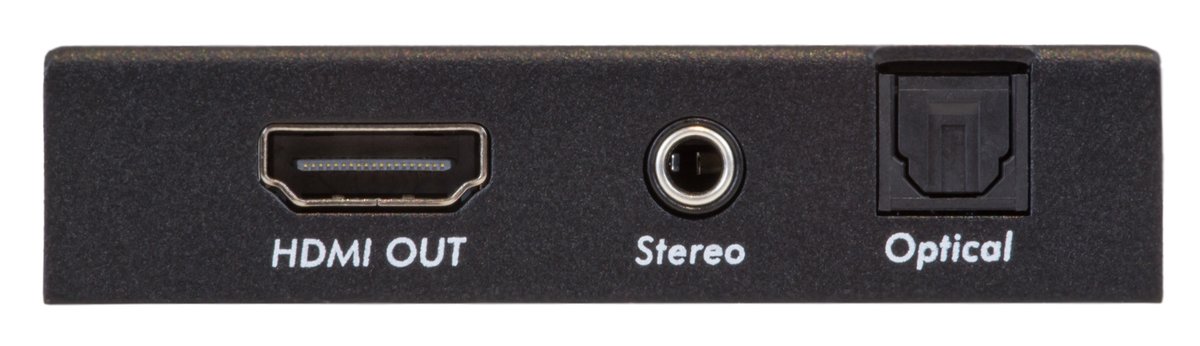

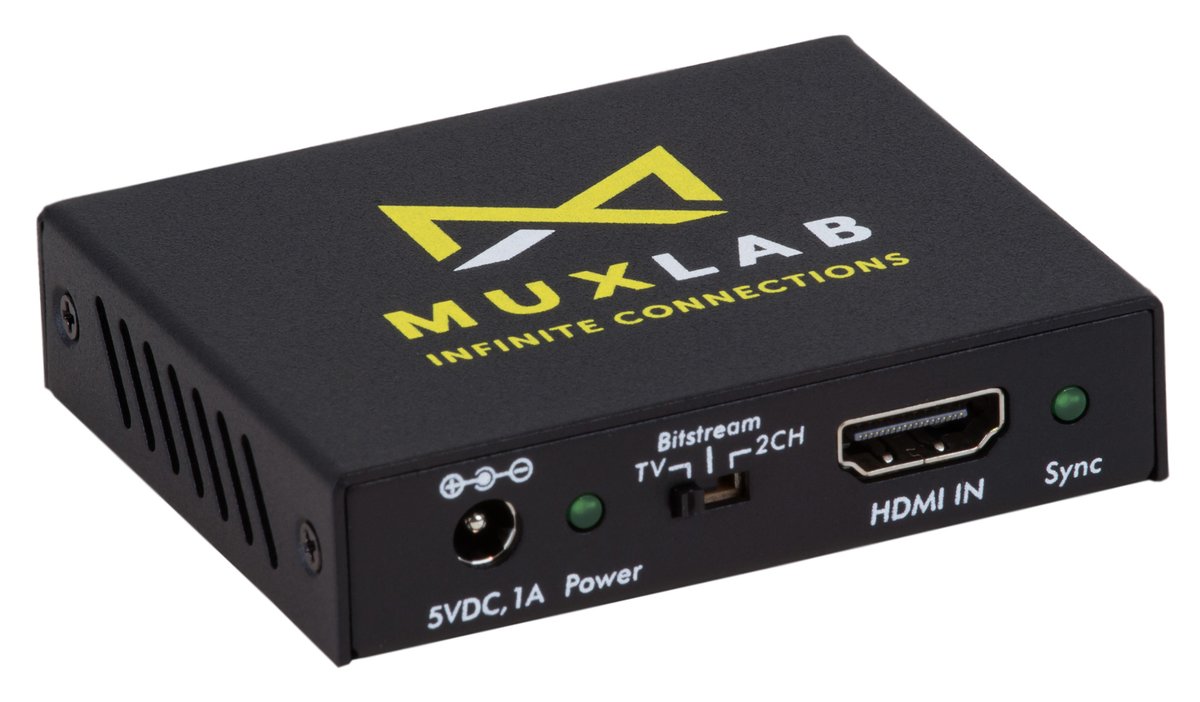

The 100528 sits between an HDMI 2.0 source and a display, passing video through at up to 4K at 60Hz with 8-bit color while extracting the audio to a S/PDIF TosLink port and a 3.5mm 2-channel analog port. That gets sound to an amplifier or soundbar that has no HDMI input.

The HDMI path carries LPCM 7.1CH, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, and DTS:X. Extraction to the optical output covers LPCM, Dolby Digital, Dolby Digital Plus, DTS, and Atmos depending on the source stream. The unit is HDCP 2.2 compliant.
