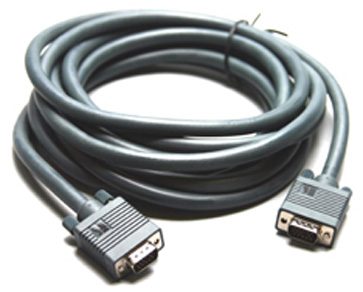

Kramer C-GM/GM 15-pin HD to 15-pin HD Cables

Kramer's C-GM/GM computer graphics video cable is a high-performance cable with molded 15-pin HD connectors on both ends. It is used for connecting computer graphics video signals between computers or video scalers and plasma, LCD or other popular display technologies. Quality Construction - High-resolution 26AWG mini coax for video. Easy Installation - Pre-terminated with molded 15-pin HD connectors, gold-plated pins and thumbscrews for easy connection. Varied Selection of Lengths - Available in 1 to 150ft versions (0.3 to 45.7m). Cable Specs - See Kramer BC-3X2T7S for detailed cable specs.

Conductor	26AWG 7/34 tinned copper
Dielectric	Foam polyethylene with red, green, blue color coding
Shield	(A) 90% spiral 38AWG tinned copper (B) aluminum-foil/Mylar 25% overlap rate
Inner Jacket	PVC
Jacket Colors	Black
Center Conductor	0.019in (0.48mm)
Individual Coax	0.102in (2.6mm)
Impedance	75ohm
DC resistance	45ohm/1000ft (148ohm/km)
Capacitance	17.3pF/ft (57pF/m)
Attenuation (dB/100ft)	-0.5dB @1MHz
Temperature	68 deg to 167F (-20 deg to 75C)
UL	CL2
CSA	C(UL) CL2
