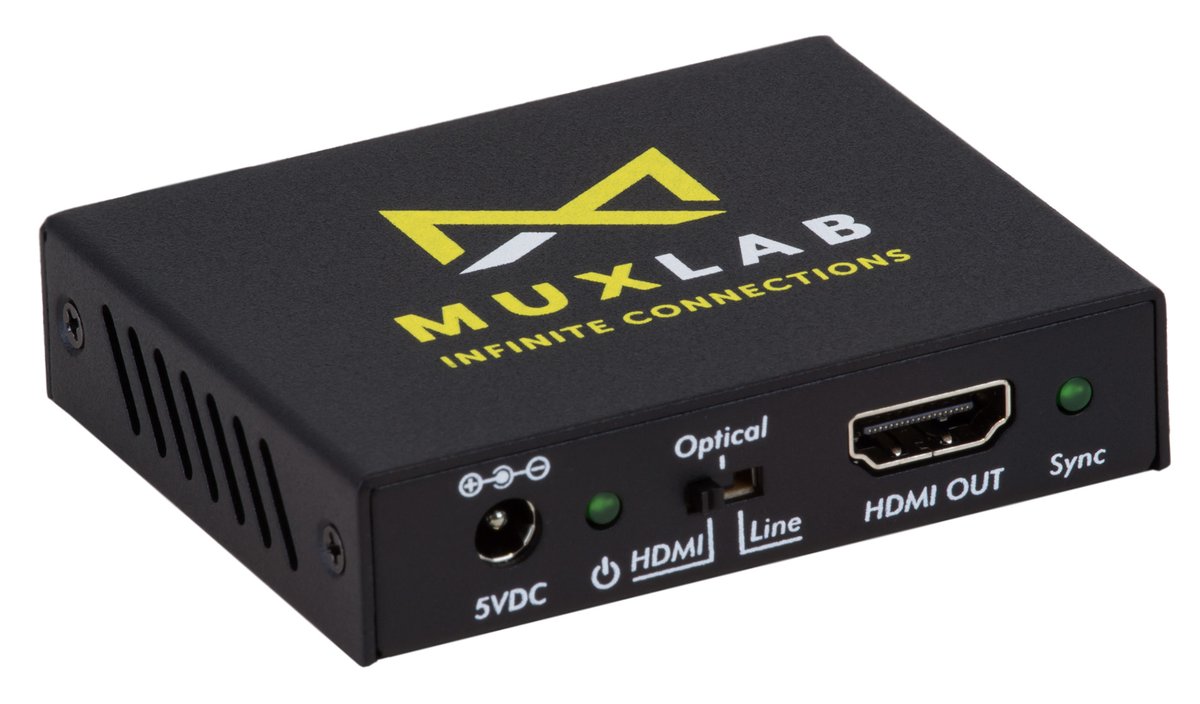

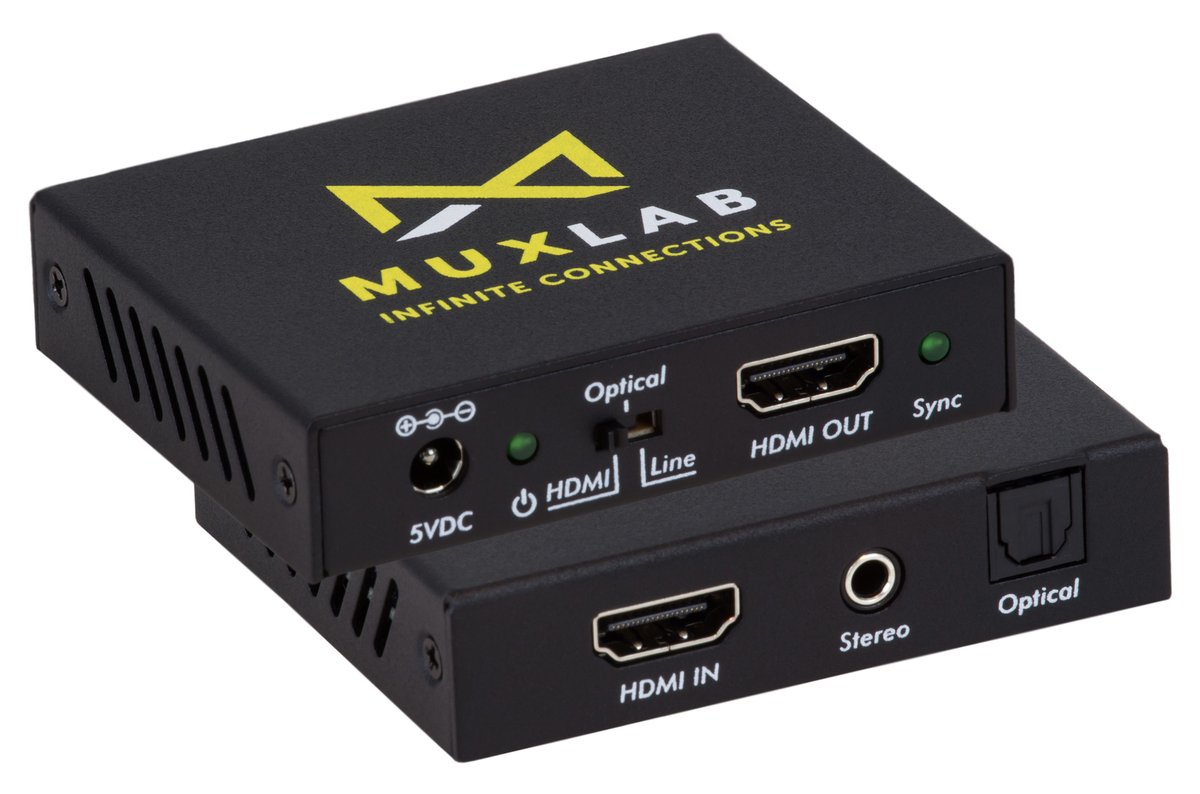

MuxLab 100527 HDMI to HDMI with Audio Embedder, 4K/60

The 100527 inserts an external audio source into the HDMI stream, taking either a digital optical (S/PDIF) or analog line-level stereo input and embedding it on the HDMI output. Video passes through at up to 4K at 50/60Hz 4:4:4 on both the input and the output.

Optical input handles LPCM 2CH, Dolby Digital 2/5.1CH, and DTS 2/5.1CH; the analog input handles PCM 2.0. HDMI High Bit Rate audio passes through untouched, as does 10-bit HDR. The unit is HDMI 2.0b (18Gbps), HDCP 2.2, and DVI 1.0 compliant.

HDMI Compliance	HDMI 2.0b
Video Resolution	Up to 4K/60Hz (4:4:4)
Video Bandwidth	18Gbps
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Color Depth	10-bit, 12-bit
Color	Space RGB, YCbCr 4:4:4 / 4:2:0. HDMI Audio Formats (Pass-through) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats	LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH L/R Audio Formats Analog Stereo 2CH

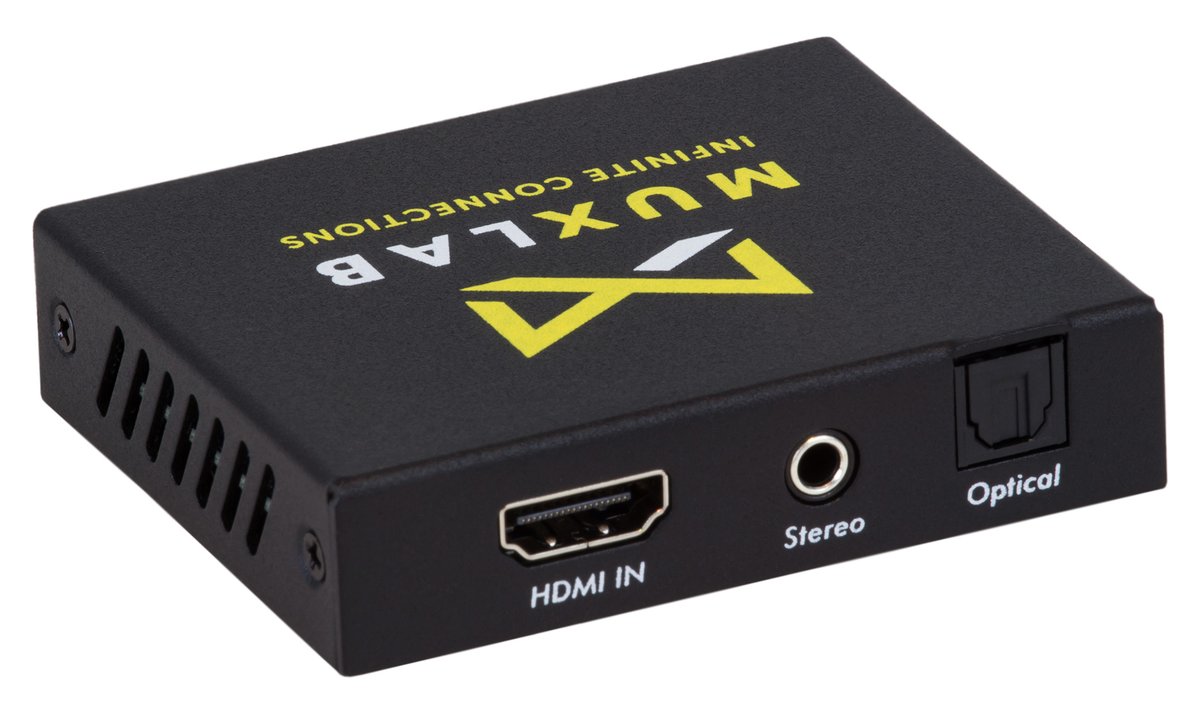

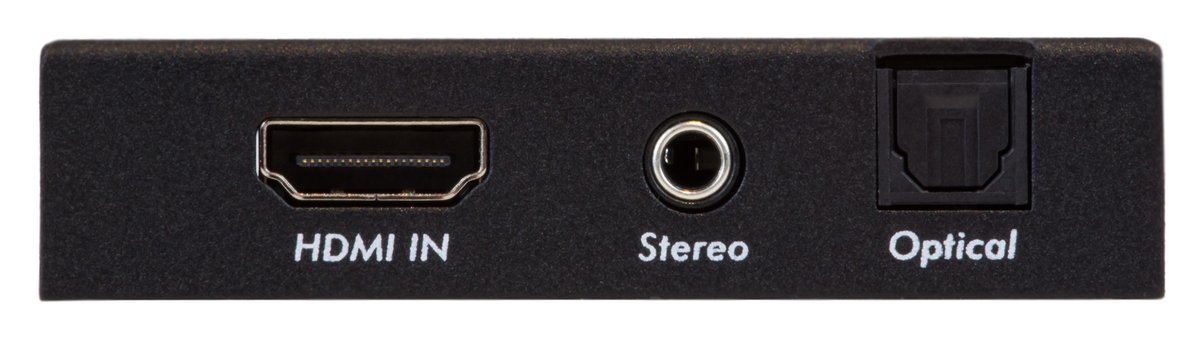

Connection	Inputs 1 x HDMI Type A [19-pin female] 1 x Line In [3.5mm Stereo Mini-jack] 1 x Optical In [S/PDIF]
