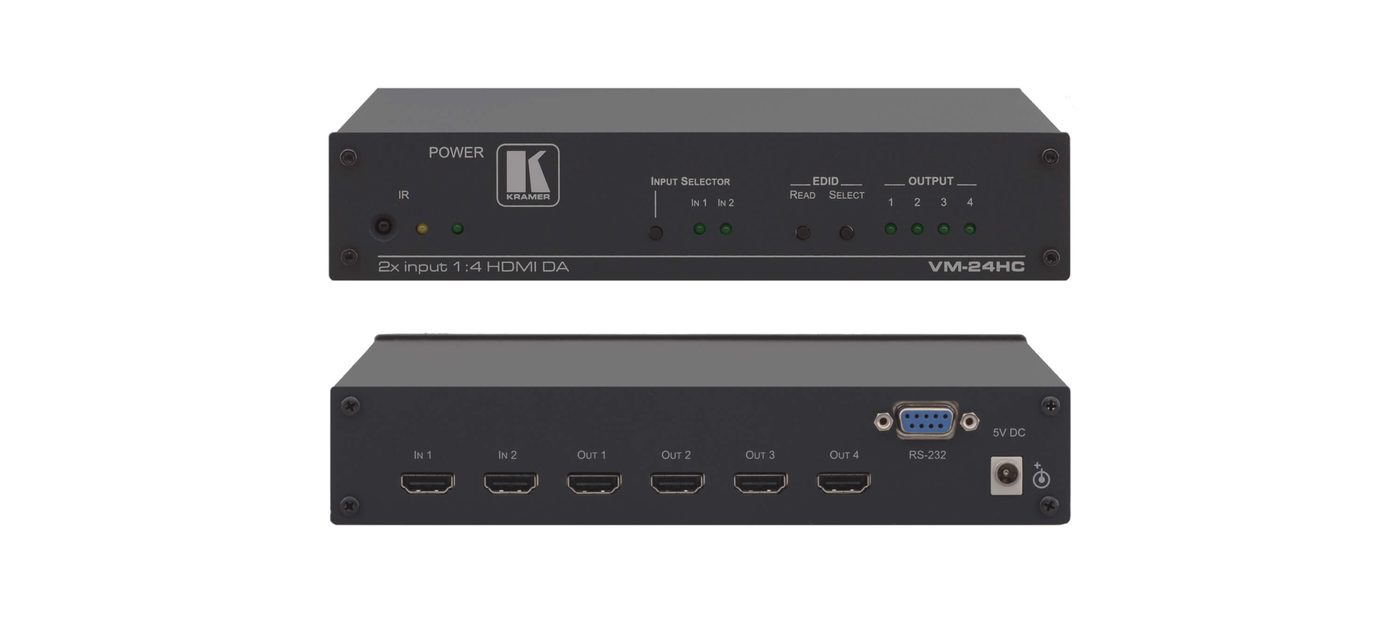

Kramer VM-24HC 2x1:4 Compact HDMI Switchable DA

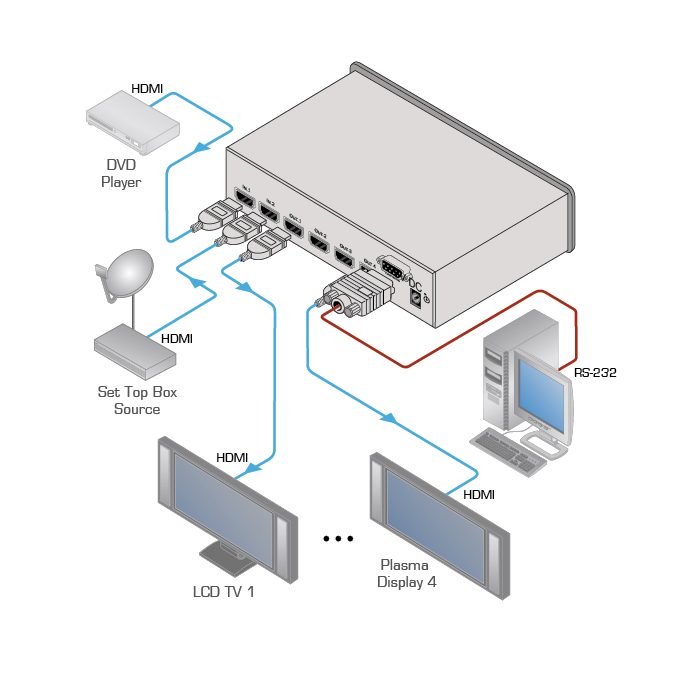

The Kramer VM-24HC is a compact HDMI switcher and distribution amplifier: it selects one of two HDMI inputs and distributes it to four outputs. It suits a presentation or home theater system where one source feeds a projector plus several monitors.
It acquires the EDID from one output, from all outputs (auto-mix) or uses a default, supports Deep Color, x.v.Color, up to 7.1 uncompressed audio and 3D, and handles 6.75 Gbps with Kramer re-Klocking. Control is by front panel, IR and RS-232. It runs on 5 V DC, and two fit side by side in 1U with the recommended rack adapter.
- Storage Temperature–40° to +70°C (–40° to 158°F)
- Inputs2 HDMI connectors
- Outputs4 HDMI connectors
- Power Consumption5V DC, 1.1A
- Rack Mount2 units side by side in 1U (with adapter)
| Inputs | 2 connectors |
|---|---|
| Outputs | 4 HDMI connectors |
| MAX. DATA RATE | 6.75Gbps (2.25Gbps per graphic channel) |
| Compliance With Hdmi Standard | Supports HDMI and HDCP |
| Controls | EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS–232, IR |
| Indicators | POWER, IR, OUTPUT LEDs |
| Power Consumption | 5V DC, 1.1A |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| EDID | From one output, auto-mix, or default |
| Rack Mount | 2 units side by side in 1U (with adapter) |
