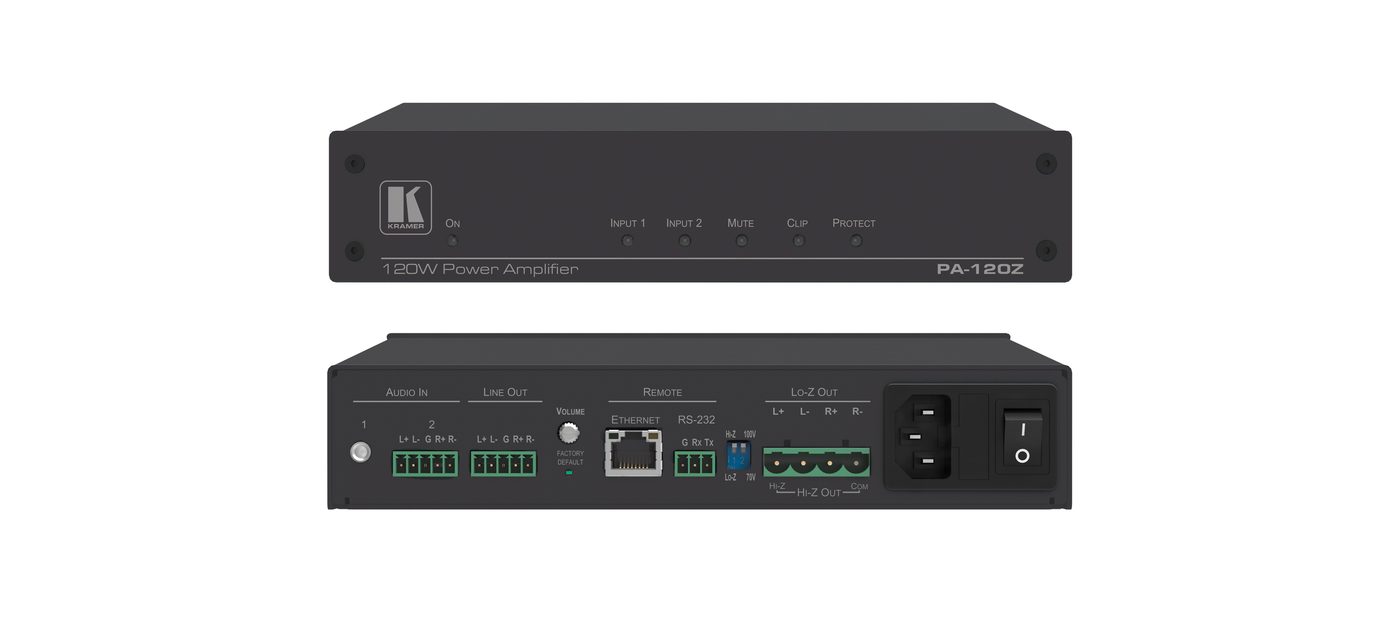

Kramer PA-120Z 120W Power Amplifier

The Kramer PA-120Z is a 120W Power Amplifier, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 1 unbalanced stereo on a 3.5mm connector; 1 balanced stereo +4dBu/10kΩ on a 5 pin terminal block (inputs); 1 balanced stereo line level on a 5-pin terminal block; 1 stereo or 1 mono speaker output on a 4 pin large terminal block (outputs); Attains full power @ 0.3V (-10dBV) (input sensitivity); 2 x 60W @ 4Ω or 8Ω; 1 x 120W @ 70V or 100V (output power). Also: Class D (amplifier type); 26dB SE / 32dB BTL (maximum voltage gain); 119dB (dynamic range); 20Hz to 20kHz @ +/-1dB (frequency response).

Inputs	1 unbalanced stereo on a 3.5mm connector; 1 balanced stereo +4dBu/10kΩ on a 5 pin terminal block
Outputs	1 balanced stereo line level on a 5-pin terminal block; 1 stereo or 1 mono speaker output on a 4 pin large terminal block
Input Sensitivity	Attains full power @ 0.3V (-10dBV)
Output Power	2 x 60W @ 4Ω or 8Ω; 1 x 120W @ 70V or 100V
Amplifier Type	Class D
Maximum Voltage Gain	26dB SE / 32dB BTL
Dynamic Range	119dB
Frequency Response	20Hz to 20kHz @ +/-1dB
