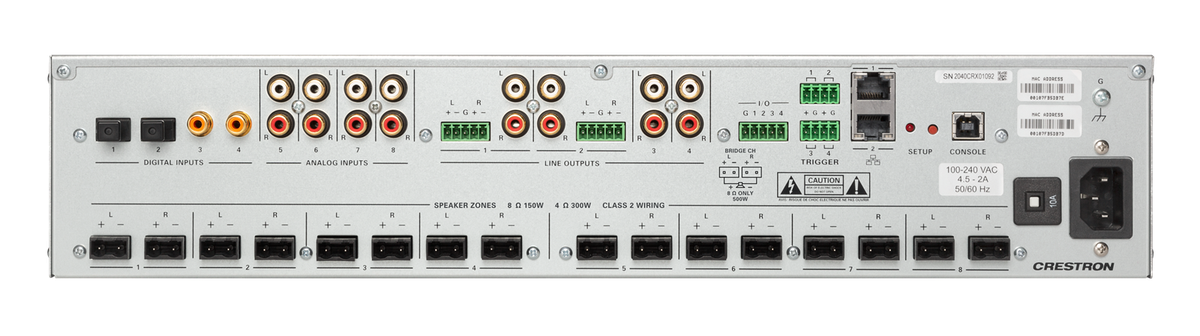

Crestron DM-NAX-8ZSA DM NAX 8-Zone Streaming Amplifier
The Crestron DM-NAX-8ZSA is a DM NAX 8-Zone Streaming Amplifier. DM NAX moves audio around a building over the same network that carries the video, so a zone becomes a switch port rather than a home run back to a rack of amplifiers.
Power consumption is 240 W (All channels driven at 1/8th power, 8 ohms). Frequency response is 20 Hz to 20 kHz +/-0.6 dB. Mounting is 2 RU rack-mountable. It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.
| Input Signal Types | 4 stereo analog (RCA); 4 digital S/PDIF (2 TOSLINK and 2 Coaxial); Up to 8 stereo DM NAX or AES67 audio-over-IP streams; Up to 8 stereo cloud-based media streams from streaming service providers |
|---|---|
| Output Signal Types | 8 stereo speaker-level amplified outputs; 4 stereo line-level analog outputs (mirroring speaker zone outputs 1-4); Up to 24 stereo DM NAX or AES67 audio-over-IP streams |
| Frequency Response | 20 Hz to 20 kHz +/-0.6 dB |
| Ethernet | For control, AoIP, and or console, 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP |
| Ethernet 1 | (1) 8-wire RJ45 female; 100Base- T/1000Base-TX Ethernet port |
| USB | For configuration management |
| Power Consumption | 240 W (All channels driven at 1/8th power, 8 ohms) |
| Mounting | 2 RU rack-mountable |
