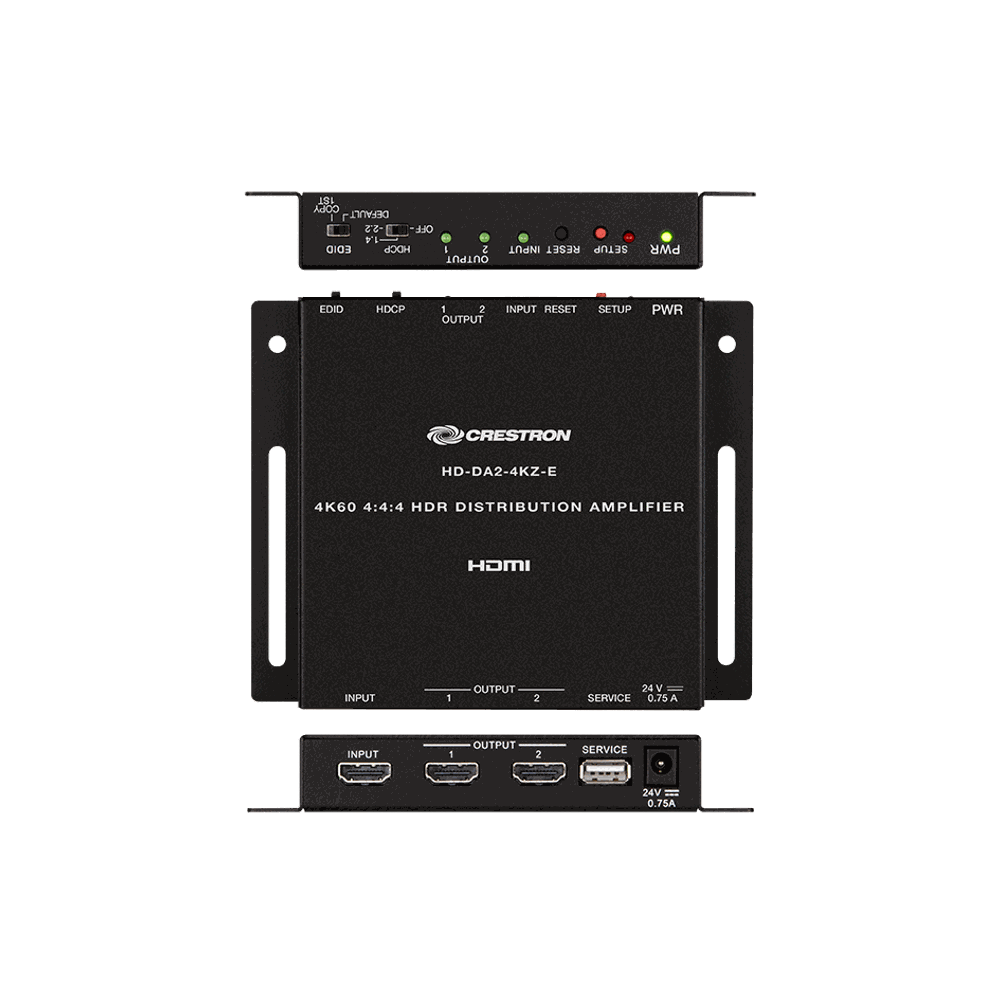

Crestron HD-DA-4KZ-E Series 4K60 4:4:4 HDMI Distribution Amplifiers
The HD-DA-4KZ-E series splits a single HDMI signal to feed multiple displays, switchers or other devices. All three models pass UHD and DCI 4K60 at 4:4:4 with HDR, handle HDCP 1.4 or 2.2 with copy protection selectable or disabled, and carry high-bitrate 7.1 audio. No control system and no programming are required; set the two slide switches and it works.
Choose the output count for the job: HD-DA2-4KZ-E for two displays, HD-DA4-4KZ-E for four, HD-DA8-4KZ-E for eight. Each is a metal chassis with integral mounting flanges for a shelf, a surface or a single rack rail, and each ships with its 24 V power pack.
| Dimensions | 0.87 in (22 mm) H x 5.73 in (146 mm) W x 4.67 in (119 mm) D |
|---|---|
| Input Signal Type | HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support (DVI & Dual-Mode DisplayPort compatible ) |
| Output Signal Type | HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support colspan="3"1] (DVI compatible) |
| USB | USB 2.0 host; supports firmware update and custom EDID upload via a USB flash drive |
| OUTPUT 1 - 2 | (2) HDMI Type A connectors, female; HDMI digital video/audio outputs; (DVI compatible) |
| Power Consumption | 4.3 W (typical) |
| Temperature | 32 deg to 104 deg F (0 deg to 40 deg C) |
| Chassis | Metal, black finish, with (2) integral mounting flanges |
