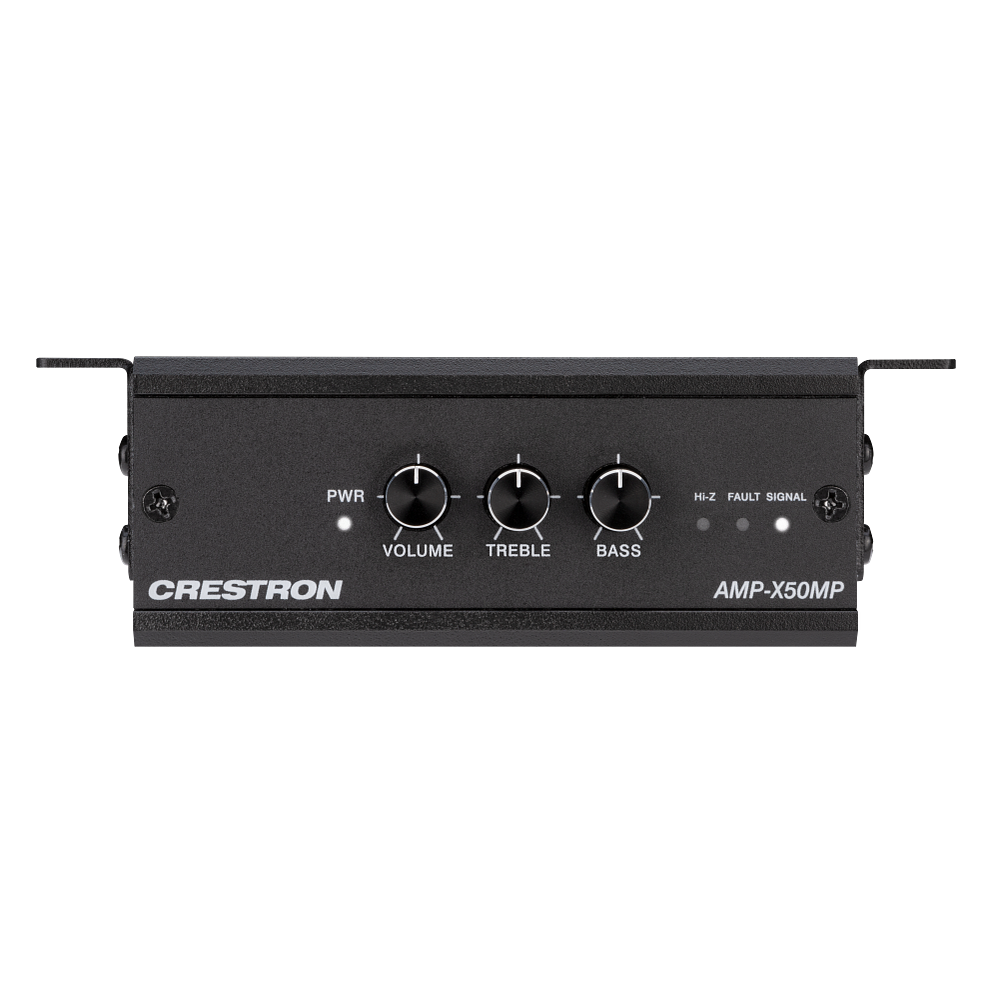

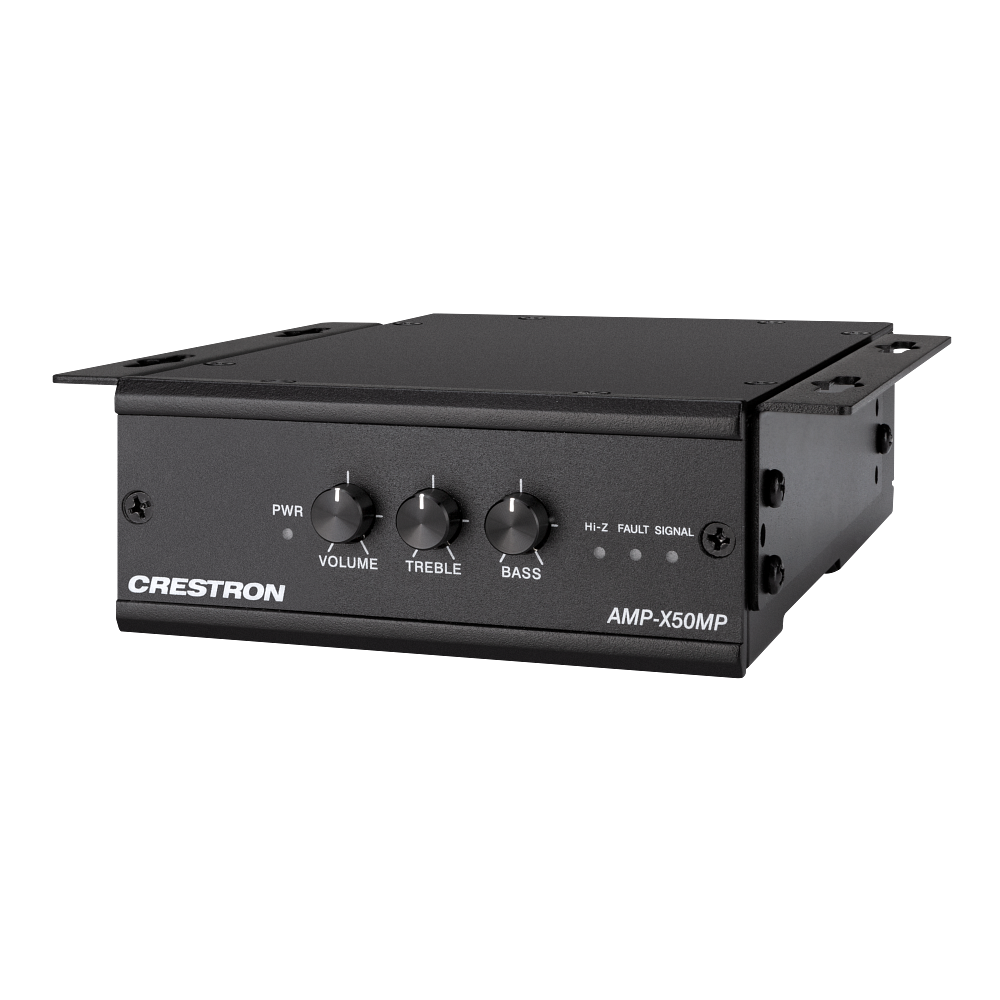

Crestron AMP-X50MP X-Series Media Presentation Amplifier, 50 W
The AMP-X50MP is the media presentation member of the X-Series, sized for classrooms, meeting rooms, and other spaces where the audio load is a presenter and the occasional video rather than a music system. Driven as one channel it delivers 50 W into 4 ohms or 50 W at 70V or 100V; as two channels it delivers 25 W each.
Inputs accept balanced or unbalanced analog line-level. In Hi-Z operation the response runs 90 Hz to 20 kHz within 3 dB with an 80 Hz high-pass filter engaged at -12 dB per octave, which is the right shape for distributed ceiling speakers; in Lo-Z it runs the full 20 Hz to 20 kHz within 0.5 dB.
| Input Signal Types | Balanced or unbalanced analog line-level |
|---|---|
| Output Power, LoZ | 50 W into 4 ohms or 25 W into 8 ohms (1 channel); 25 W per channel (2 channels) |
| Output Power, Hi-Z | 50 W at 70V or 100V (1 channel driven) |
| Frequency Response, LoZ | 20 Hz to 20 kHz, +/-0.5 dB at 1 W |
| Frequency Response, Hi-Z | 90 Hz to 20 kHz, +/-3 dB at 1 W, HPF at 80 Hz (+/-10 Hz), -12 dB/octave |
| THD+N | 0.1% at 1 kHz at -3 dB full rated output power |
| S/N Ratio | 90 dBA, 20 Hz to 20 kHz, balanced, Hi-Z |
| Crosstalk | -75 dB at 1 kHz |
