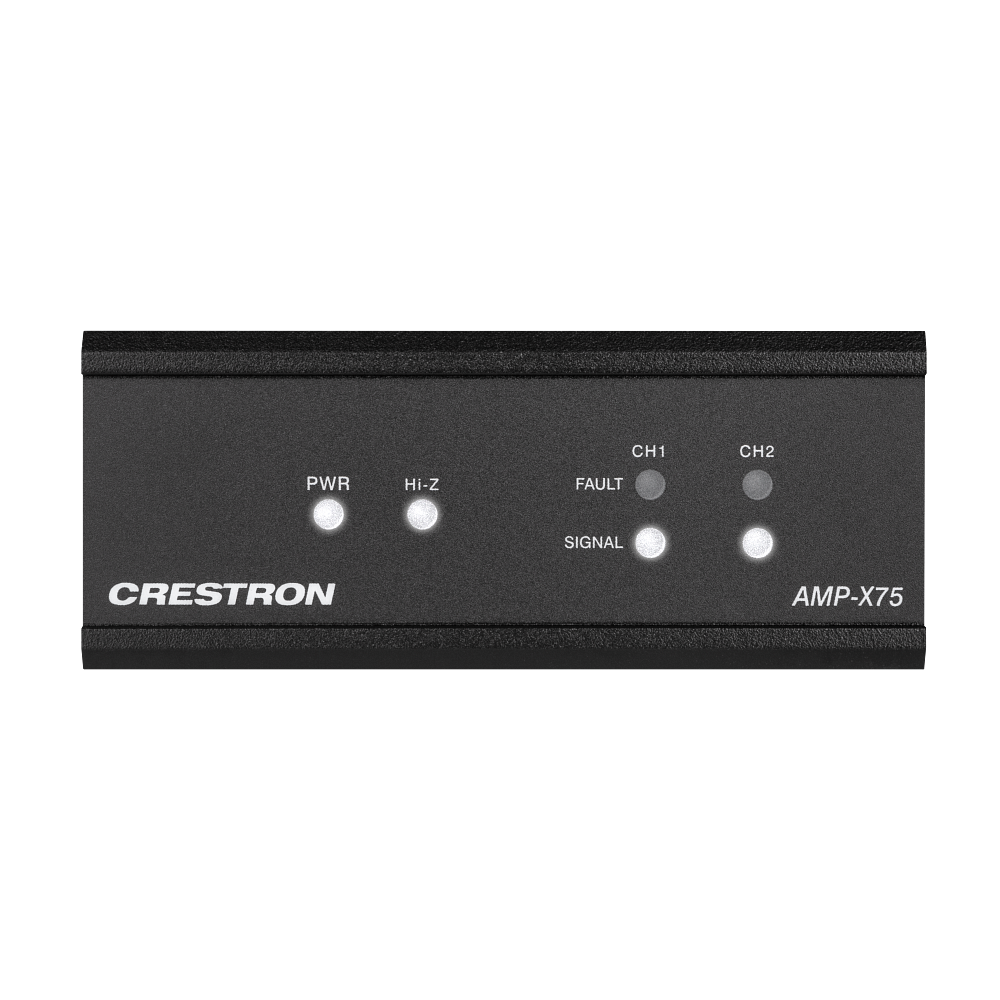

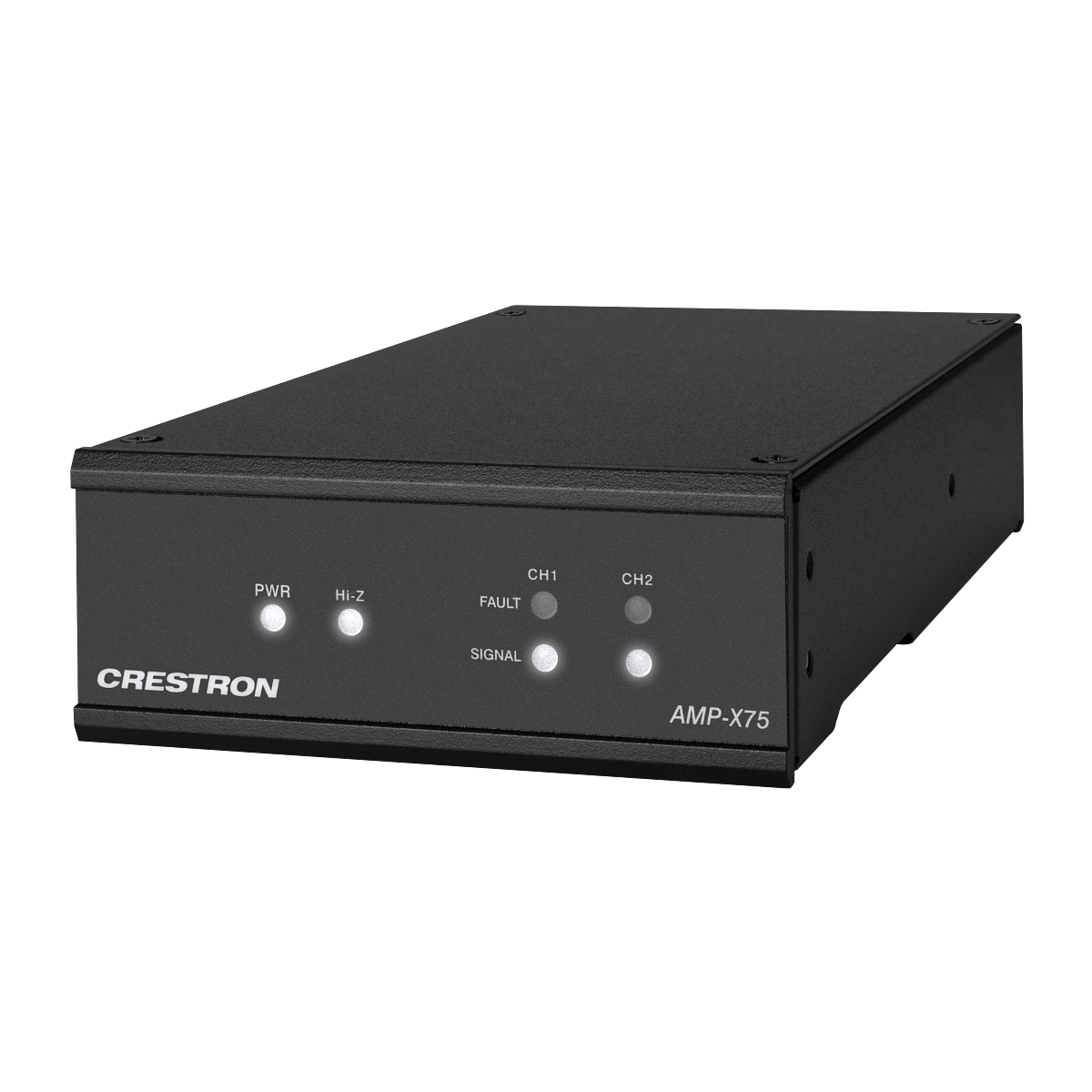

Crestron AMP-X75 X-Series Amplifier, 75 W
The AMP-X75 is the small end of the Crestron X-Series: a two-channel amplifier at 35 W per channel into 4 or 8 ohms, or a single bridged channel at 75 W, or 75 W into a 70V or 100V distributed line. One box therefore covers a stereo pair in a small room or a run of ceiling speakers in a corridor, and the choice is made at install time rather than at order time.

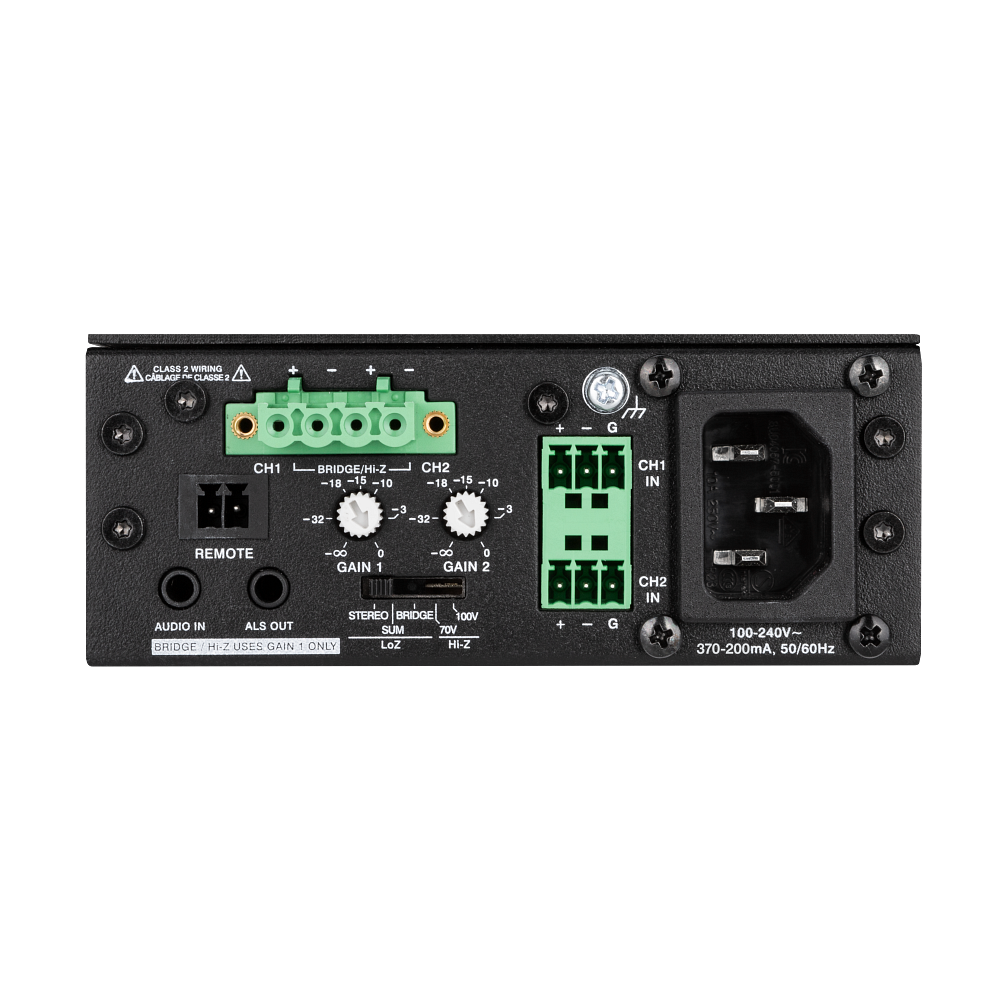

Balanced and unbalanced inputs arrive on detachable terminal blocks or RCA. Class D output keeps the amplifier efficient and cool enough to stack directly against its neighbours in a rack with no ventilation gap, and a high-pass filter engages automatically in 70V and 100V operation to protect the transformer.
- Output Power, LoZ35 W per channel into 4 or 8 ohms; 75 W bridged into 8 ohms
- Output Power, Hi-Z75 W at 70V or 100V
- Frequency Response20 Hz to 20 kHz, 0.5 dB at 1 W
- Power consumption18.63 W, (2 channels driven at 1/8th output power, 4 ohms)
- Weight2.1 lb
| Input Signal Type | Balanced or unbalanced analog line-level |
|---|---|
| Output Power, LoZ | 35 W per channel into 4 or 8 ohms; 75 W bridged into 8 ohms |
| Output Power, Hi-Z | 75 W at 70V or 100V |
| Frequency Response | 20 Hz to 20 kHz, 0.5 dB at 1 W |
| High-Pass Filter | -3 dB at 80 Hz, -12 dB/octave (70V and 100V operation only) |
| THD+N | 0.1% at 1 kHz at -3 dB full rated output power |
| S/N Ratio | 103 dBA, 20 Hz to 20 kHz, balanced |
| Crosstalk | -75 dB at 1 kHz |
| Power consumption | 18.63 W, (2 channels driven at 1/8th output power, 4 ohms); 7.60 W, idle (Hi-Z mode); 0.41 W, standby (230VAC/50 Hz) |
| Weight | 2.1 lb (0.95 kg) |
