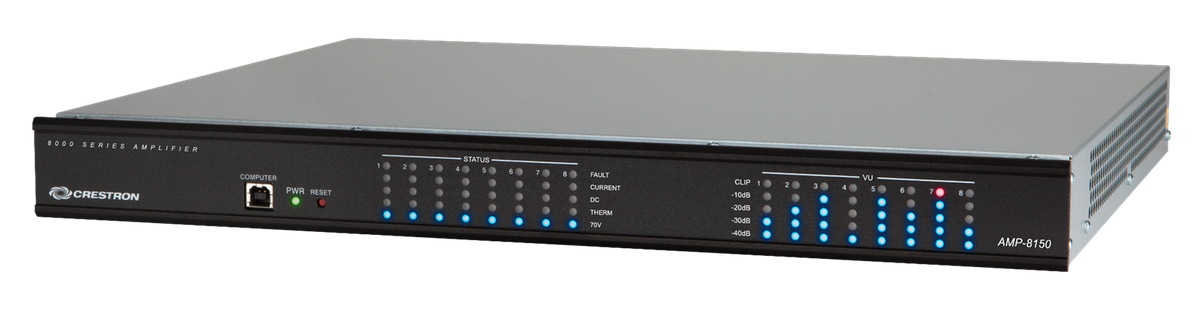

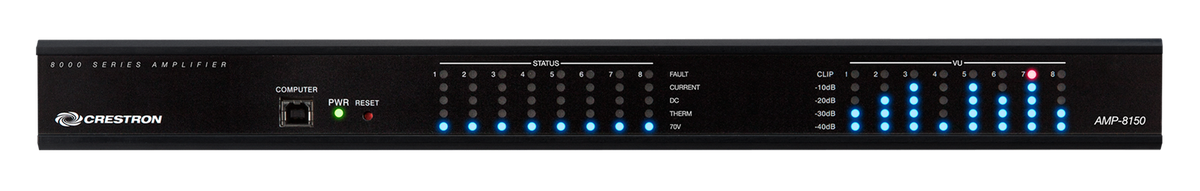

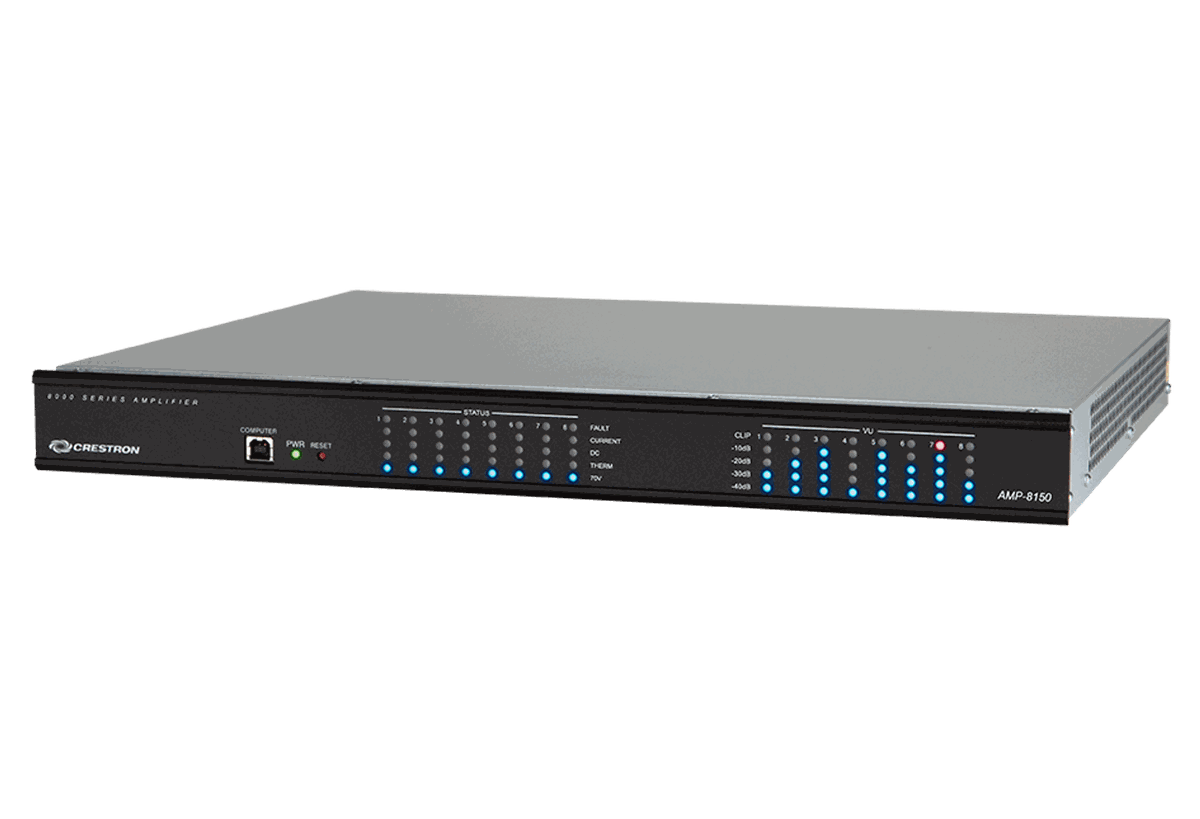

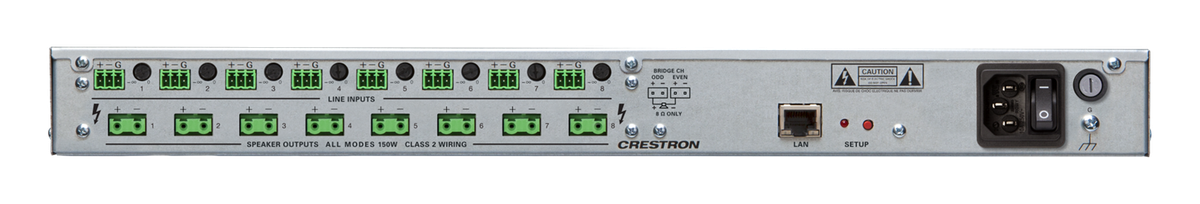

Crestron AMP 8150
The Crestron AMP-8150 is an eight-channel Class D power amplifier in the Avia AMP-8000 series, sized for larger commercial rooms driven by an Avia DSP. Each channel delivers 150 watts into 4 or 8 ohm Lo-Z loads, and any channel can be reconfigured in software for Hi-Z 70V distributed speaker systems. Adjacent channel pairs run as a stereo pair under one set of controls or bridge together for a single 300 watt output into 8 ohms.
This is the North America and Japan model, running on 100-120V AC line power. A high-pass filter engages in 70V mode to protect distributed lines, and balanced inputs reach full rated output at +4 dBu. Front rack ears and rear support brackets are included for freestanding or 1U 19-inch rack mounting.
| Channels | 8 |
|---|---|
| Power Output | 150 W per channel at 4-8 ohms or 70V |
| Bridged Output | 300 W per channel pair at 8 ohms |
| Frequency Response | 20 Hz to 20 kHz +/-0.5 dB at 1 W, 4-8 ohms |
| THD+N | <0.1% at 1 kHz, 3 dB below clipping |
| S/N Ratio | >103 dBA, 20 Hz to 20 kHz |
| Input Sensitivity | 1.23 Vrms, +4 dBu balanced, for full output |
| High Pass Filter | -3 dB at 80 Hz, 12 dB/octave in 70V mode |
| Dimensions | 1.72 x 17.28 (19 with ears) x 14.69 in |
| Power | 100-120V AC (North America and Japan) |
