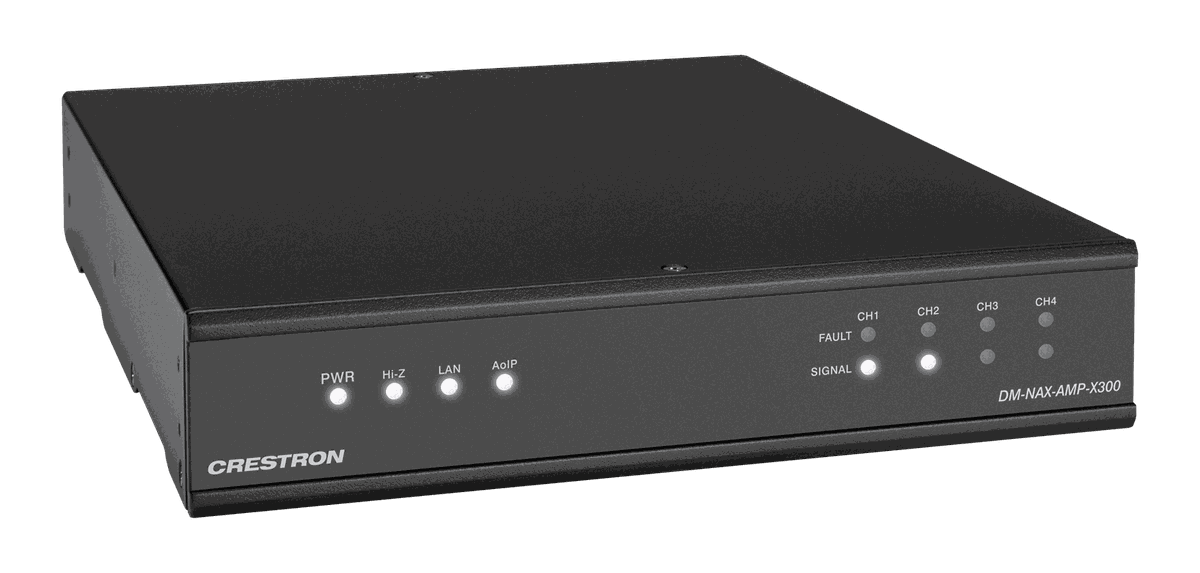

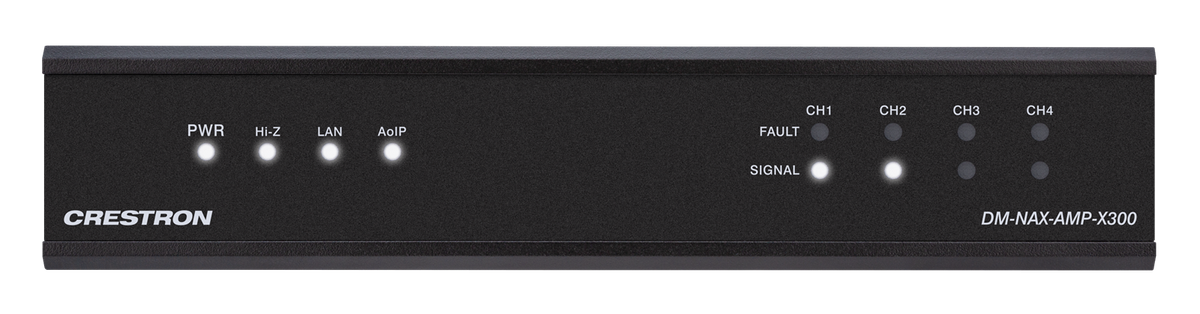

Crestron DM-NAX-AMP-X300 DM NAX X-Series Flexible Output Amplifier, 300 W
The Crestron DM-NAX-AMP-X300 is a DM NAX X-Series Flexible Output Amplifier, 300 W. DM NAX moves audio around a building over the same network that carries the video, so a zone becomes a switch port rather than a home run back to a rack of amplifiers.
Inputs accept Balanced/unbalanced analog line/mic-level and AoIP streams. Power consumption is 75 W (All channels driven at 1/8th power, 8 ohms). Ethernet 1: (1) 8-wire RJ45 female; 100Base-T/1000Base-TX Ethernet port. It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.
| Input Signal Types | Balanced/unbalanced analog line/mic-level and AoIP streams. |
|---|---|
| Ethernet 1 | (1) 8-wire RJ45 female; 100Base-T/1000Base-TX Ethernet port |
| Power Consumption | 75 W (All channels driven at 1/8th power, 8 ohms) |
| Heat Dissipation | 130 BTU/hr |
| Balanced Analog Input | Maximum signal level: +21 dBu (8.7 Vrms) Impedance: >10k Ohms Response: 20 Hz to 20 kHz+/-0.5 dB THD+N: <0.005% @ 1 KHz S/N Ratio: 105 dB A-weight Channel Separation: 100 dB @ 1 KHz |
| Mic Input | Maximum gain: 60 dB Impedance: >10k Ohms Response: 20 Hz to 20 kHz+/-0.5 dB THD+N: <0.005% @ 1 KHz @ 60 dB gain S/N Ratio: 71 dB @ 60 dB gain A-weight Channel Separation: 69 dB @ 60 dB gain @ 1 KHz |

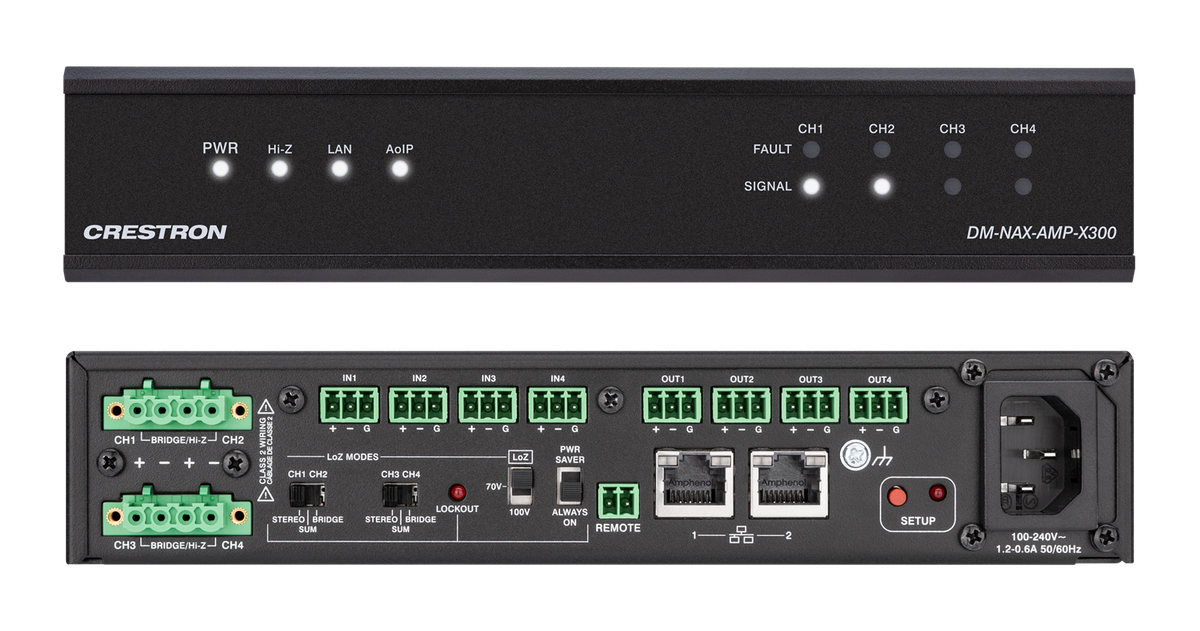

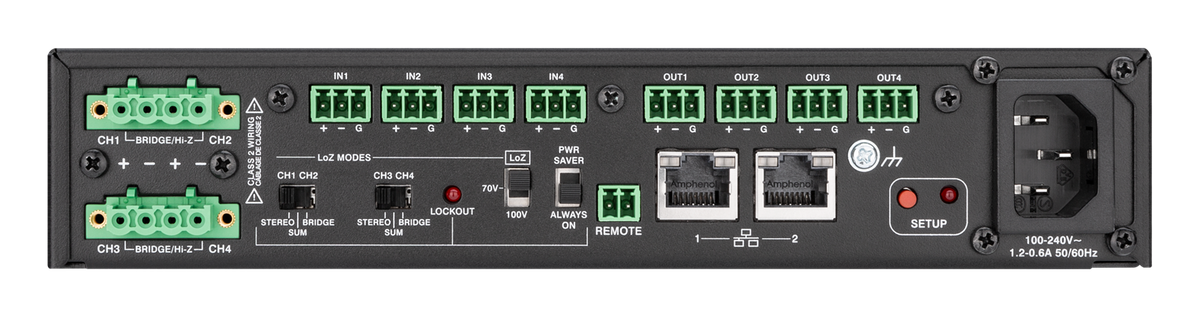

| CH1-CH4 | (2) 4-pin 5.08 mm pitch, 12A plug with screw locking retainers; Power amplifier output; Terminals accept up to 12 AWG (3.31 mm) NOTE: Output is direct-coupled, not transformer isolated. |
| OUT1-OUT4 | (4) 3-pin 3.5 mm detachable terminal block; Balanced/unbalanced line-level audio outputs; Maximum Output Level: 8.7 Vrms, +21 dBu |
