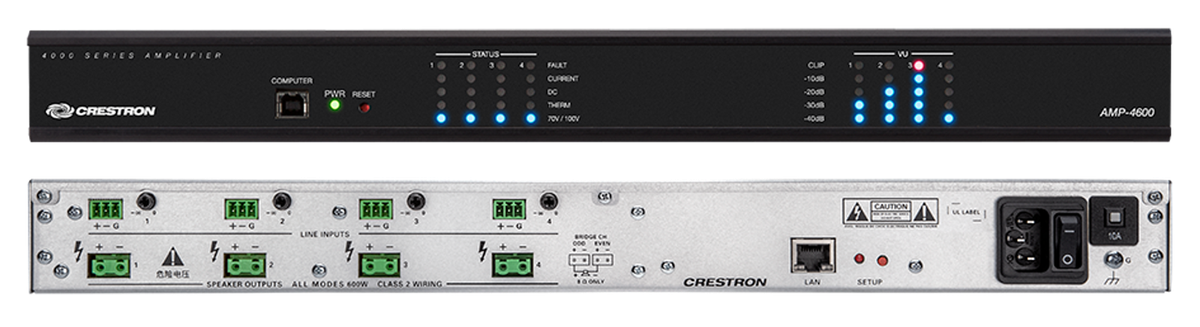

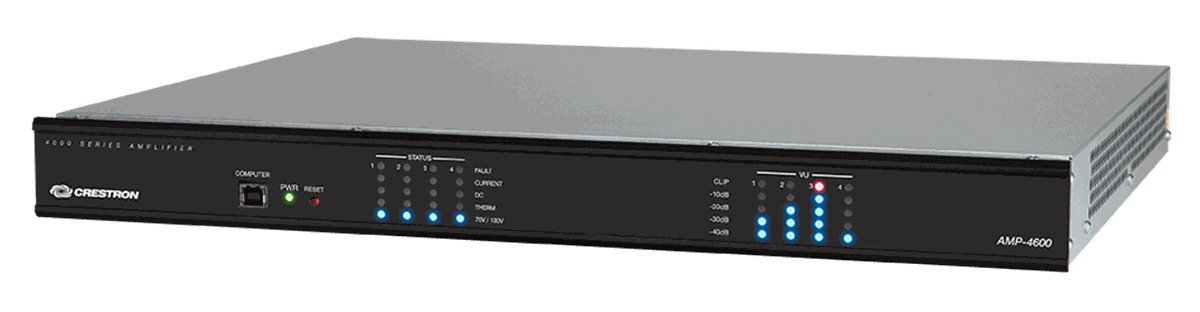

Crestron AMP 4600
The Crestron AMP-4600 is a four-channel Class D power amplifier built to sit alongside the Avia family of digital signal processors in a commercial audio rack. It delivers 600 watts per channel into 4 or 8 ohm Lo-Z loads, and each channel can be reconfigured in software for Hi-Z 70V or 100V distributed lines, a stereo pair, or bridged operation for 1200 watts into 8 ohms across a channel pair. Class D output keeps the chassis to a single rack unit while holding heat and current draw down.
Balanced line-level inputs accept levels up to +24 dBu, and independent per-channel protection lets one output fold back on a fault without taking the others down. A network port opens the amplifier to configuration, level metering, and monitoring through the Avia Audio Tool software, a Crestron control system, the XiO Cloud service, or Crestron Fusion. Front rack ears and rear support brackets ship in the box for freestanding or 1U 19-inch rack mounting.
| Channels | 4 |
|---|---|
| Power Output | 600 W per channel at 4-8 ohms or 70/100V |
| Bridged Output | 1200 W per channel pair at 8 ohms |
| Frequency Response | 20 Hz to 20 kHz +/-0.5 dB at 1 W, 4-8 ohms |
| THD+N | 0.05% |
| S/N Ratio | >103 dBA, 20 Hz to 20 kHz |
| Inputs | Balanced line-level, max +24 dBu, 20k ohm |
| Network | 10/100 Ethernet |
| Dimensions | 1.72 x 17.16 x 14.59 in (1U) |
| Weight | 14.10 lb |
