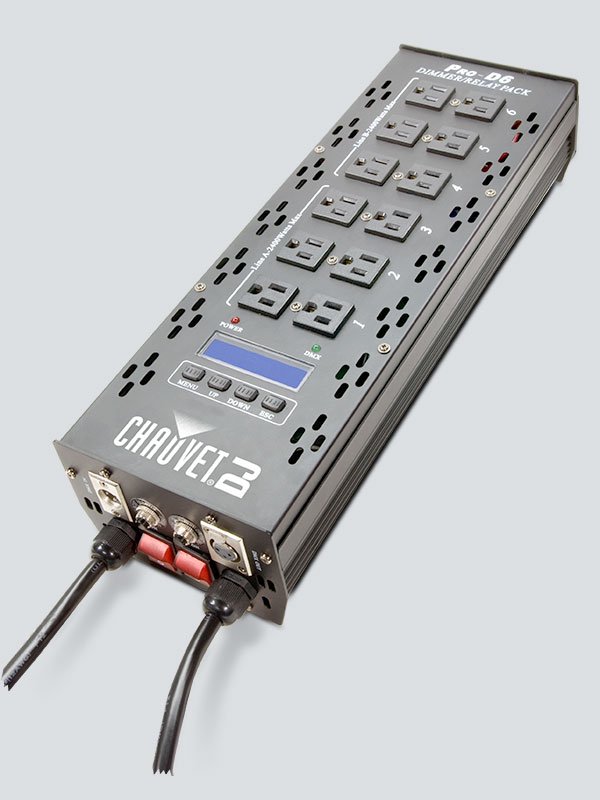

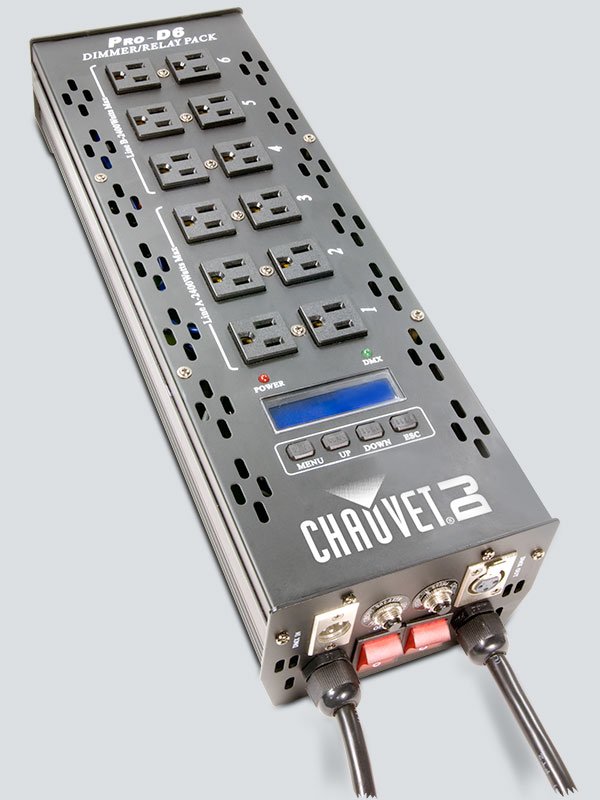

Chauvet DJ Pro-D6 DMX Dimmer/Relay Pack

The Pro-D6 is the pack you rack when a show still has conventional fixtures in it - PARs, practicals, work lights, a fog machine - and you want them on the same console as the LEDs. Six channels each accept their own DMX address rather than being locked to a consecutive block, so a single pack can be split across unrelated parts of a patch.

Every channel is independently configurable as a dimmer or a hard relay, which matters because switching gear (a fogger, an LED fixture's mains) must not sit on a phase-dimmed output. Dimming is variable 0 to 100 percent with a choice of square, switch or linear curves per channel. Output is rated 10 A per channel, 20 A per power line and 40 A total, with 20 A breakers; it requires two separate 20 A circuits on the same phase. The chassis is 19.3 x 5.5 x 3.9 inches and 9.3 lb, with 3-pin DMX in.

Channels	6, each independently dimmer or relay
DMX Addressing	Independent address per channel; 3-pin DMX
Dimming	Variable 0 to 100%; square, switch or linear curve per channel
Output	10 A per channel; 20 A per power line; 40 A max
Breaker Size	20 A, 250 V
Power Input	Dual 20 A power lines (2 separate circuits, same phase)
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Size / Weight	19.3 x 5.5 x 3.9 in (491 x 140 x 98.5 mm); 9.3 lb (4.2 kg)
