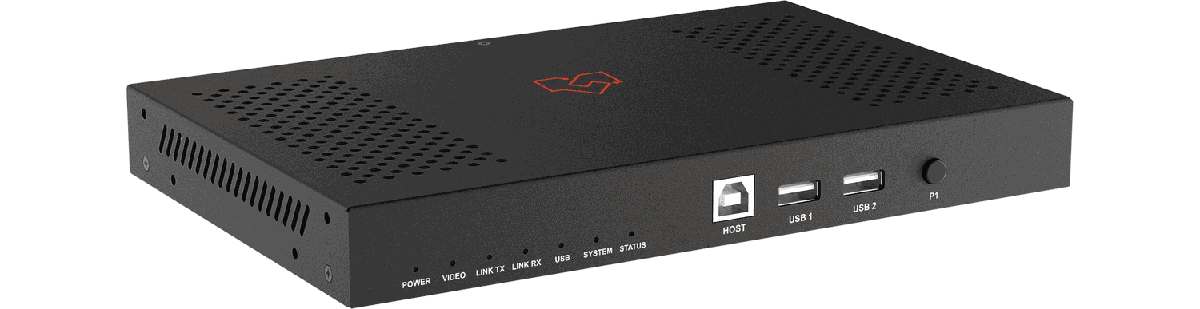

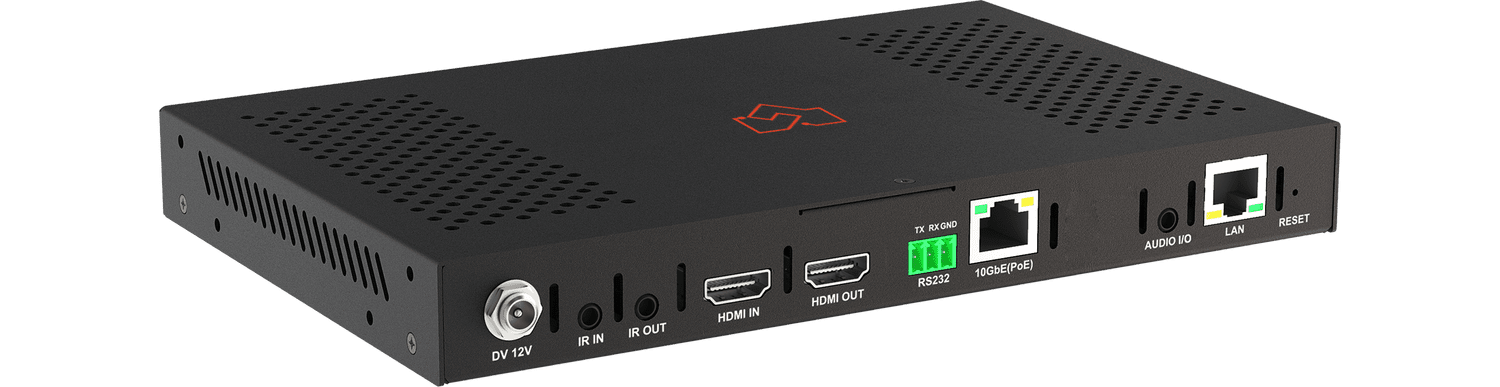

VigilLink VLIP-SDUDCP-TRX SDVoE 10G Copper Transceiver with Icron USB and Dante

The VLIP-SDUDCP-TRX combines an SDVoE encoder and decoder in one 10G copper unit, transmitting and receiving at the same time with video wall and multiview. Integrated Dante output puts the room audio on the audio network without a separate bridge.

Video is HDMI 2.0 at 4K@60Hz 4:4:4 with HDCP 2.2 and HDR to 4:2:0 12-bit, distributed losslessly with a local HDMI loop-out, reaching 328 feet (100 meters) over Cat6a/7 at zero-frame latency with seamless switching. Icron USB 2.0 extension supports keyboard, mouse, webcam, storage, and speakers, with independent analog audio, bidirectional IR, and RS-232.

Output Video Resolutions	Ethernet output: Same as Input Video Resolutions table above
End-to-End Latency	Zero-frame latency
Input Video Port	1 x HDMI, 1 x RJ45 (10GBase-T)
Input Audio Port	1 x HDMI, 1 x RJ45 (10GBase-T), 1 x 3.5mm jack
Output Video Port	1 x HDMI, 1 x RJ45 (10GBase-T)
Output Audio Port	1 x 10G BASE-T port, 1 x LAN (Dante)
Input Audio Format	HDMI/10GBase-T/10GBase-SR: LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz, Dolby True HD, DTS-HD Master, Dolby Digital AC-3, DTS version 1; 3.5 mm jack: Unbalanced stereo audio
Output Audio Format	HDMI/10GBase-T/10GBase-SR: LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz, Dolby True HD, DTS-HD Master, Dolby Digital AC-3, DTS version 1; 3.5 mm jack: Unbalanced stereo audio
