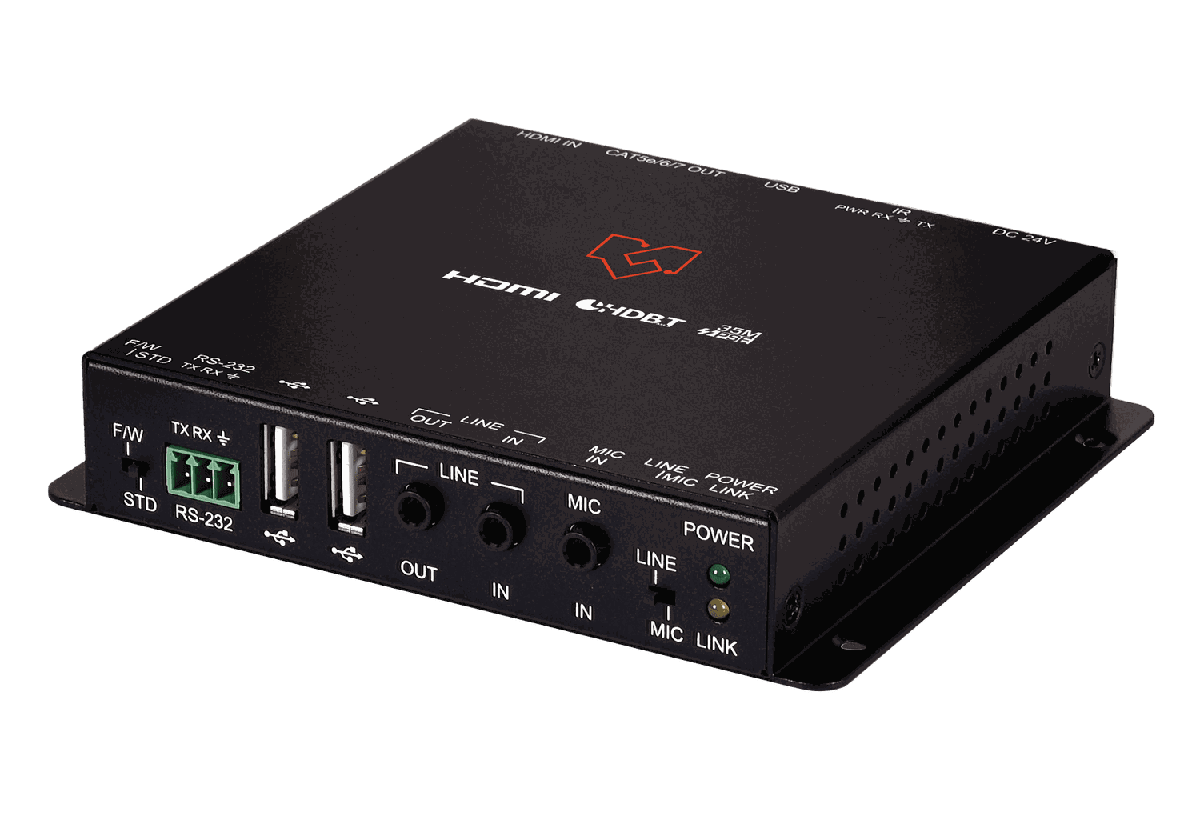

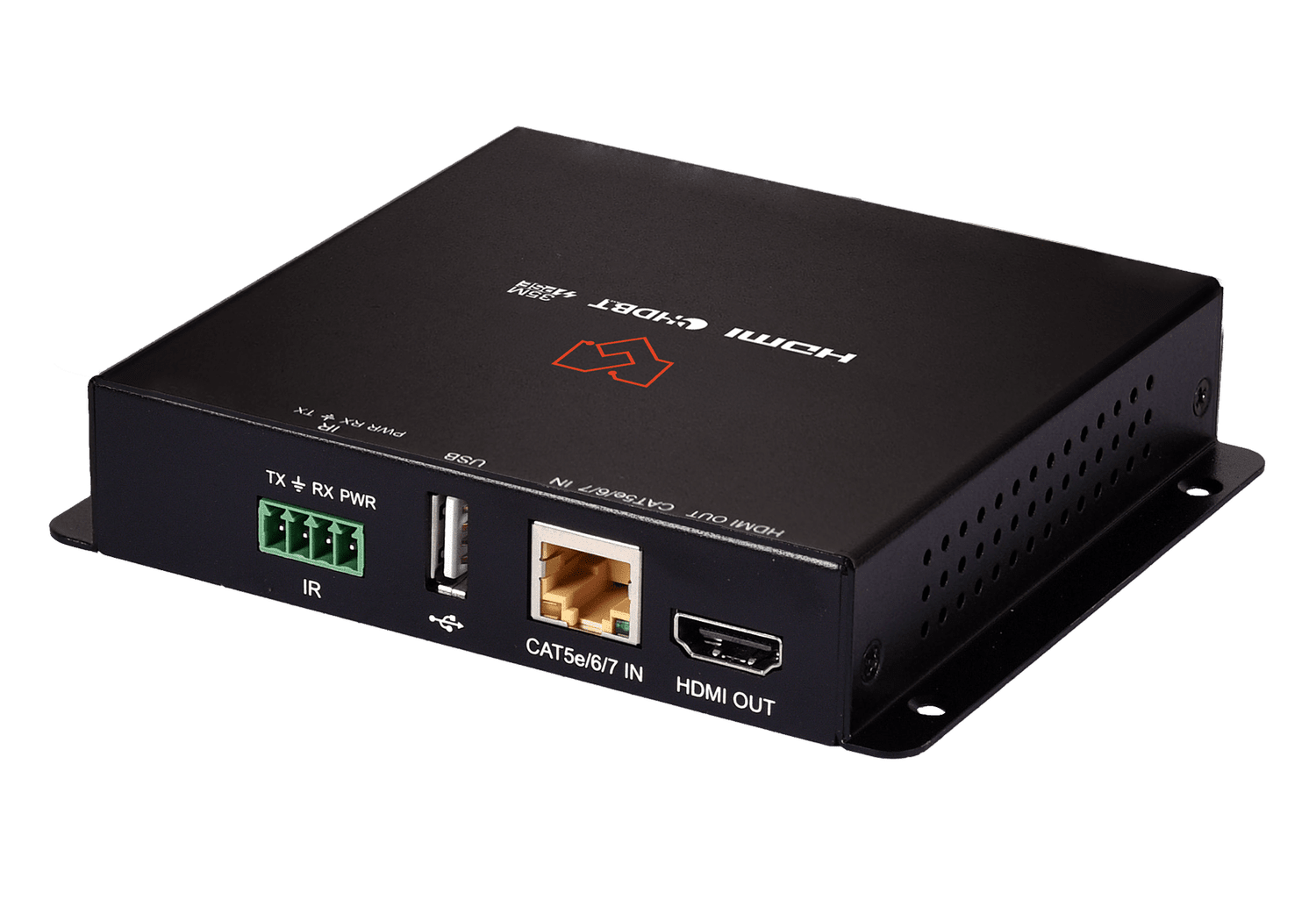

VigilLink VLEX-CHT235-TR HDMI and USB Extender over HDBaseT 2.0, 35m

The VLEX-CHT235-TR extends HDMI at 4K@60Hz (4:2:0, 8-bit) with HD audio across a single Cat6A or Cat7 cable to 40 meters. Beyond video it carries bidirectional IR, RS-232, bidirectional analog audio, and USB 2.0, which covers the control and peripheral traffic a remote display usually needs alongside the picture.

With the pair working together, the USB 2.0 Type-B port on the transmitter connects a host such as a laptop or PC, and the receiver presents the far-end peripherals to it. HDBaseT 2.0 is backward compatible with 1.0, and the extender is HDMI 2.0, DVI 1.0, HDCP 2.2, and HDCP 1.x compliant.
