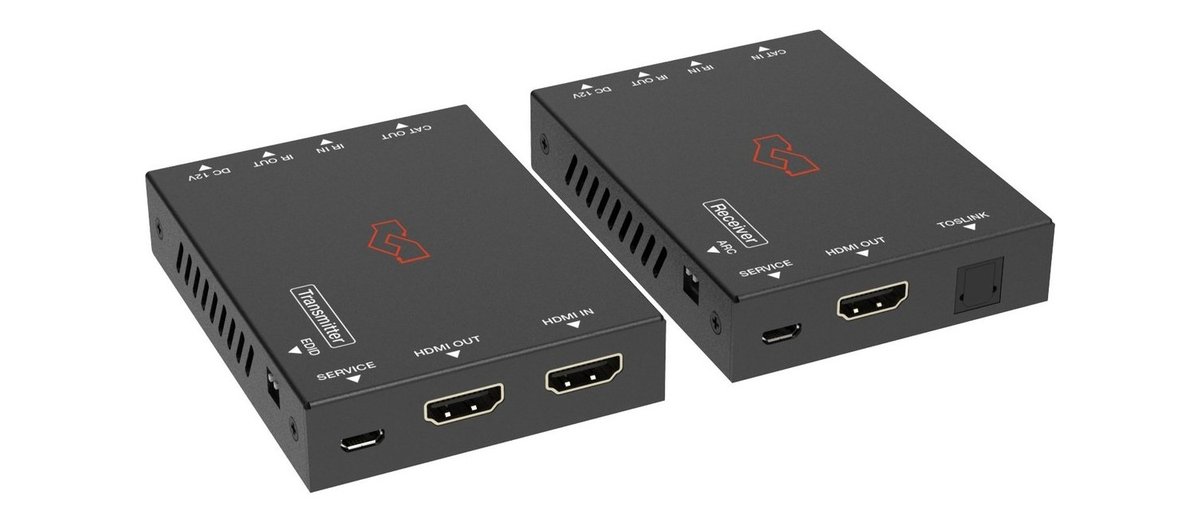

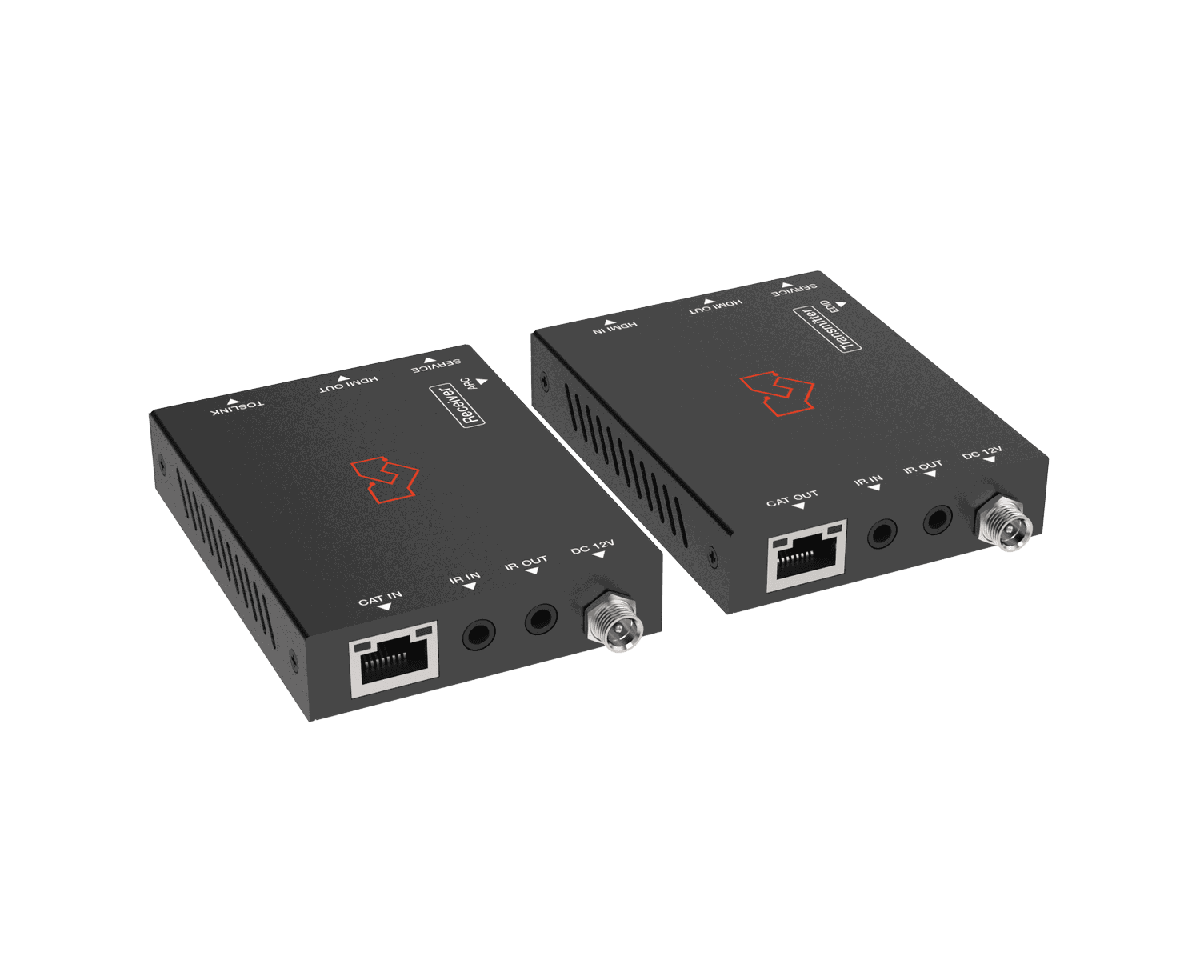

VigilLink VLEX-CT070R-TR HDMI Extender over CAT with ARC, 70m

The VLEX-CT070R-TR sends uncompressed HDMI up to 4K@60Hz (4:4:4) and IR control 230 feet (70 meters) down a single Cat6/6a cable, with no added delay. Audio return channel support brings sound back from the display to the source end, which matters when the far display is the only device with a tuner or an app.

EDID copy pass-through keeps the source and display negotiating correctly without manual intervention. Power over Cable removes the second power supply, so only one end of the link needs a mains outlet. The extender is HDMI 2.0b and HDCP 2.2 compliant at 18Gbps.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 4K2K@60Hz RGB/YCBCR 4:4:4
Transmission Distance	4K2K@60Hz 4:4:4--70m, 1080P--70m (CAT6/6a cable)
Audio Formats	HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0
Color Space	RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
