VigilLink VLIP-SDUFC-TRX SDVoE Transceiver with Switchable USB-C and HDMI Inputs

The VLIP-SDUFC-TRX is configurable as an encoder or a decoder and takes either a USB-C input carrying video and USB 2.0 or a straight HDMI input. Video is uncompressed 4K to 4096x2160@60Hz with HDR10, Dolby Vision, and HLG, at latency below 120 microseconds.

The 10G port switches dynamically between copper and fiber, giving 100 meters over copper or 300 meters over fiber, powered by PoE+. Processing covers a 16x16 video wall and 16-window multiview, and the unit carries two-channel Dante audio, Icron USB 2.0 KVM, and bidirectional IR, RS-232, and CEC.

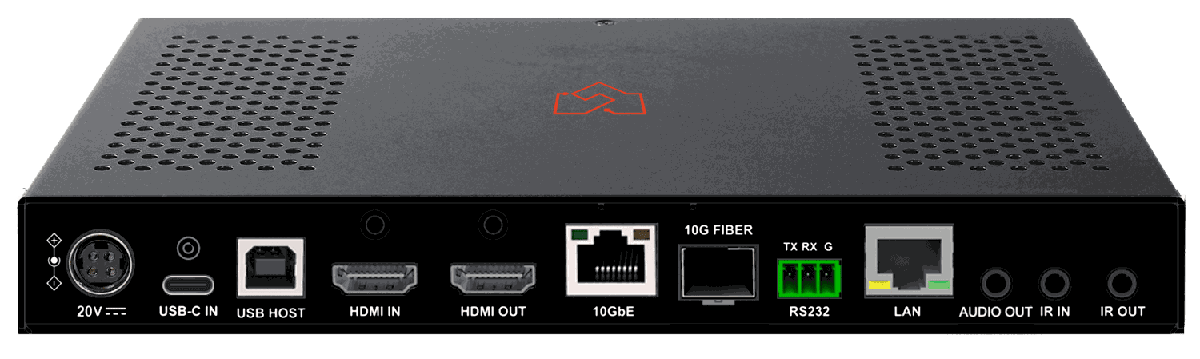

Input Connectors	1 x USB-C 1 x HDMI 1 x analog audio 1 x 10GBase-T 1 x 10GBase-SR
Output Connectors	1 x HDMI 1 x analog audio 1 x 10GBase-T 1 x 10GBase-SR
Transport Distance	100m (copper port) or 300m (fiber port)
Product Dimension	215m x 215mm x 25mm (L x W x H)
Power Supply	20V 10A

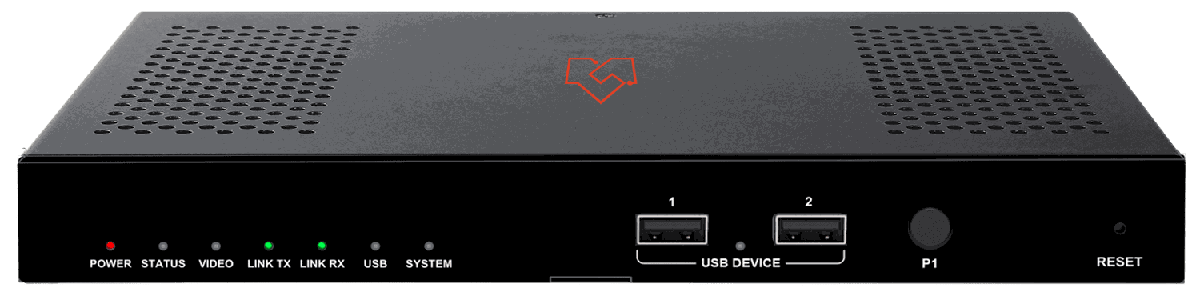

Button	A button on the front panel to switch the input video source and access some extended features button on the front panel to the factory default
Humidity	10% to 90%, non-condensing
