VigilLink VLEX-HAACT150-TR HDMI ARC and S/PDIF Audio Extender over CAT, 150m

The VLEX-HAACT150-TR moves HDMI ARC or S/PDIF audio down a single Cat5e/6 cable, reaching 492 feet (150 meters) at 96kHz or 295 feet (90 meters) at 192kHz in ARC mode. It solves the common problem of a display and an amplifier that ended up at opposite ends of a building.

Full HDMI ARC support includes CEC pass-through between the ARC input and output ports, so volume and power commands still reach the right box. Audio formats include PCM 2.0, Dolby 5.1, and DTS 5.1, and the unit is compact enough to sit behind a display.

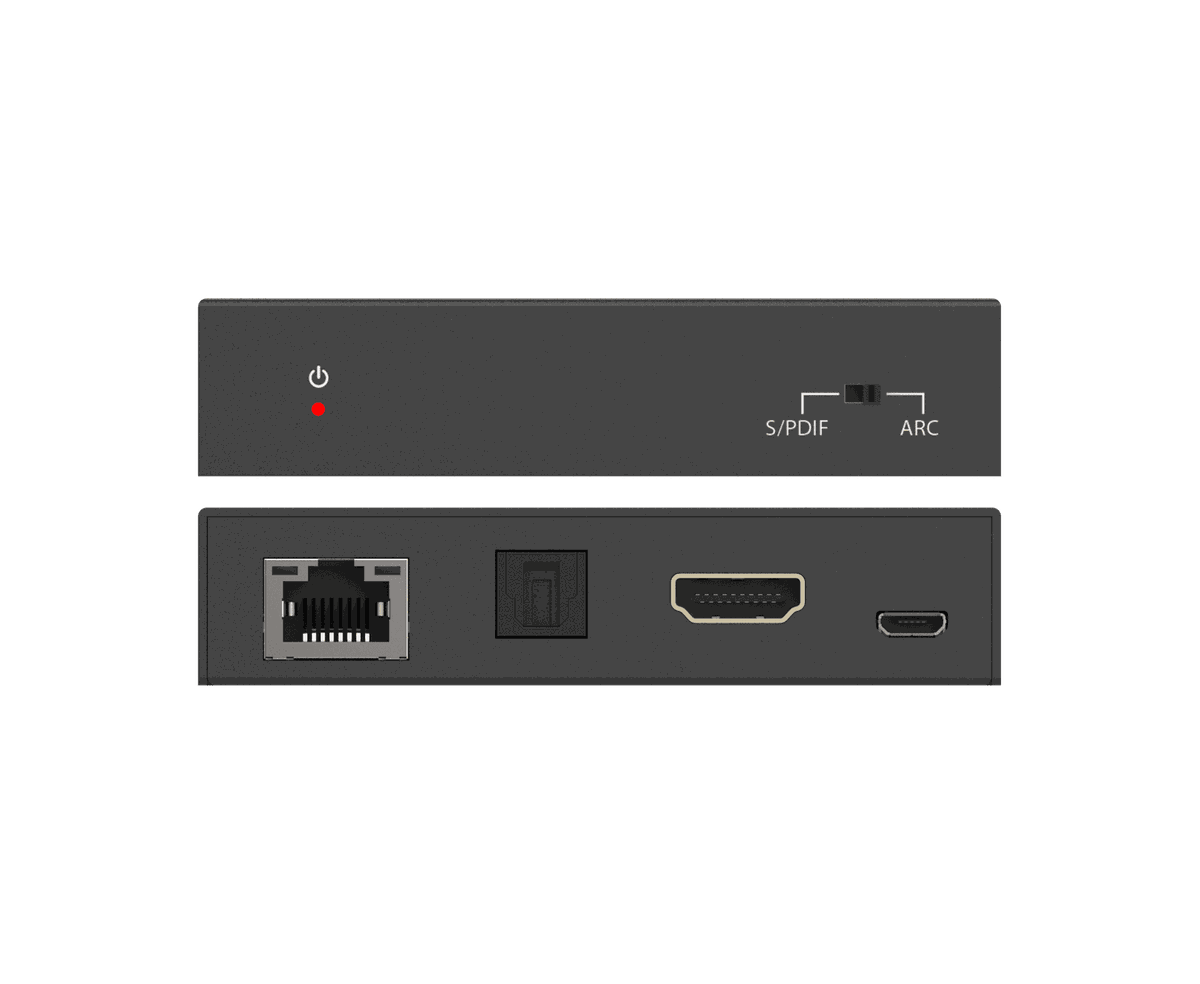

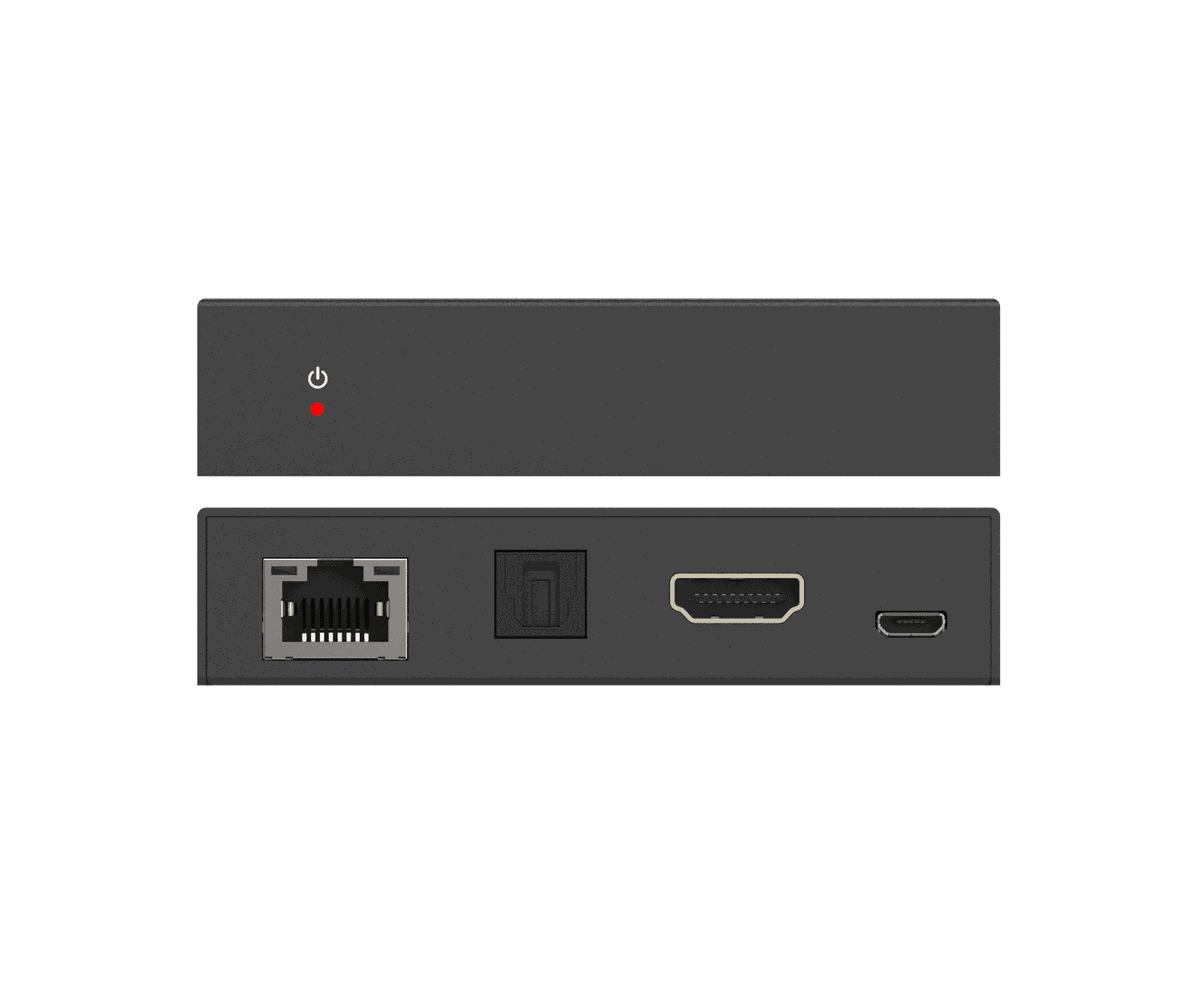

Receiver	Inputs: 1xCAT [RJ45, female] 1 x Micro-USB Outputs: 1 x S/PDIF OUT [Optical Audio Jack] 1 x ARC OUT [HDMI Type A, 19-pin female]
Housing	Metal Enclosure
Dimensions	Transmitter / Receiver: 90mm (W) x 72mm (D) x 20mm (H)
Weight	Transmitter / Recever: 175g
Power Supply	DC 5V/1A
Power Consumption	Transmitter: 0.35W, Receiver: 0.7W
Supported Audio Formats	PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
Transmission Distance and Sample Rates	ARC audio: 150m/495ft - 96kHz, 90m/295ft - 192kHz S/PDIF audio: 150m/495ft - 96kHz
