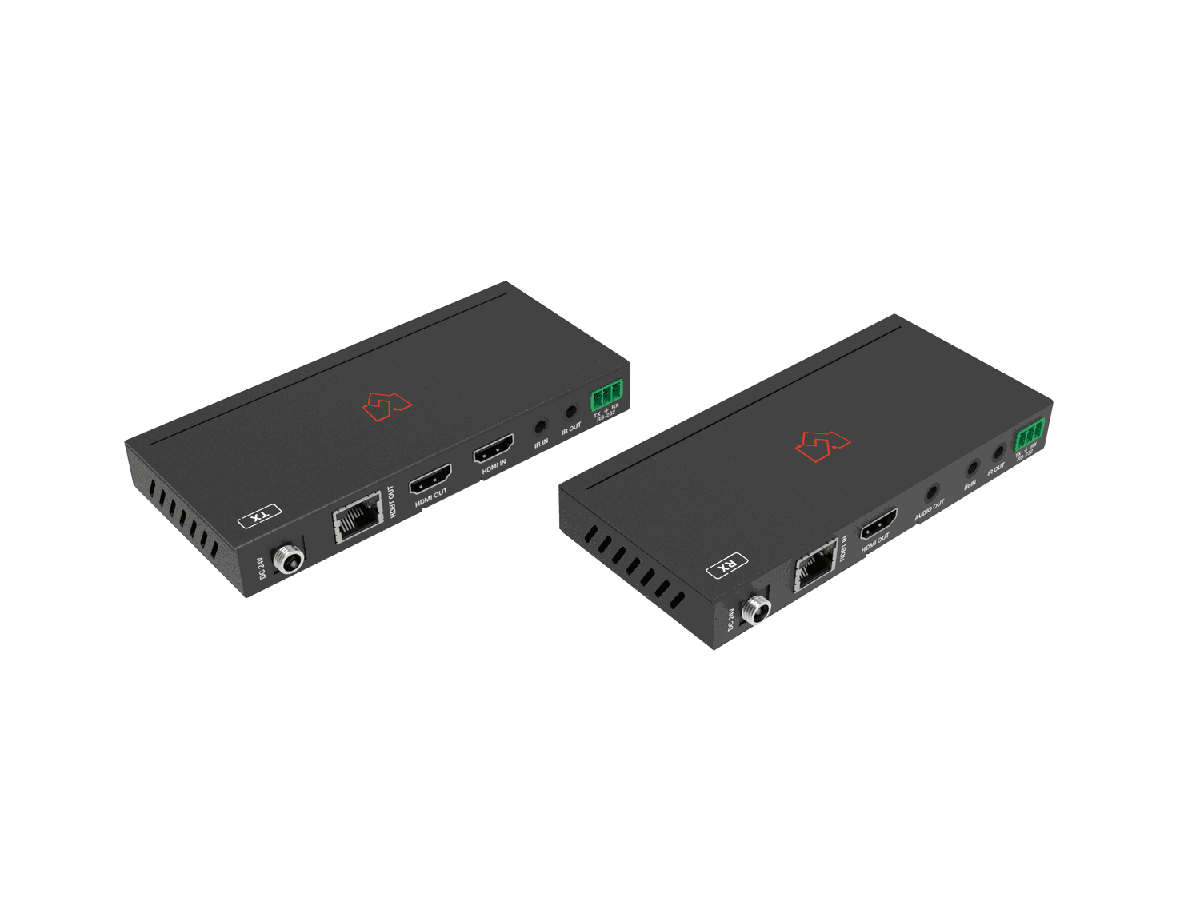

VigilLink VLEX-HT2150-TR HDBaseT 2.0 HDMI Extender, 150m

The VLEX-HT2150-TR takes 18Gbps HDMI 492 feet (150 meters) over a single Cat5e/6 cable at full 4K@60Hz 4:4:4, with HDR, HDR10, HDR10+, and Dolby Vision passing through untouched. That distance covers most auditorium, warehouse, and campus runs without a repeater.

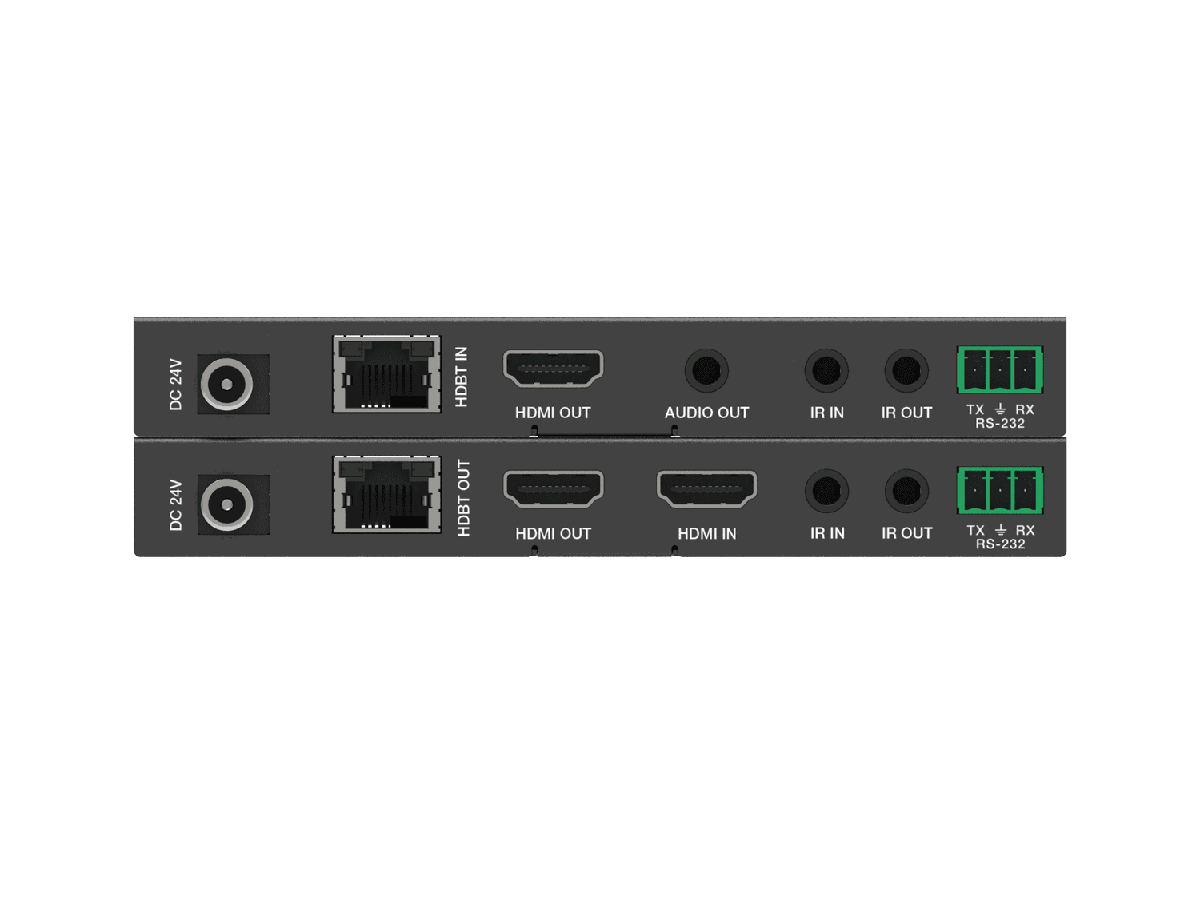

An HDMI loop-out on the transmitter feeds a local confidence monitor at the rack. RS-232 supports control system integration and bidirectional IR handles source and display commands from either end. Audio formats include LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio.

HDCP Compliance	HDCP 2.2 / HDCP 1.4
Video Bandwidth	18Gbps
Video Resolution	4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions, including 1920 x 1200
HDMI IN / OUT	16ft / 5M
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats	PCM 2.0
Color Space	RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 )
