VigilLink VLEX-HT2150U-TR HDBaseT 2.0 HDMI Extender with USB, 150m

The VLEX-HT2150U-TR sends uncompressed HDMI, USB, and control down a single Cat6 cable to 492 feet (150 meters), at full 18Gbps and 4K@60Hz (YUV 4:4:4). HDR, HDR10, HDR10+, and Dolby Vision pass through without processing.

USB 2.0 transmission handles a keyboard, mouse, or touch panel at the far end, and bidirectional IR pass-through controls either the source or the display. Audio support covers LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio.

HDMI Compliance	HDMI 2.0b
USB Compliance	USB 2.0
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 4K2K@60Hz YUV 4:4:4

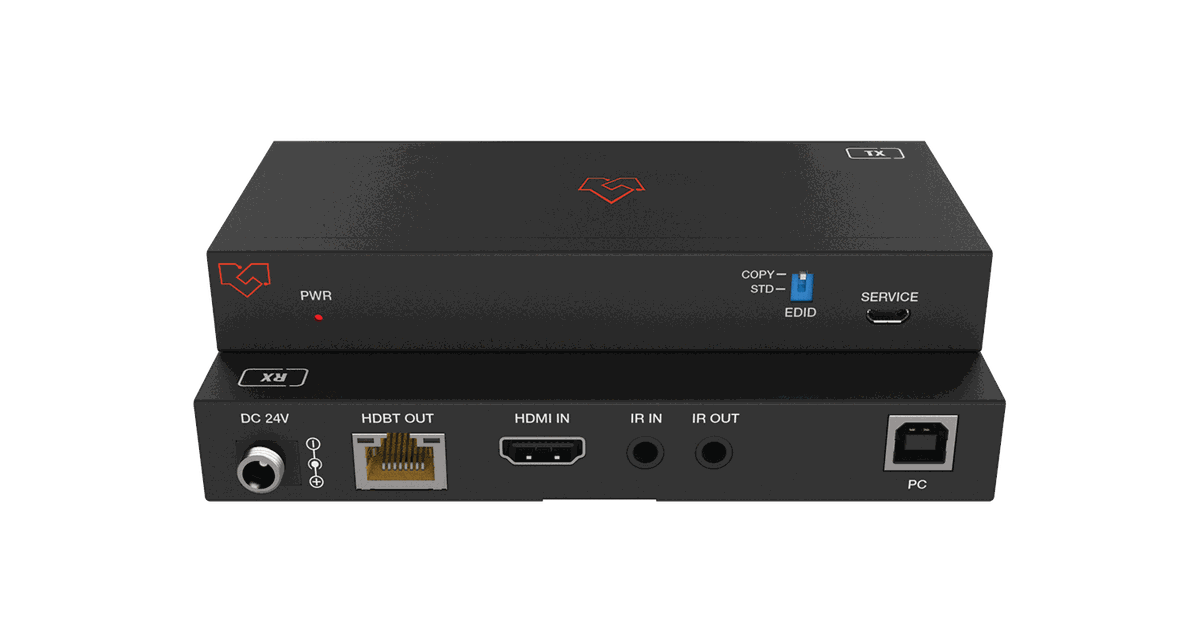

Transmitter	Input: 1x HDMI IN [Type A, 19-pin female] 1x IR IN [3.5mm Stereo Mini-jack] 1x SERVICE [Micro-USB jack] 1x USB [USB-B, 4-pin female] Output: 1xHDBT OUT [RJ45] 1xIR OUT [3.5mm Stereo Mini jack]
Transmission Distance	1080P@60--150m, 4K60 --120m
Audio Format	LPCM 7.1CH, Dolby True HD, and DTS-HD Master
