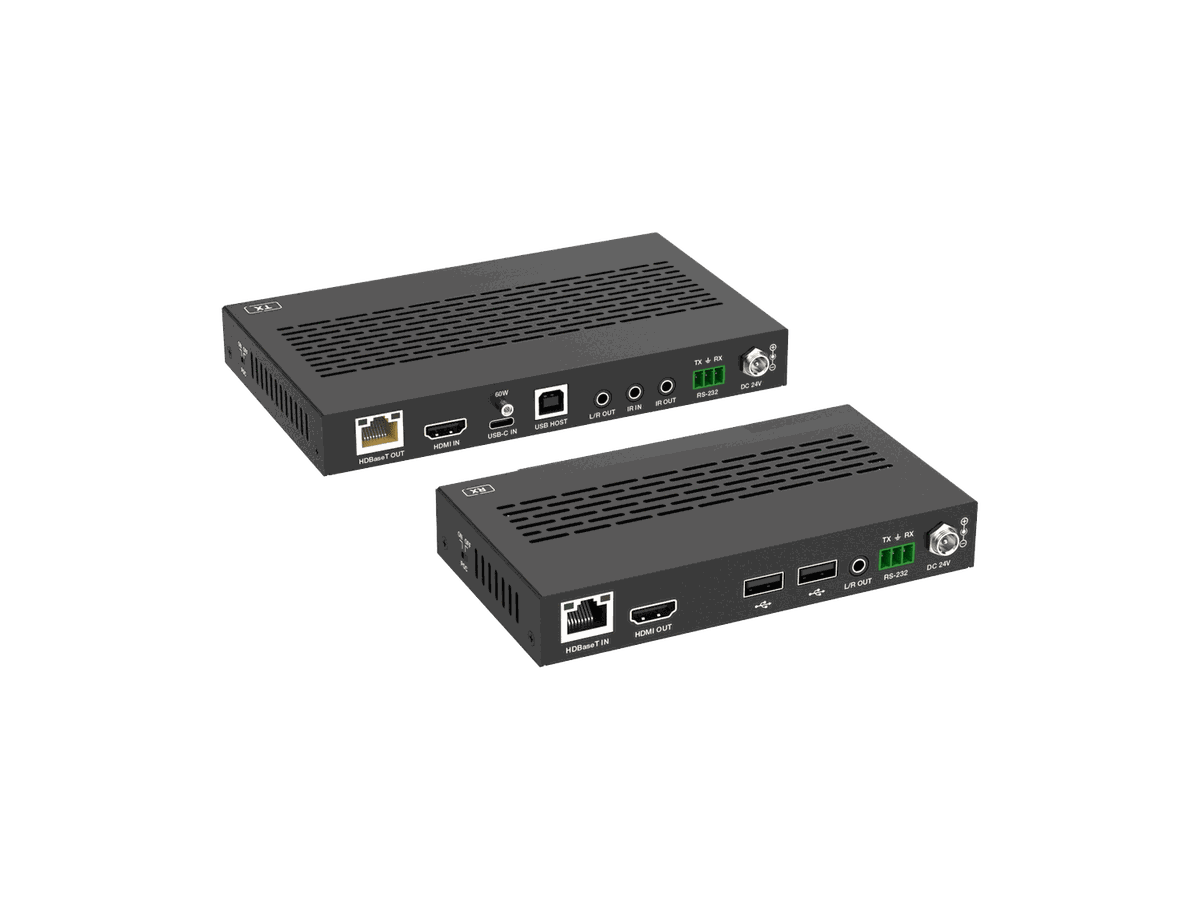

VigilLink VLEX-HT3070CU HDBaseT 3.0 USB-C and HDMI Extender with USB, 70m

The VLEX-HT3070CU extends HDMI and USB-C video along with USB 2.0, RS-232, and bidirectional IR over one Cat6A/7 cable. It reaches 230 feet (70 meters) at 4K30 or 1080p and 131 feet (40 meters) at 4K60 (YUV 4:4:4), built on the HDBaseT 3.0 VS300R chipset.

The transmitter carries one HDMI input, one USB-C input with 60W charging, one USB host port, and three USB device ports; the receiver has one HDMI output and two USB device ports. Both ends include a 3.5mm analog audio connection, and the link is HDMI 2.0b and HDCP 2.3 compliant at 18Gbps.

HDMI Compliance	HDMI 2.0b
USB Compliance	USB 2.0
Video Bandwidth	18Gbps
Video Resolution	Up to 4K@60Hz 4:4:4
Transmission Distance	4K60: 131ft/40m (CAT6A/7) 4K30/1080P: 230ft/70m (CAT6A/7)
Audio Formats	HDMI/USB-C/HDBT: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD 3.5mm Analog Audio: LPCM 2CH
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
