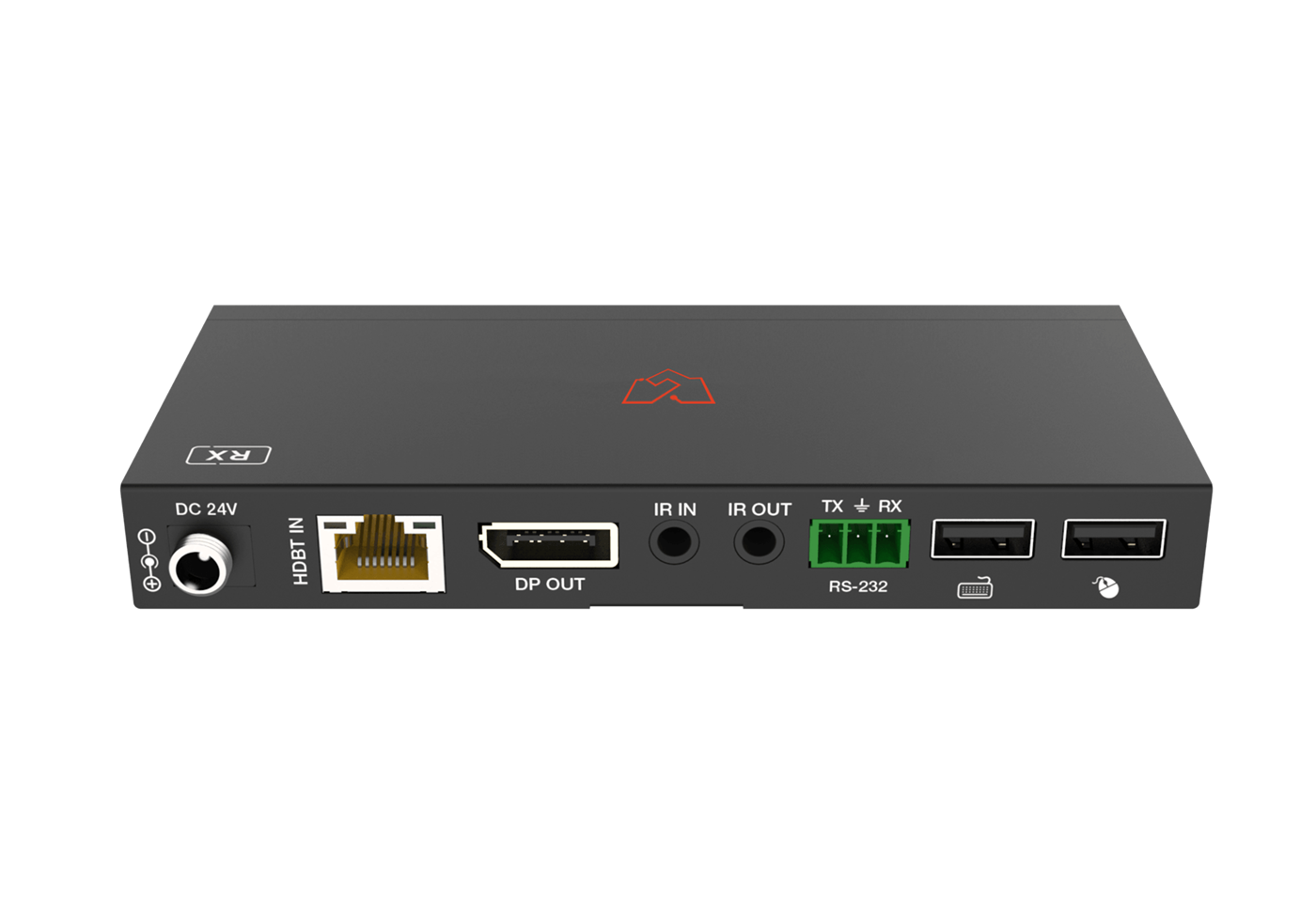

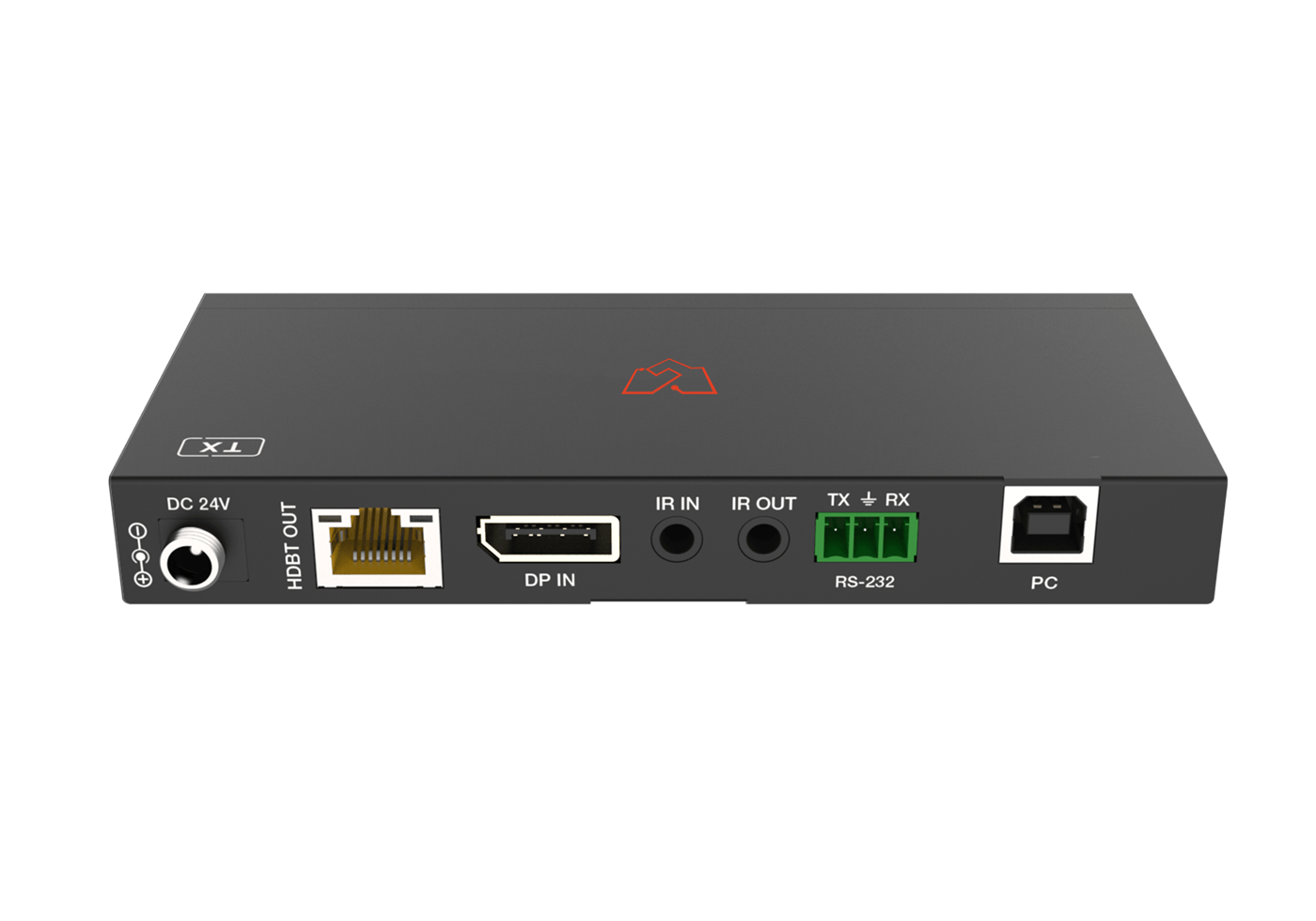

VigilLink VLEX-HT2150DPK-TR HDBaseT 2.0 DisplayPort Extender with KVM, 150m

The VLEX-HT2150DPK-TR is the DisplayPort member of the HDBaseT extender line, carrying visually lossless 4K@60Hz to 328 feet (100 meters) and 1080p to 492 feet (150 meters) on one Cat6 cable. It suits workstation and control room sources that output DisplayPort natively rather than HDMI.

Alongside 21.6Gbps of video it transmits bidirectional IR, bidirectional RS-232, and USB KVM, so an operator at the display end drives the machine at the source end. The extender is DisplayPort 1.2a and HDCP 2.2 compliant.

USB Compliance	USB 1.1
HDCP Compliance	HDCP 2.2
Video Bandwidth	21.6Gbps
Video Resolution	Up to 4K@60Hz YUV 4:4:4
Transmission Distance	1080P@60--492ft/150m, 4K60--328ft/100m
Color Space	RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth	8/10/12bit
Housing	Metal Enclosure
