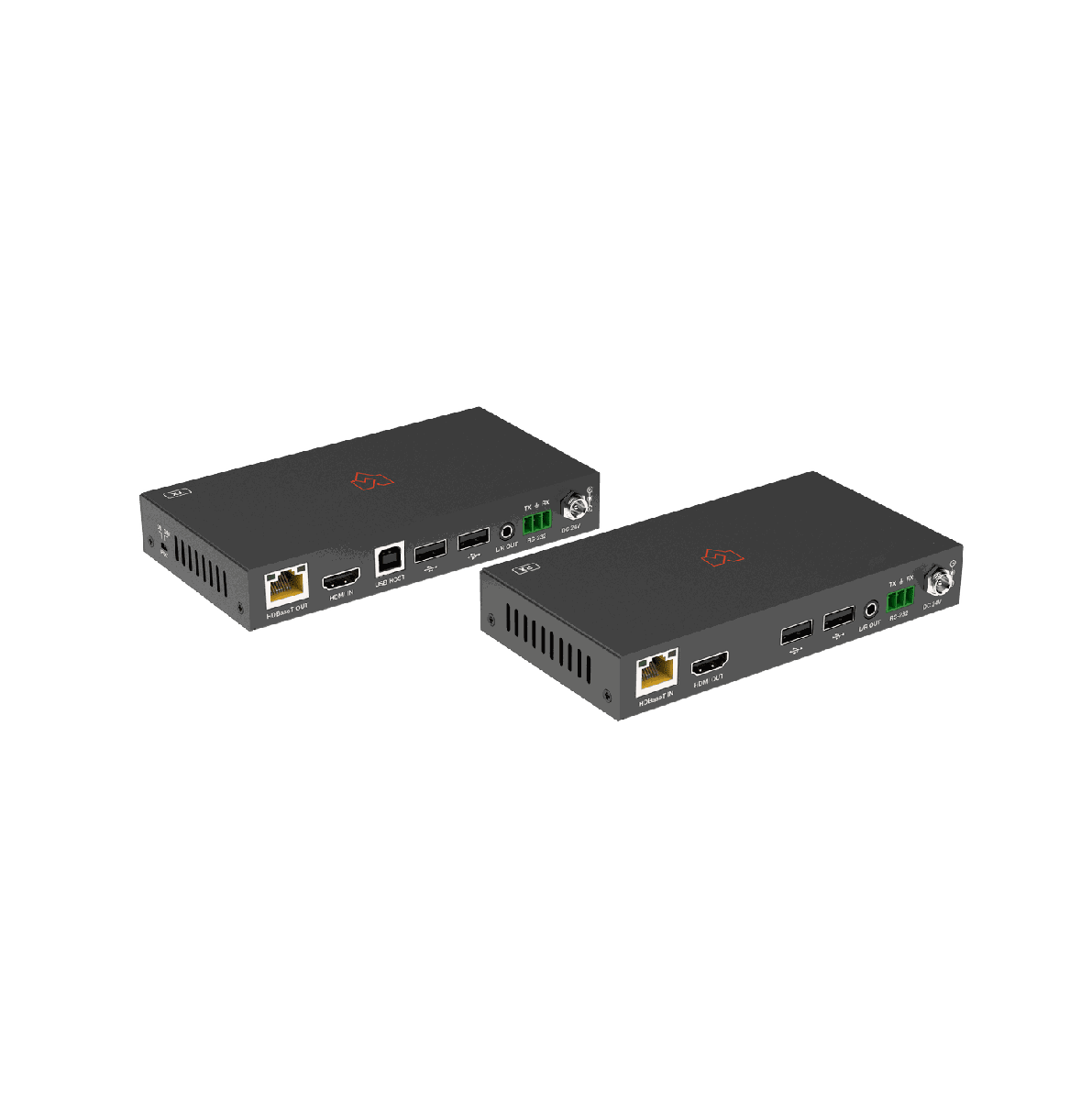

VigilLink VLEX-HT3040U HDBaseT 3.0 HDMI and USB-C Extender with USB, 40m at 4K60

The VLEX-HT3040U carries uncompressed HDMI and USB-C video with USB 2.0, bidirectional IR, and RS-232 over one Cat6A/7 cable. Reach is 230 feet (70 meters) at 4K30 or 1080p and 131 feet (40 meters) at 4K60 (YUV 4:4:4), with no compression in the path.

The transmitter offers one HDMI input, one USB-C input with 60W charging, one USB host port, and three USB device ports, so a laptop connects with a single cable and stays charged. The receiver provides the HDMI output and its own USB device ports for far-end peripherals.

HDMI Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 4K@60Hz
Transmission Distance	4K60 / 40m; 4K30 / 70m; 1080P / 70m (CAT6/6A cable)
Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
