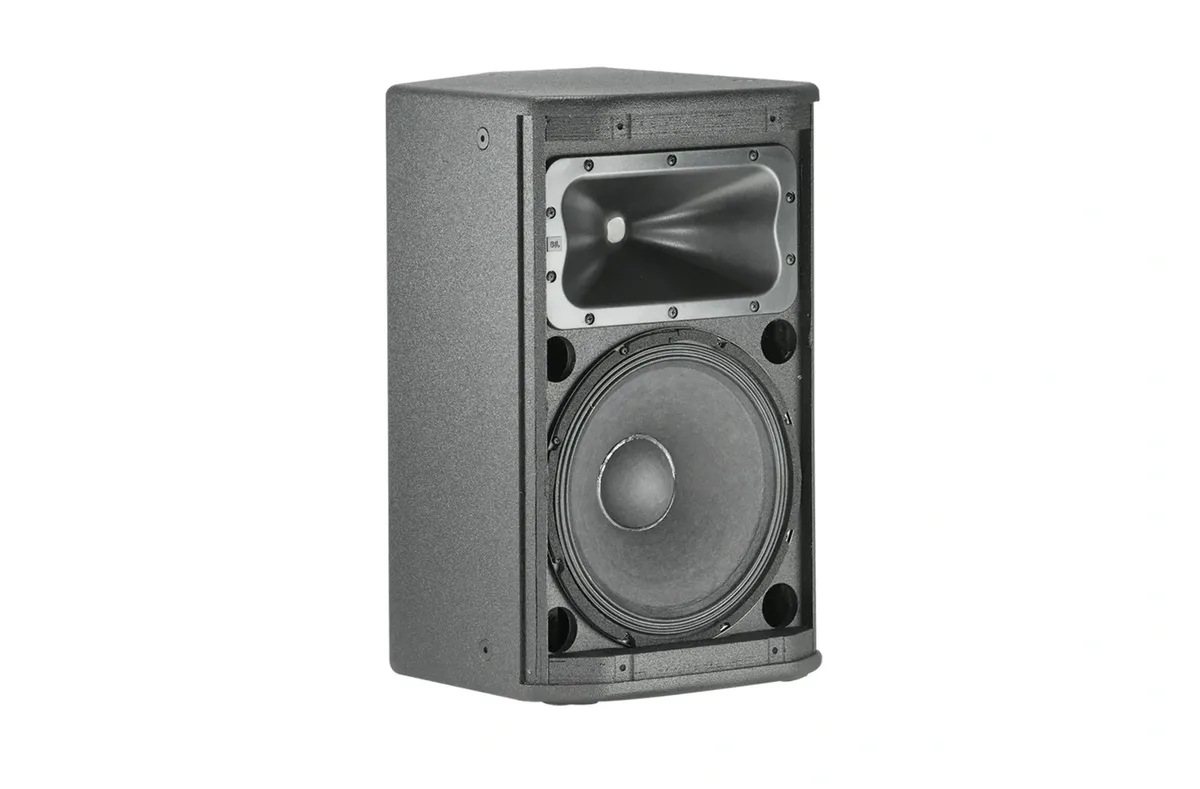

JBL PRX412M 12-inch two-way passive loudspeaker / stage monitor

The PRX412M is a passive twelve-inch two-way cabinet cut for double duty: stand it on a pole as a main, or lay it on its wedge angle as a floor monitor. Coverage is 90 by 50 degrees nominal, sensitivity is 95 dB at 1 W / 1 m, and it is rated 300 W continuous into 8 ohms. It needs an external amplifier.

The enclosure is DuraFlex-coated plywood behind a 16-gauge screen-backed steel grille, with a dual-angle pole socket and twelve M10 suspension points for light installation work. SonicGuard protects the compression driver from excess power without muting the box mid-show. Connection is on parallel Neutrik Speakon NL-2 / quarter-inch combo jacks.

Type	12-inch two-way passive loudspeaker / stage monitor
Nominal impedance	8 ohms
Power rating (continuous / program / peak)	300 W / 600 W / 1200 W pink noise
Maximum SPL (1 m)	126 dB SPL peak
System sensitivity	95 dB SPL (1 W @ 1 m)
Frequency range (-10 dB)	50 Hz - 20 kHz
Frequency response (+/-3 dB)	62 Hz - 19 kHz
Coverage pattern	90 x 50 degrees nominal
Inputs	Parallel Neutrik Speakon NL-2 / quarter-inch combo jacks
Enclosure	DuraFlex-coated plywood, 16-gauge steel grille
Mounting	Dual-angle pole socket; 12 M10 suspension points
Dimensions (H x W x D)	574 x 353 x 399 mm (22.6 x 13.9 x 15.7 in)
Net weight	16 kg (35 lb)
