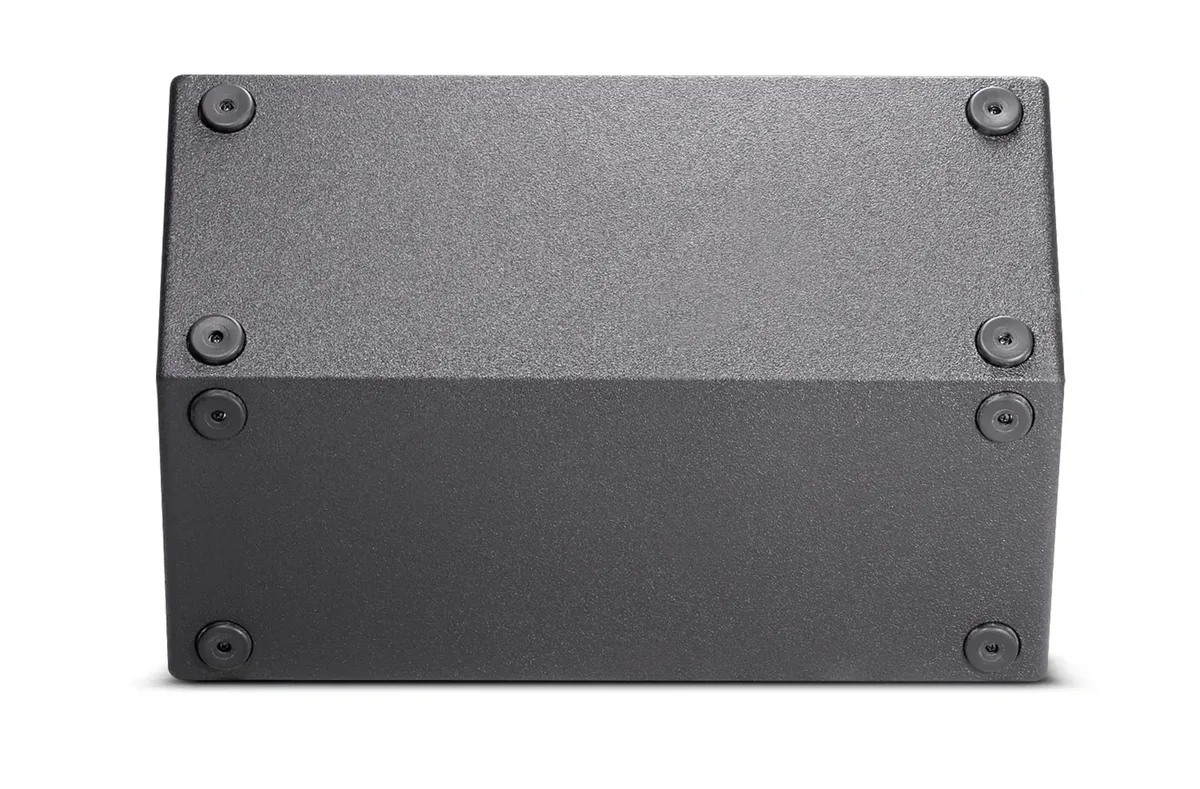

JBL Professional JBL VRX915M Passive 15-inch two-way stage monitor

The VRX915M is a low-profile fifteen-inch wedge built to stay out of the audience sightline - 14.75 inches of stage height. A 2265H neodymium Differential Drive woofer and a 2453H-SL compression driver with a 4-inch voice coil cross at 1.1 kHz, giving 50 by 90 degree nominal coverage and 127 dB continuous.

It can be run full-range passive or bi-amped, switched externally, and JBL publishes active tunings for the usual processors. Two Neutrik Speakon NL-4 connectors sit one at each end of the symmetrical cabinet, which is 15/18 mm plywood in black DuraFlex. An external amplifier is required.

Type	Passive 15-inch two-way stage monitor
Nominal impedance	8 ohms
Power rating (continuous / program / peak)	800 W / 1600 W / 3200 W
Maximum SPL (1 m)	127 dB continuous, 133 dB peak
Sensitivity	98 dB SPL
Frequency range (-10 dB)	60 Hz - 20 kHz
Coverage pattern (-6 dB)	50 x 90 degrees nominal
Crossover	1.1 kHz; passive or bi-amp, externally switchable
LF driver	1 x JBL 2265H 380 mm (15-inch) Differential Drive woofer
HF driver	1 x JBL 2453H-SL 38 mm exit compression driver, 100 mm voice coil
Inputs	2 x Neutrik Speakon NL-4, one at each end
Enclosure	15/18 mm plywood, black DuraFlex finish
Dimensions (H x W x D)	629 x 432 x 324 mm (24.75 x 17 x 12.75 in); 14.75 in stage height
Net weight (each)	21 kg (46 lb)
